COMBICONTROL

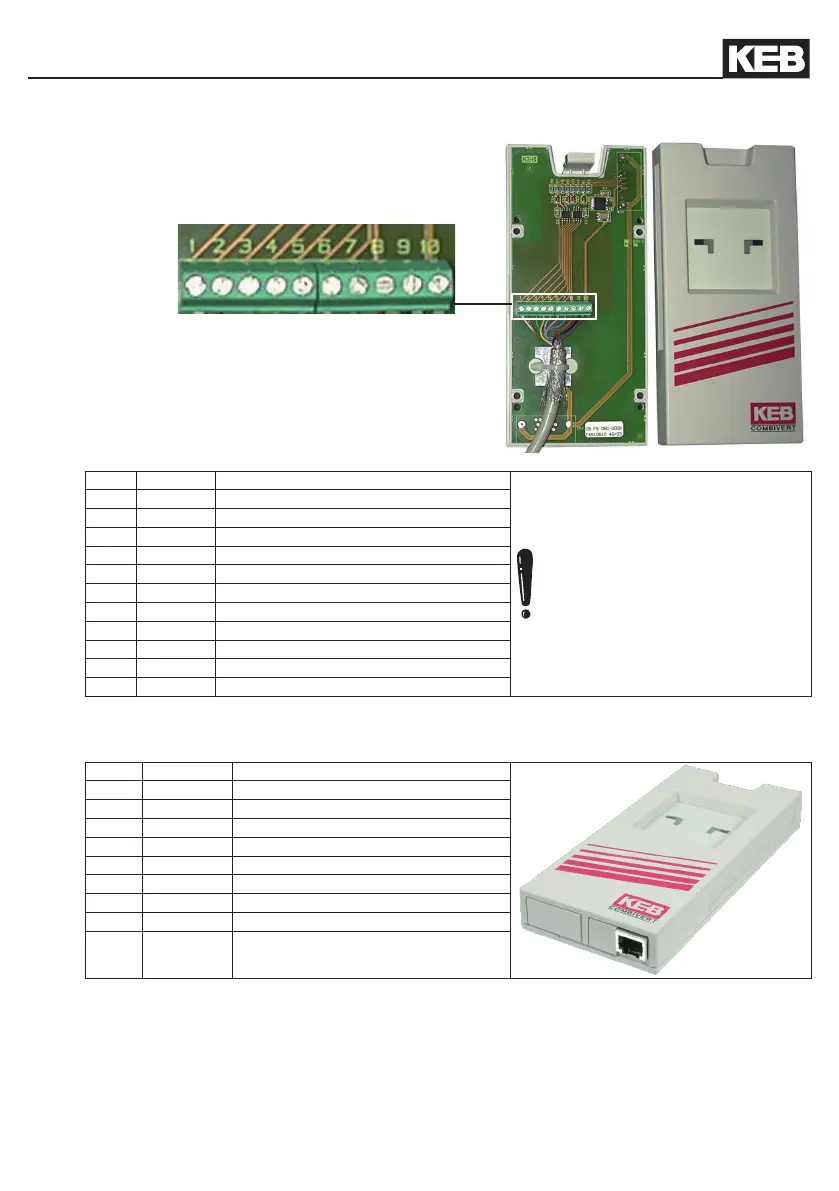

2.2.3 HSP5 Operator with screw terminal (00F5060-9001)
X6E Name Description
No cables may be connected
to terminal VCC. High voltage
can destroy the interface in the
control.
1 TXD- Transmission signal-
2 TXD+ Transmission signal+
3 RXD- Receive signal-
4 RXD+ Receive signal+
5 EnTXD- Handshake transmission signal-
6 EnTXD+ Handshake transmission signal+
7 EnRxD- Handshake receive signal-
8 EnRxD+ Handshake receive signal+
9 GND Reference potential
10 VCC +24 V voltage output
- Shielding Shielding (see gure)
2.2.4 HSP5 Operator with RJ45 socket (00F5060-9002)
RJ45 Name Description
1 RXD+ Receive signal+
2 RXD- Receive signal-
3 GND Reference potential
4 TXD+ Transmission signal+
5 TXD- Transmission signal-
6 GND Reference potential
7 EnRxD+ Handshake receive signal+
8 EnRxD- Handshake receive signal-
- Shielding Shielding
The connection to the control is realized with a commercial CAT5 Patch cable for this ope-
rator.
