9
150 mm
30 mm
100 mm
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNIK
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNIK

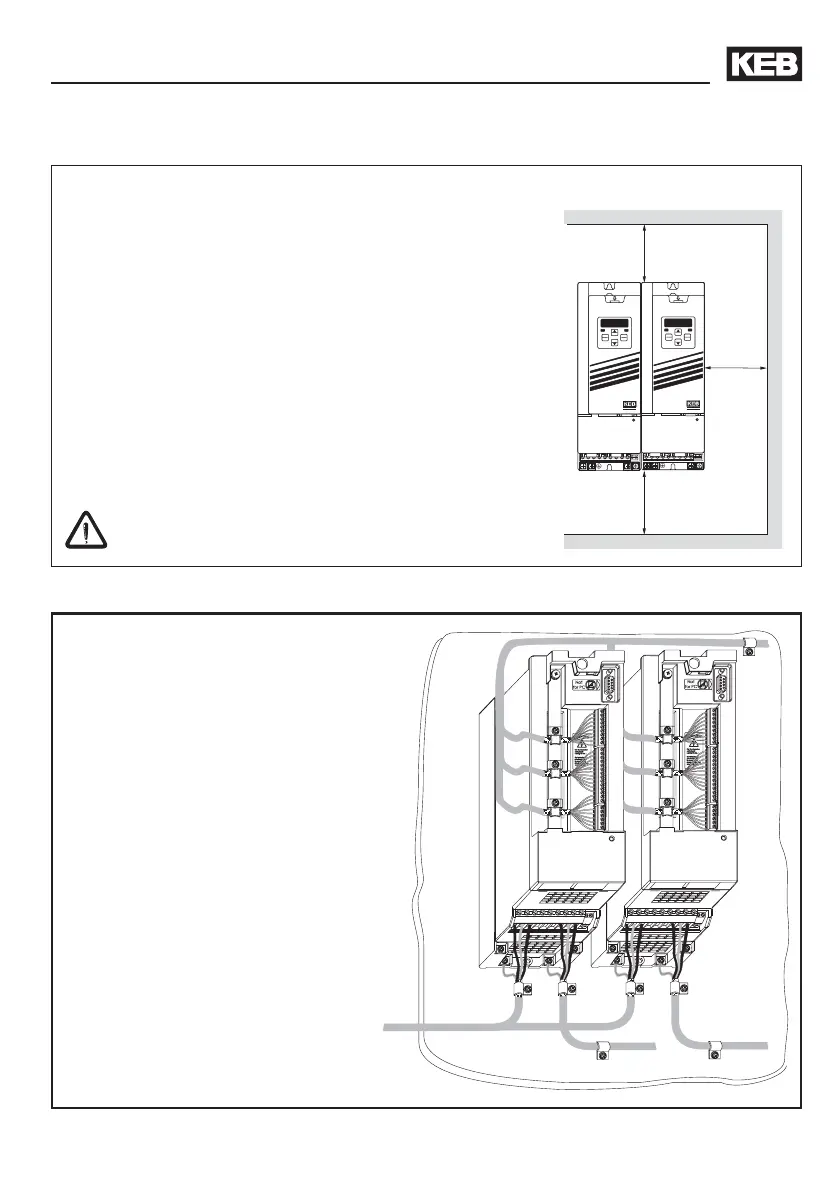

3. Installation and Connection
3.1 Control cabinet installation
3.2 EMC-conform Installation
Installation position and min.
distances
Installation and Connection
Protective system (EN 60529): IP20
Operation temperature: -10...45 °C (14...113 °F)
Storage temperature: -25...70 °C (-13...158 °F)
max. heat sink temperature: 90 °C (194 °F)
Climatic category (EN 60721-3-3): 3K3
Environment (IEC 664-1): Pollution degree 2
Vibration/Jolt according to: German. Lloyd; EN50155
The flat-rear design requires cooling measures by the
machine builder. This can be in the best case no further
measure at all (e.g. at cyclic operation with down times)
up to the dissipation of the entire, indicated heat loss at
rated operation.
Protect the COMBIVERT against aggressive gases
and aerosols !
• Always apply the shielding of motor
and control cables over a large
contact surface on both sides.
• Distance between control and power
cables at least 10..20 cm (4...8 inch).
• Lay motor and power cable
separately.
• If it cannot be avoided, cross control
and power cables in a right angle.
• Install all cables as close as possible
to the mounting plate - ideal in a metal
cable duct.
• Mount COMBIVERT well conducting
with the mounting plate. Remove the
paint beforehand.
You can find further instructions
regarding the EMC-conform wiring in
the Internet at KEB.
