5.1.2 Mounting
Mount the Brake Transistor Monitor into the F5 elevator drive control cabinet, ensuring
the monitor is mounted an appropriate distance from any other control elements as
shown in the following table.
Mounting Distance Dimension Distance (mm) Distance (inch)
A 150 6
B 50 2
C 30 1.2
D 0 0
X* 50 2
* Distance to preceeding elements in the control
cabinet door

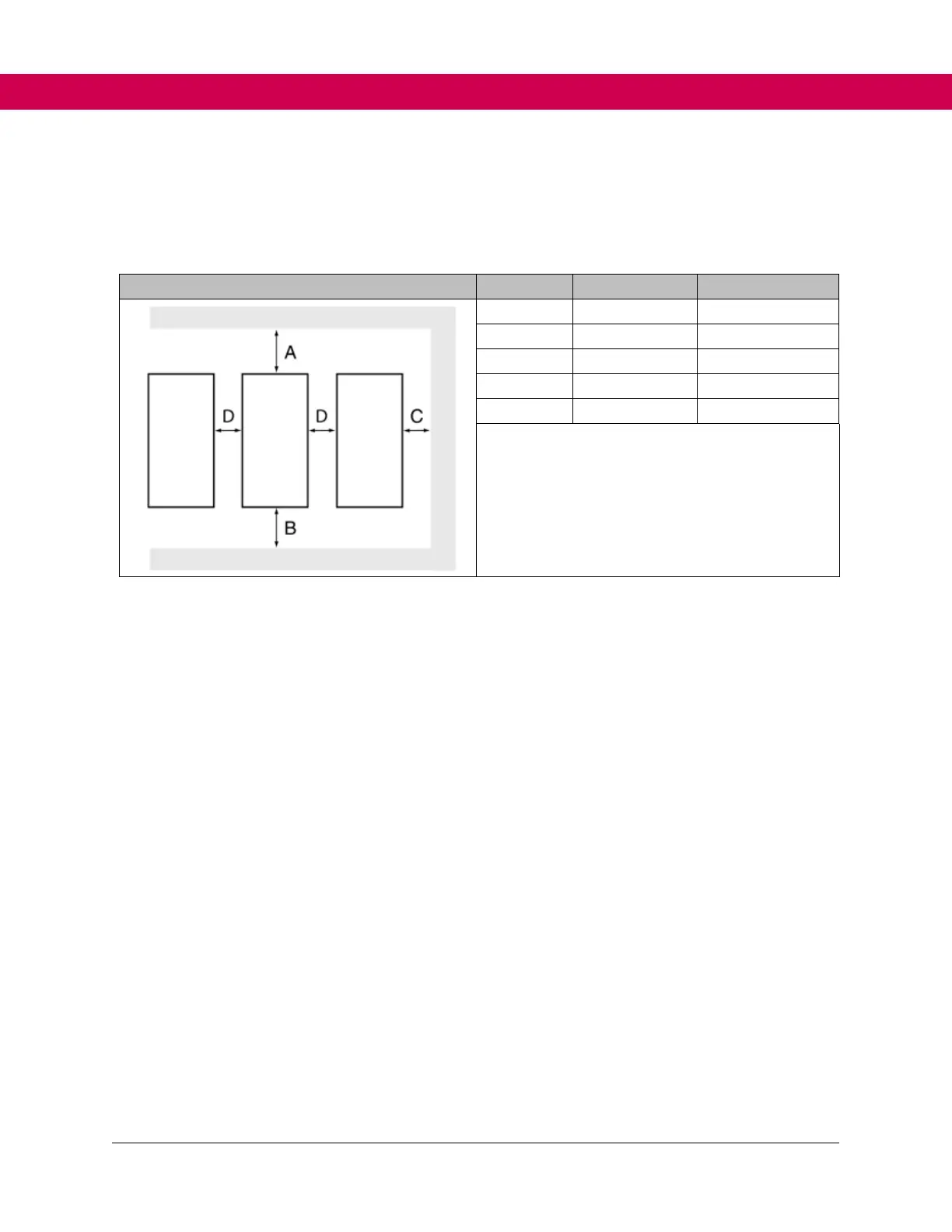

Figure 2: Mounting Dimensions

KEB COMBIVERT F5 Specifications

General

Category	DC Drives
Enclosure Rating	IP20
Control Mode	Vector Control, V/f Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Fieldbus Communication	PROFIBUS, CANopen
Communication Interfaces	RS-485
Input Voltage	380-480V AC
Cooling Method	Forced air cooling (fan)
