GB - 13
Mechanical Installation

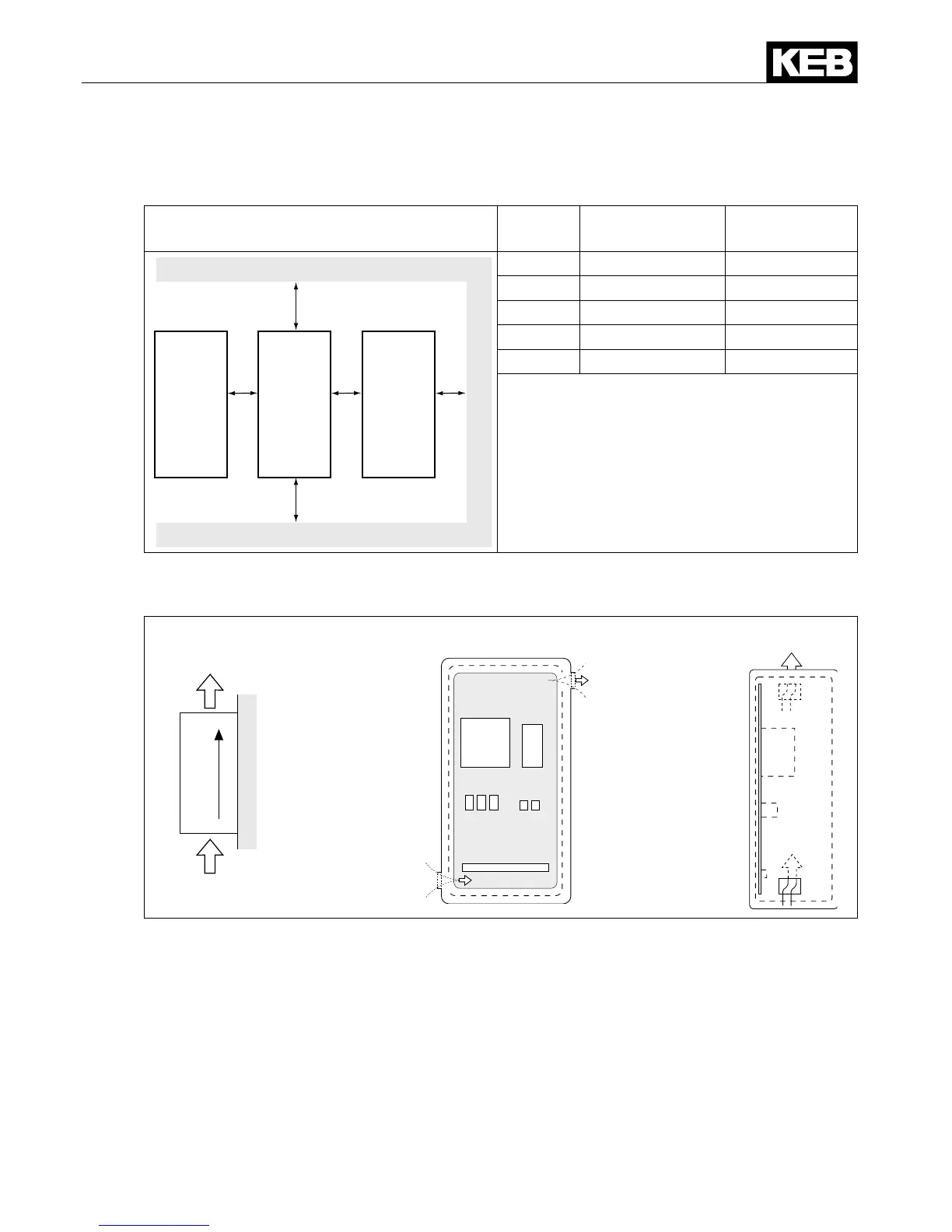

2.3.3 Control cabinet installation
The power loss for the control cabinet dimension is to be taken from the technical data.
Mounting distances Dimensi-
on
Distance in mm Distance in
inch
C
A
B
DD
A 150 6
B 100 4
C 30 1.2
D 0 0
X
1)
50 2
1) Distance to preceding elements in the cabinet door.
If construction-conditioned the control cabinet cannot be without indoor ventilation, appropri-
ate 󰘰lters must avoid suction of foreign objects.
Direction of the
air ow
Front and side view of the coolant inlet
Coolant outlet
Coolant inlet
