Connection of the Power Unit
3.2.1.5 Connection at DC voltage supply

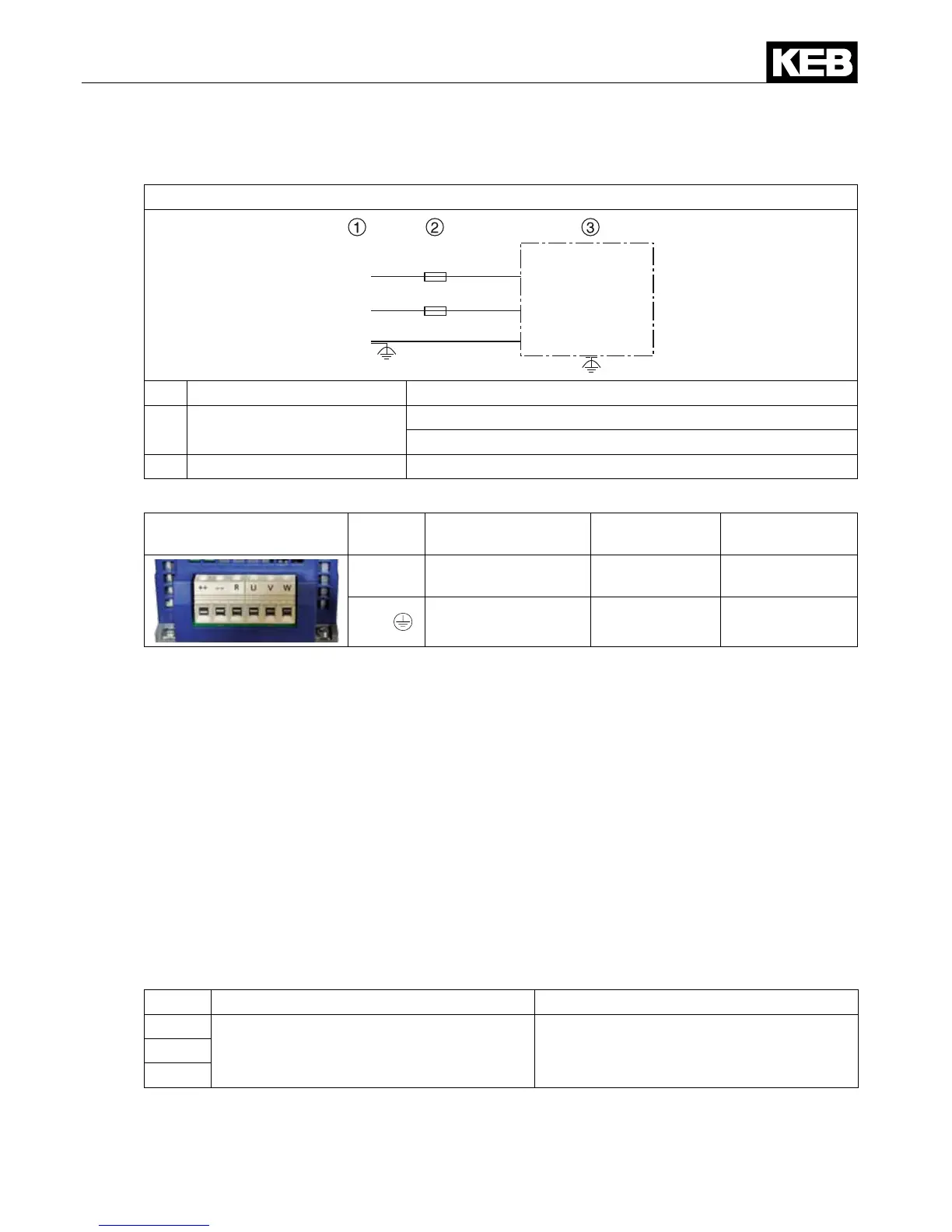

Picture 3.2.1.5 Connection at DC voltage supply
- -
U
V
W
PEPEPE
T1 T2
++
+U
-U
1 Current DC - voltage 420…746 V DC
2 Fuses
Type aR
Pay attention to the permissible voltage range !
3 KEB COMBIVERT G6-C
3.2.1.6 Terminal strip X1B DC connection
X1B Name Function Cross-section Tightening
torque
++, -- DC connection
0.2-16 mm²
AWG 26-6
2.3 Nm
20.5 lb-inch
PE,
Connection for pro-
tective earth
Screw M4 for
ring thimble
1.3 Nm
11 lb inch
3.2.2 Connection of the motor
3.2.2.1 Selection of the motor cable
The correct cabling as well as the motor cable play an important part in case of low power
in connection with long motor line lengths. Ferrite cores and low-capacitance cable (phase/
phase<65 pF/m, phase/screen < 120 pF/m) at the output have the following effects:
• longer motor line lengths
• lower abrasion of the motor bearings by leakage currents
• improved EMC characteristics
3.2.2.2 Motor line length at operation with DC voltage
The maximum motor line length at DC operation is basically dependent on the capacity of
the motor cable. The internal lter is not active at DC operation. External measures must be
taken here, if necessary. The following data apply for operation under nominal rating condi-
tions.
Size Motor cable (standard) Motor cable (low capacitance)
13
100 m 200 m14
15
