KEB G6 - 3 Installation and Connection; Overview of the COMBIVERT G6

GB - 14
Unit Description
3. Installation and Connection

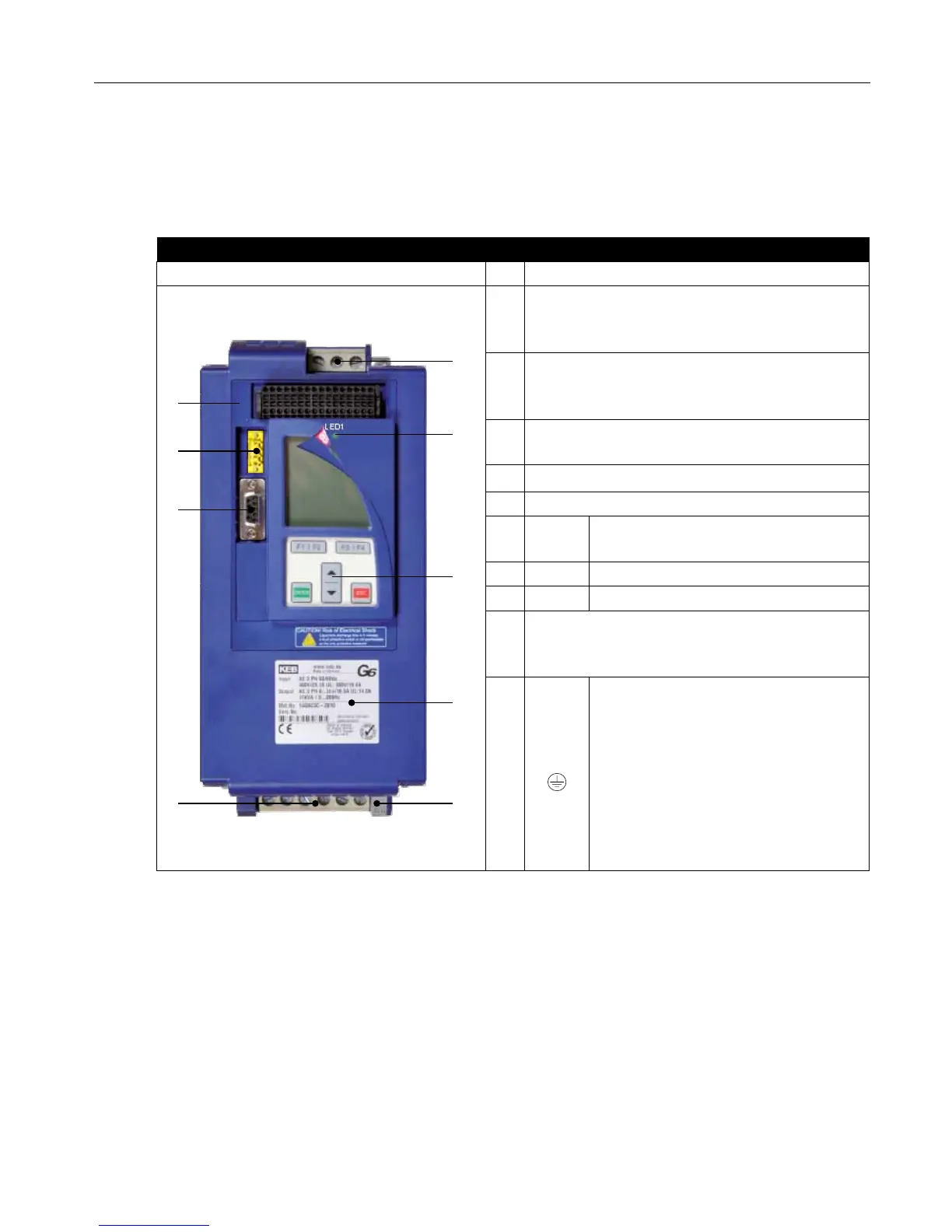

3.1 Overview of the COMBIVERT G6
Overview of the COMBIVERT G6
Size C
No.
Name Description
6
5
4
1
7
9
2
3
8
X4A X2B
X2A
1
X1B
Terminal strip for three-phase
motor , braking resistor and DC
supply
2
X4A
Diagnostic interface
RS232/485 interface with
DIN66019-II
3
X2B
Safety Function STO
(optional)
4
X2A Control terminal strip 32-pole
5
X1A Mains input 3-pole
6
LED1
Inverter state (if without keyboard/
display)
7
– Display/keyboard
8
– Type plate
9
X1C
Temperature monitoring;
Connection for external PTC or
temperature switch
10
PE,
Protective earth;
at connection to protective earth
each terminal may be assigned
only once.
The shielding e.g. from the motor
cable is laid on the mounting plate
in the control cabinet or on the
shield plate (optionally available
E0G6T88-0001).
