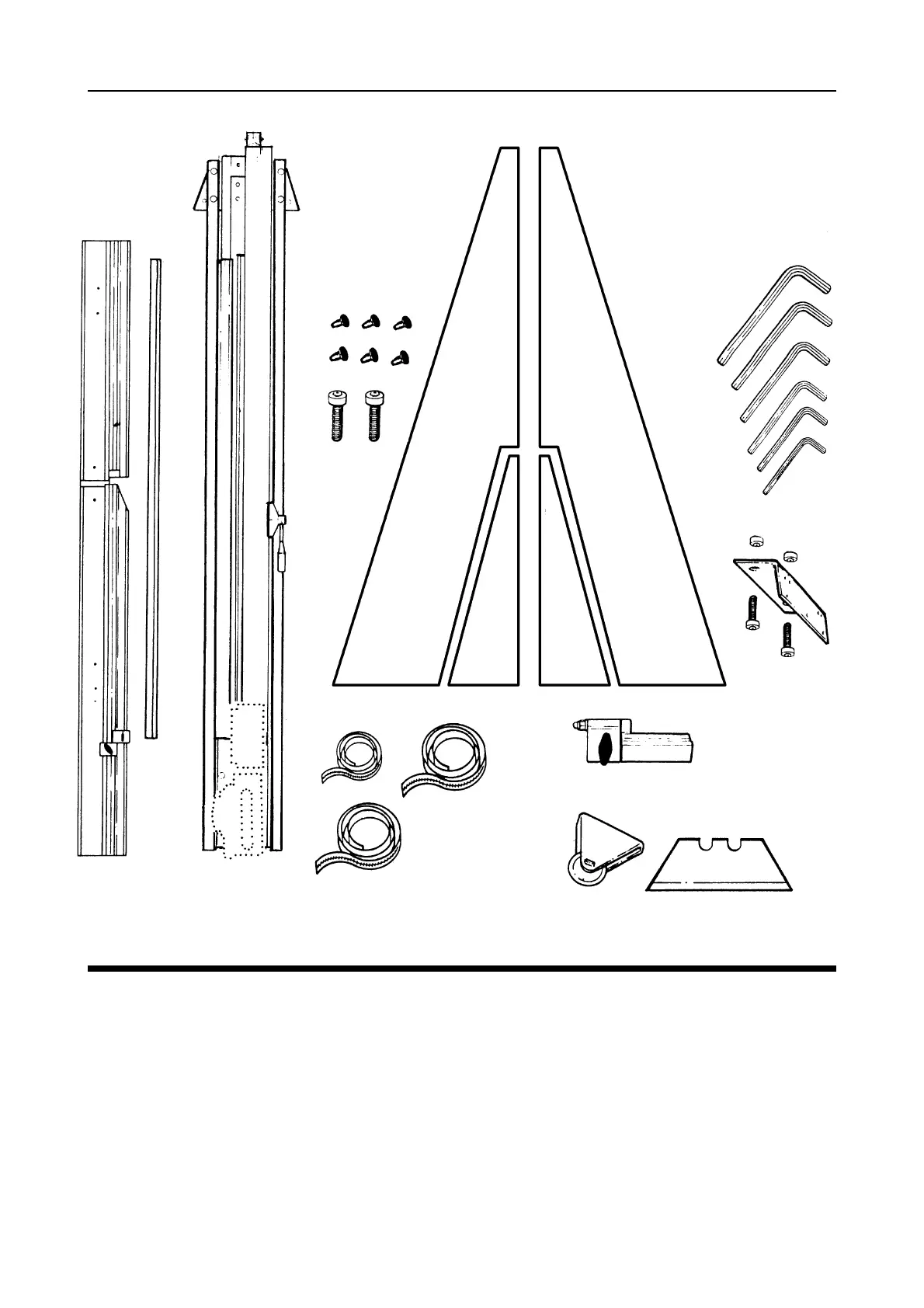

11. M8 screws
12. Hexagon wrenches
2.0, 2.5, 3.0, 4.0, 5.0, 6.0mm
13. Left hand production stop
14. Spare glass cutting wheel
15. Spare blades
*
NOTE: Cutting Head arrangements differ
according to machine type
NOTE: When lifting the main body from the box, DO NOT lift using the black
handles on the cutters.
1. Main body
*
2. Squaring arm
3. Left large back panel
4. Left small back panel
5. Right large back panel
6. Right small back panel
7. Wall mounting bracket
8. Measuring rules
9. Spare sight-line strips
10. Plastic rivets
2.1 Unpacking your Machine 2.1
