26

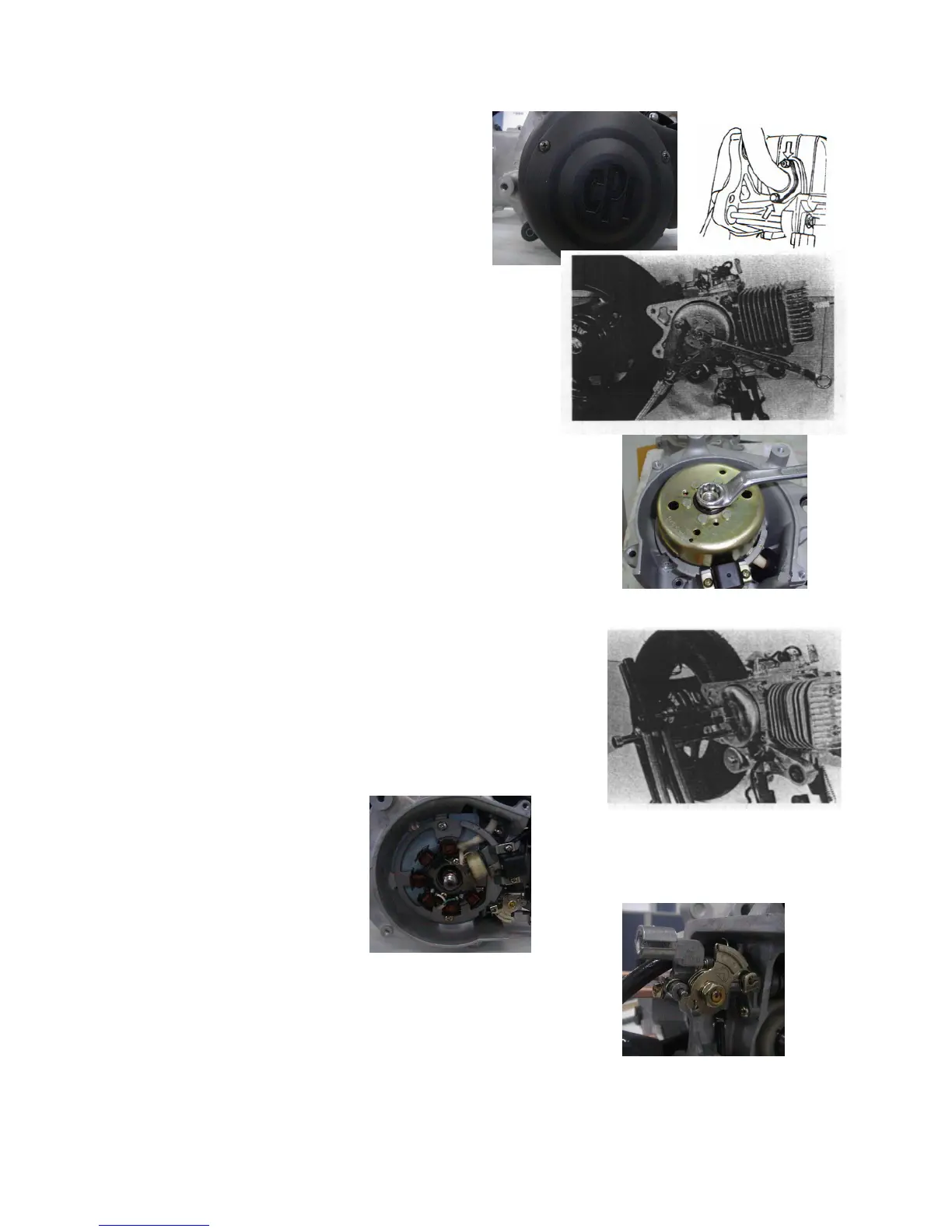

ENGINE ASSY.
Remove the muffler
Remove cooling fan cover
Remove cylinder cover
Remove cooling fan
Remove magneto nut with special tools.
remove magneto rotor and half circle key
with special tools.
remove magneto stator and paper gasket
remove oil pump

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KEEWAY Matrix and is the answer not in the manual?

KEEWAY Matrix Specifications

General IconGeneral
Fuel SystemCarburetor
Front SuspensionTelescopic fork
Front BrakeDisc
Rear BrakeDrum
Front Tire120/70-12
Rear Tire130/70-12
Width700 mm
Cooling SystemAir cooled
TransmissionAutomatic
