89

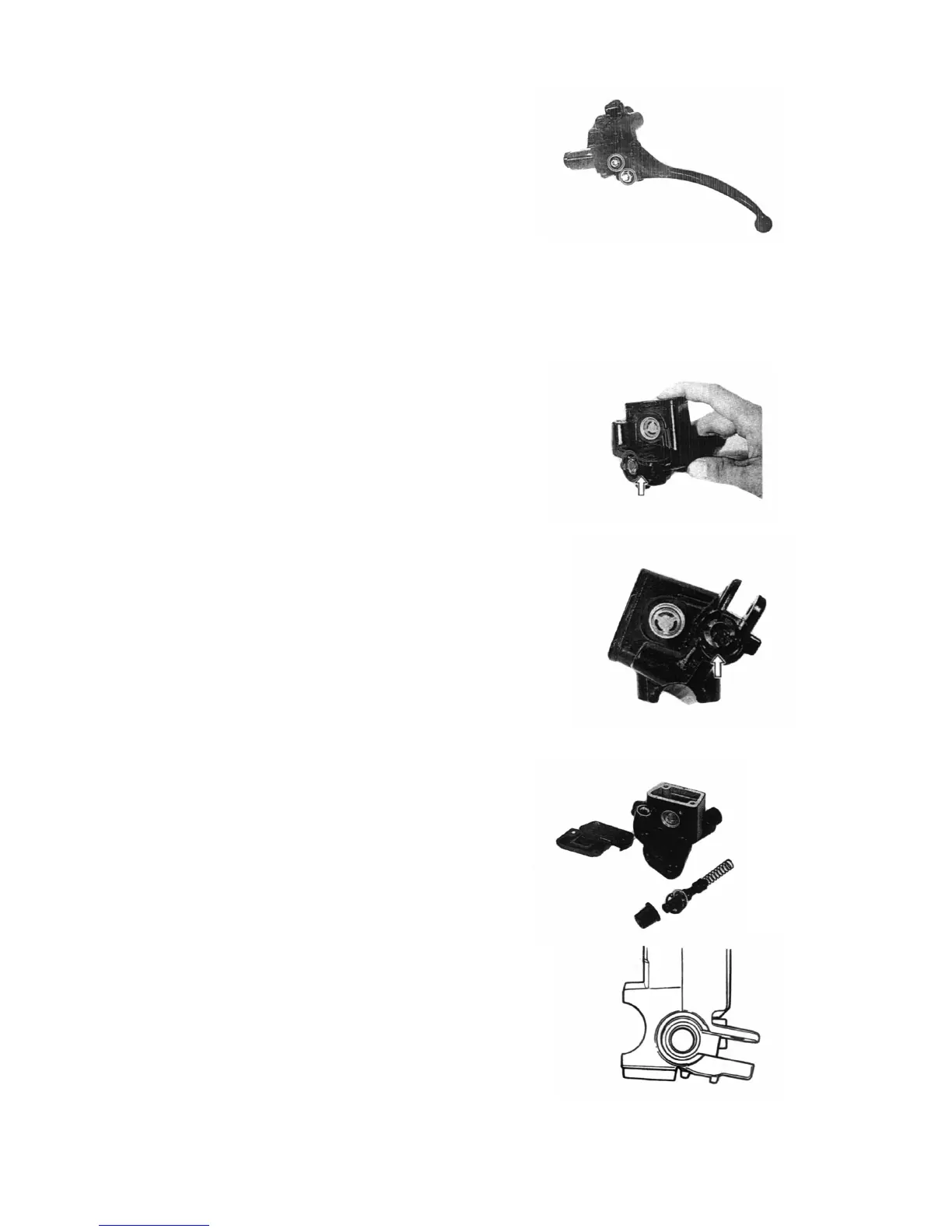

Remove the brake lever and brake switch.
Remove the dust boot.
Remove the circlip with the special tool.
Remove the piston/primary cup with return spring.
Remove the reservoir cap and diaphragn.
Drain brake fluid.
MASTER CYLINDER INSPECTION
Inspect the master cylinder bore for any scratches or other damage.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KEEWAY Matrix and is the answer not in the manual?

KEEWAY Matrix Specifications

General IconGeneral
Fuel SystemCarburetor
Front SuspensionTelescopic fork
Front BrakeDisc
Rear BrakeDrum
Front Tire120/70-12
Rear Tire130/70-12
Width700 mm
Cooling SystemAir cooled
TransmissionAutomatic
