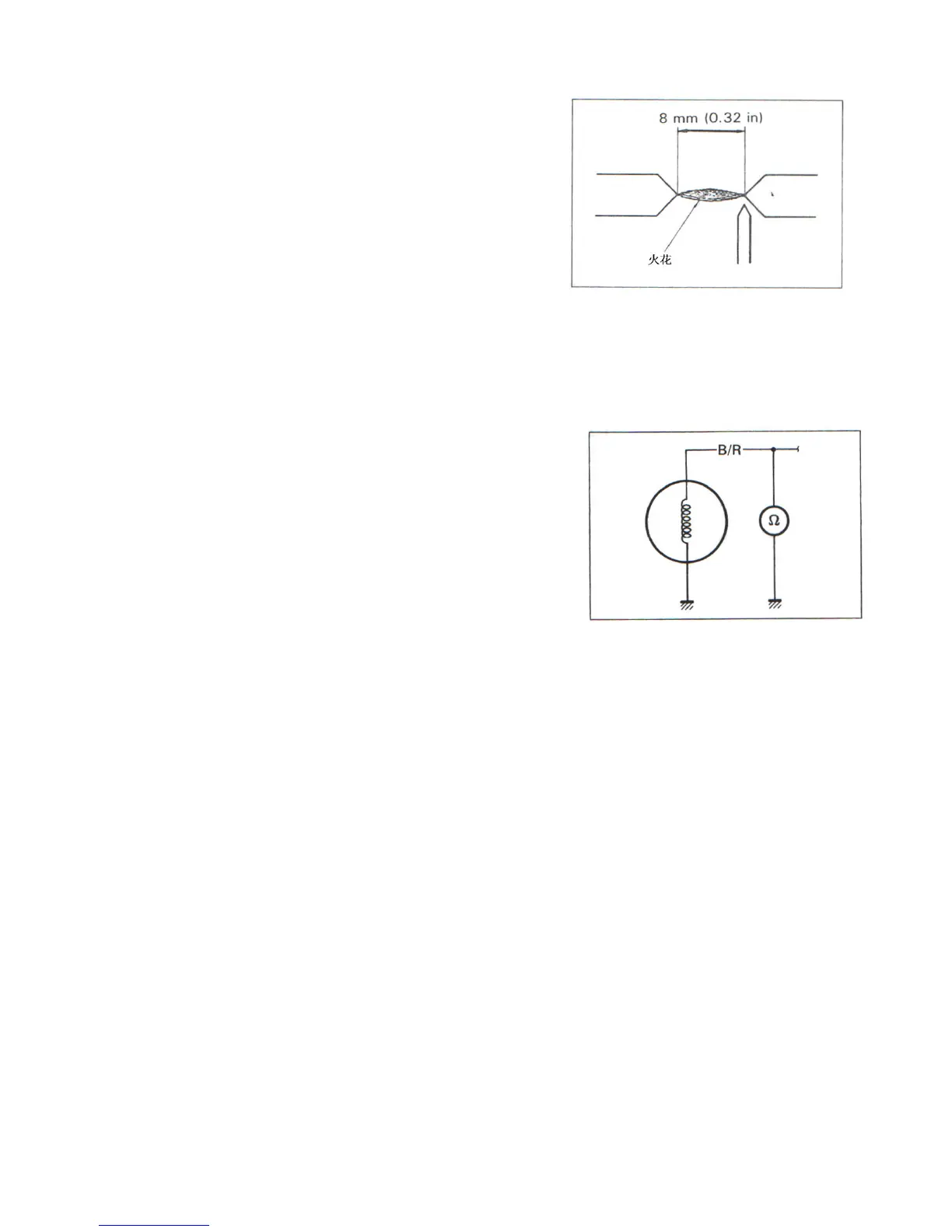

●Note the spark in the spark gap window. It should be
strong and continuous, not intermittent, acrossa preset
8mm(0.32in) gap. Allow the spark to jump the test gap for at
least five minutes continuously. To insure proper operation
under the temperature of actual riding.
Electronic tester
Ignition coil testing lead
Use portable tester to check it.
Test the resistance between igntion ground wire andspark
plug cap.
Ignition coil second resistance：12-18 KQ
MAGNETO EXCITING COIL
remove the right frame side cover
disconnect the exciting coil lead wire(black with red
tracer).
Using a pocket tester, measure the resistance between the
B/R lead wire and ground. If the resistance checked is
incorrect, replace the coil.
Exciting coil restance：
：：
：140-220
