CHARGING AND LIGHTING SYSTEM
The charging system uses the flywheel magnetoas shown in the
figure. The charging and lighting coils are mounted on the
magneto stator and generate AC as the flywheel rotor turns. AC
generated in the charging coil flows to the regulator/recifier which
changes AC to DC. The DC Then charges the battery.

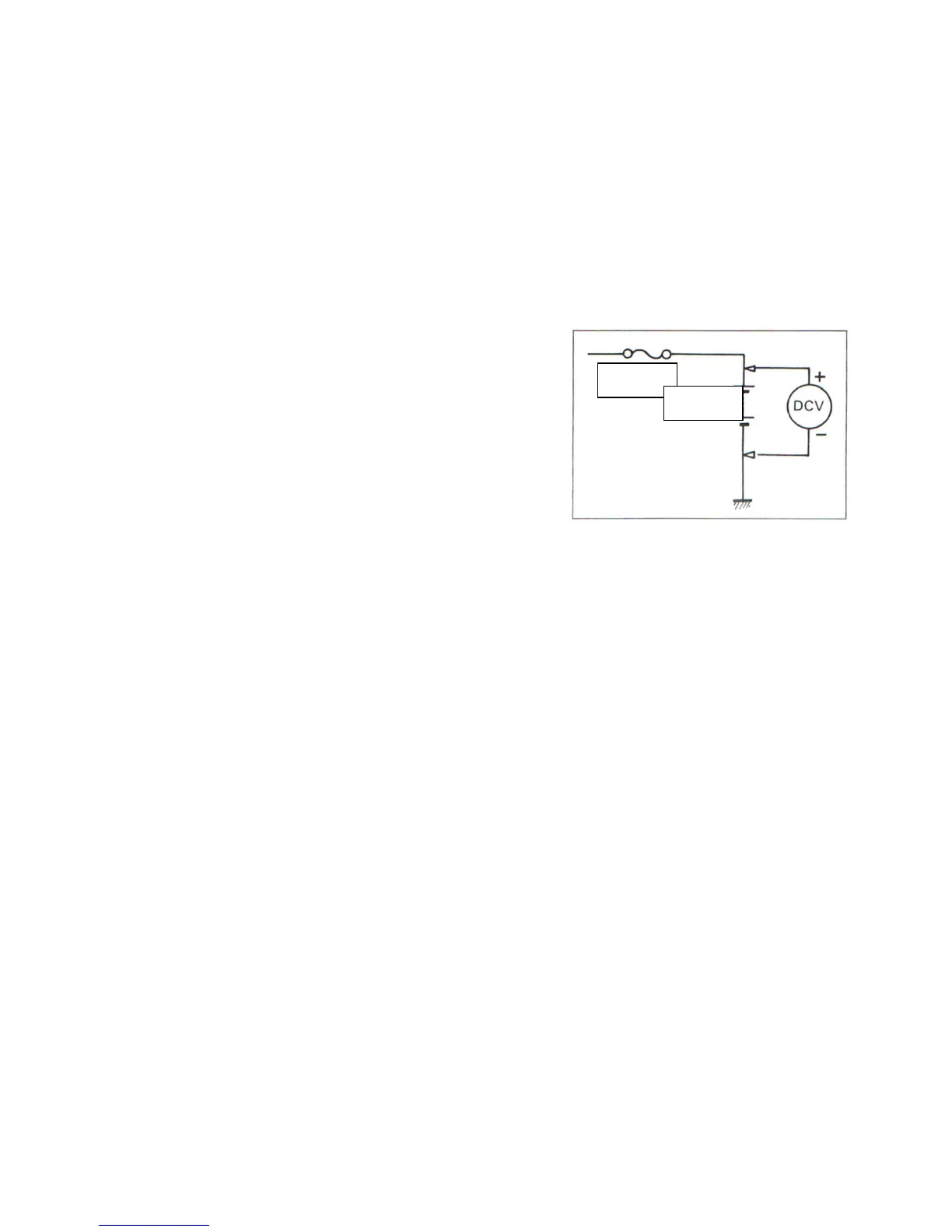

Charging output check
start the engine and keep it running at 5000r/min
with lighting switch turned on.
NOTE:
When making the test, be sure that the
batteryis in fully charged condition.
Tachometer
Standard charging output：
：：
：13-16v at 5000r/min
Fuse
Battery
