STEERING STEM AND FRONT SUSPENSION
REMOVAL AND DISASSEMBLY
（Refer to preceding page）
□ remove the handle cover（refer to preceding page）
□ remove under decorating cover（refer to the preceding page）
□ remove legshield（refer to preceding page）
□ remove front wheel（refer to preceding page）
□ disconnect the front and rear brake light switch lead
wires①.
□ Remove the rear brake cable②.
□ Remove throttle grip case③.
□ Remove throttle cable ④.

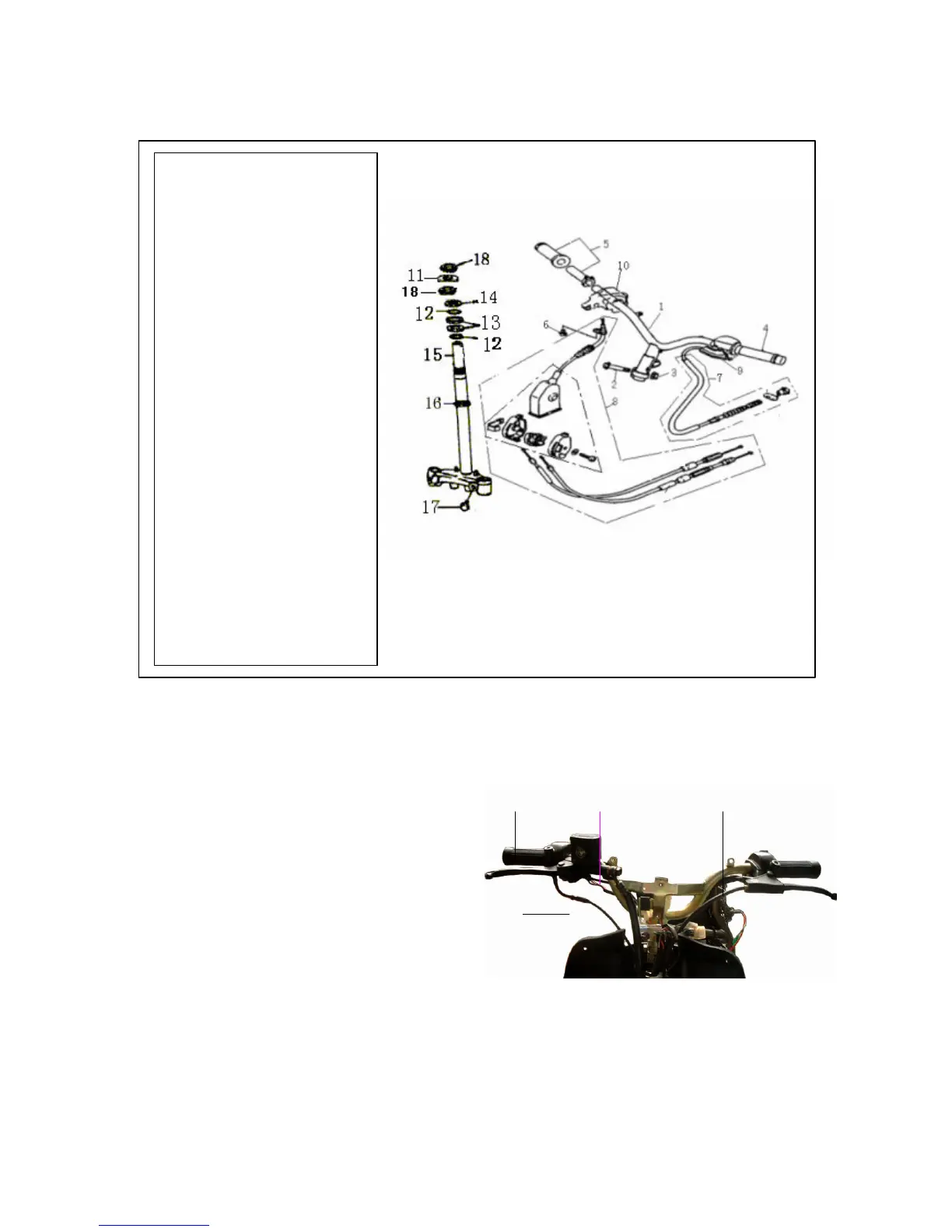

1. handle jointing assy.
2. bolt GB5789 M10X1.25X45
3. nut GB6187 M10X1.25
4. left handlebar
5. throttle grip assy.
6. screw GB818 M5X10
7. rear brake cable assy.
8. throttle cable assy.
9. left switch comp.
10. right switch comp.
11. anti-dust cover
12. steel ball ￠5
13. lower outer steel bowl
14. connecting steel bowl
15.
To Next Page
