NO-LOAD PERFORMANCE
Disconnect the magneto lead wire coupler.
Start the engine and keep it running at 5000r/min.
Using a pocket tester, measure the AC voltage between the white and red
tracer lead wire and ground. If the tester reading is as follows, magneto is in
good condition.
Standard no-load performance: more than 65v(AC)AT 5000R/MIN.

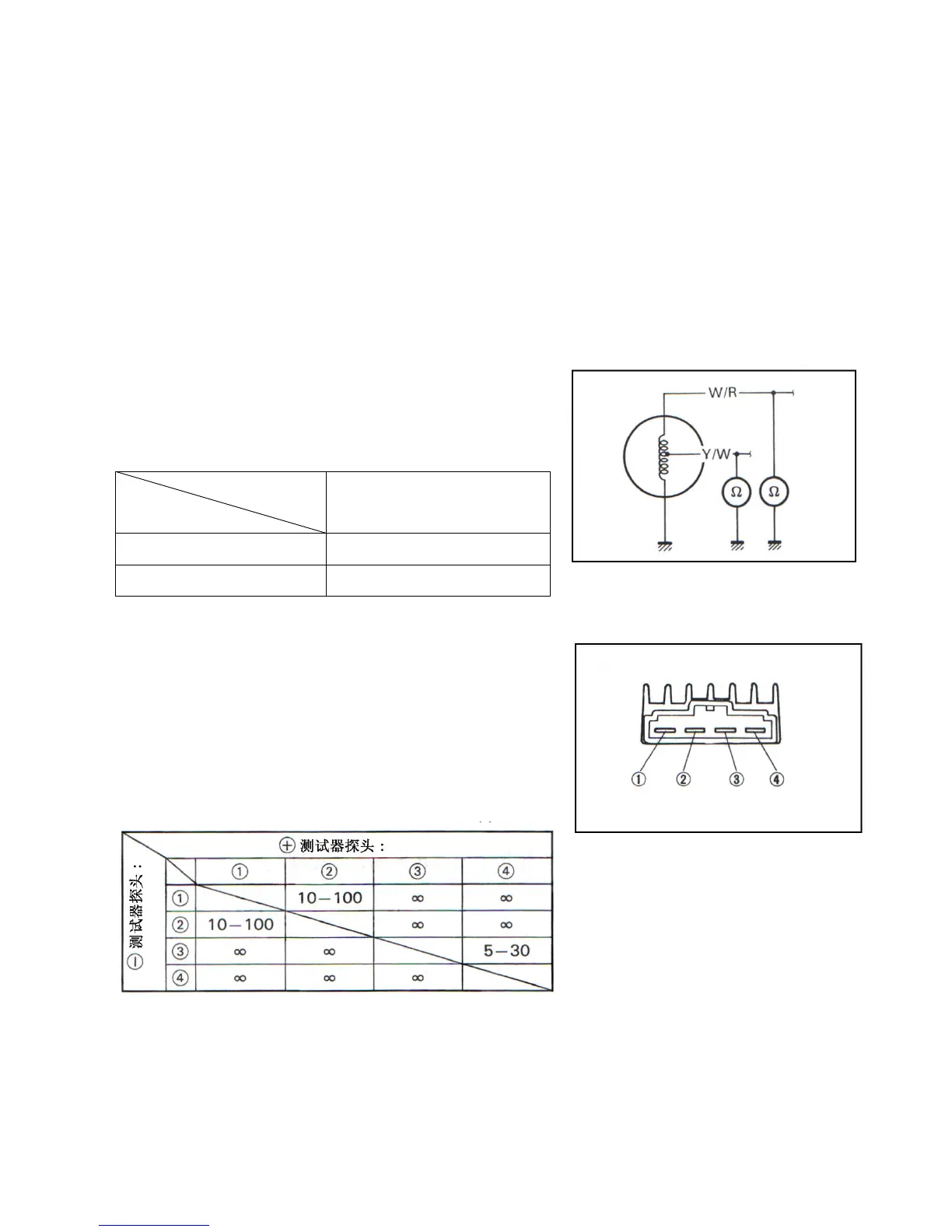

STATOR COILS
Inducing coils
Use procket tester to measure the resistance between the lead wire and
ground. If the resistance checked is not correct, replace the coil.
R
regulator/rectifier
Disconnect the lead wire couple.
Using the pocket tester（× 1KQ RANGE）, measurethe resistance
between the terminals as shown in the following table. If the
resitance checked is incorrect, replace the regulator/rectifier.
UNIT: KQ
NOTES：
：：
：
Including the components such as transistor,capacitance,
regulator diode and so on, so tested resistance may be different
from actual resistance.
Standard
resistance
W/R-GROUND 0.6-1.1Q
W/R-GROUND 0.5-0.8 Q
