KEEWAY Matrix User Manual

85
FRONT BRAKE SYSTEM
BRAKE PAD REPLACEMENT
Remove the calliper by removing the mounting bolts ① .
NOTE:
Do not operate the front brake lever while dismounting the calliper.

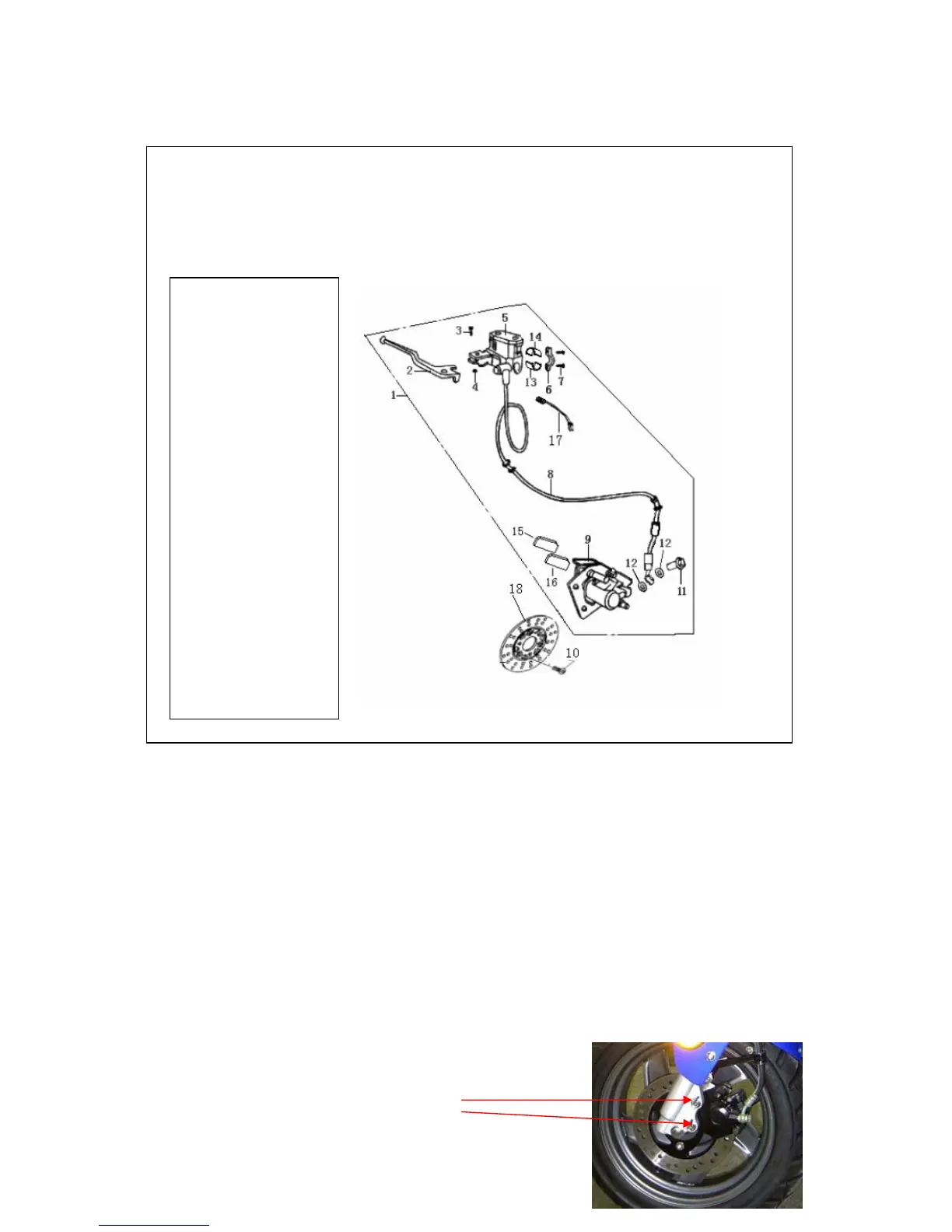

1. disc brake assy.
2.
disc brake handle
lever
3. tightening bolt
4. nut M6
5. master cylinder
6. tightening seat
7. bolt M6X23
8. brake hose assy.
9. brake caliper
10.
connecting board
tightening bolt
11.
hose mounting
bolt
12. seal gasket
13. front gasket
14. rear gasket
15. brake pad 1
16. brake pad 2
17.
master cylinder
rubber bushing
18. front brake switch
①
①①
①

KEEWAY Matrix Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Width	700 mm
Cooling System	Air cooled
Transmission	Automatic
