KEF PSW 3000 User Manual

POWERED SUBWOOFER
22

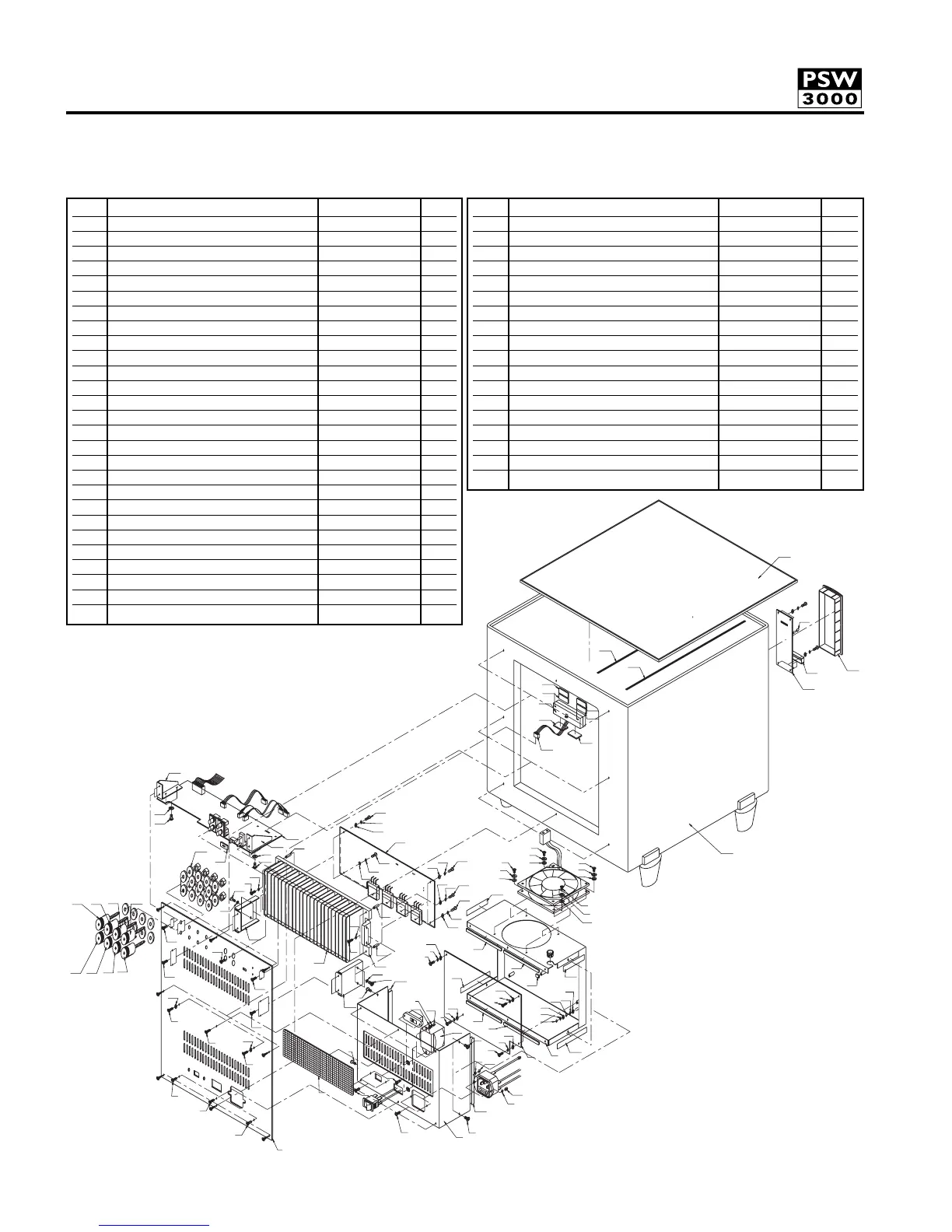

EXPLODED VIEW DIAGRAMS
26
7
5
4
368
2
1
CN2
CN3
CN1
CN2 CN3
7
5
13
46
28
CN1
34
45
41
37
37
37
37
37
37
43
44
42
42
33
40
32
9
8
10
9
10
8
14
17
35
9
8
10
35
13
12
12
13
11
11
15
36
36
10
8
35
10
36
6
36
14
9
8
10
35
5
10
8
4
7
8
31
6
8
31
35
7
36
24
15
16
14
16
14
15
16
18
23
19
10
8
6
19
19
6
31
21
15
35
20
39
7
22
9
15
9
21
15
25
14
15
15
22
30
28
28
27
14
14
7
29
28
28
27
24
15
14
14
6
6
9
7
2
1
29
7
7
7
7
7
14
10
8
27
27
3
8
15
15
16
16
38
REF DESCRIPTION PARTS NO. QTY
1 REAR PANEL 1403-6700-0 1
2 DUST FILTER NET 3100-5951-0 1
3 SWITCH TOP COVER 1403-6680-0 1
4 SMPS PCB 1725-542A-0000 1
5 SWITCH BOT COVER 1403-6690-0 1
6 SCREW PH M3*8 MM BZ CROSS 2900-3008-3000 8
7 S-TITE 3*8 (BLK) 2944-3008-3000 10
8 SPRING WASHER M3*0.9*5.5MM 2607-3009-0553 12
9 SCREW PH M3*10 MM BZ CROSS 2900-3010-3000 10
10 METAL WASHER M3*0.5*8MM BZ 2600-3005-0803 10
11 INT TOOTH WASHER M4*0.8*8.5 2606-4008-0853 2
12 SPRING WASHER M4*1*7MM NI 2607-4010-0704 2
13 NUT HEX M4 2640-4030-0704 2
14 SCREW M3*6 BINDING BLK 2904-3006-3000 16
15 SPRING WASHER M3*0.9*5.5MM 2607-3009-0550 20
16 METAL WASHER M3*0.5*8MM ZNC 2600-3005-0800 12
17 B-TITE 3*14MM(BLK.Zn) 2954-3014-3000 4
18 POWER AMP PCB 1725-541A-0000 1
19 BRASS TUBE L=9MM (2751-10-0) 4133-9580-0 4
20 HEATSINK 5400-3401-0 1
21 B-TITE 3*10MM (BLK.Zn) 2954-3010-3000 4
22 HEATSINK BRACKET 4135-0911-0 2
23 PRE AMP PCB 1725-541A-0000 1
24 PCB BRACKET 4135-0901-0 2
25 METAL WASHER M5*0.8*10MM YZ 2600-5008-1000 8
26 SW COVER 4153-1250-0 1
27 BINDING POST RED 2103-7001-0 4
REF DESCRIPTION PARTS NO. QTY
28 BINDING POST BLK 2103-7101-0 4
29 INT TEETH WASHER M3*0.5*6.4 2606-3005-0643 2
30 T3*8MM SELF TAPPING 2954-3008-3000 1
31 M3 NUT NI 2640-3022-0544 4
32 WOOD BOX 1403-4440-1 1
33 LED PCB 1725-546A-0000 1
34 LENS 4154-2351-0 1
35 MASKING TAPE 9500-0460-0 6
36 EVA GASKET 4153-3331-0 5
37 RUBBER PAD 4152-6890-0 6
38 CHOKETRANSFORMER 1806-3556-0 1
39 HIGH TEMPERATURE TYPE 1635-0420-0 1
40 LED HOLD 3100-6051-0 1
41 SHRINKAGE TUBE ID=3.5MM 1660-0450-0 1
42 UL1007 AWG#20 BLACK 1681-1000-A 2
43 CN ASSY UL2547 #26 L=210 3P 7010-0060-0 2
44 RF RECEIVER MODULE DUAL 8912-0003-0 1
45 TEMPERED GLASS TINTED 4154-2251-0 1
