Keithley DMM6500 Quick Start Guide

POWER
SENSE
Ω 4 WIRE
INPUT
HI
LO
HIHI
REAR
FRONT
TERMINALS
AMPS
3A, 250V
FAST ACTING
3.0A, 250V
350V
PEAK
1000VDC
750VAC
CAT II
300V MAX.
500V
PEAK
!

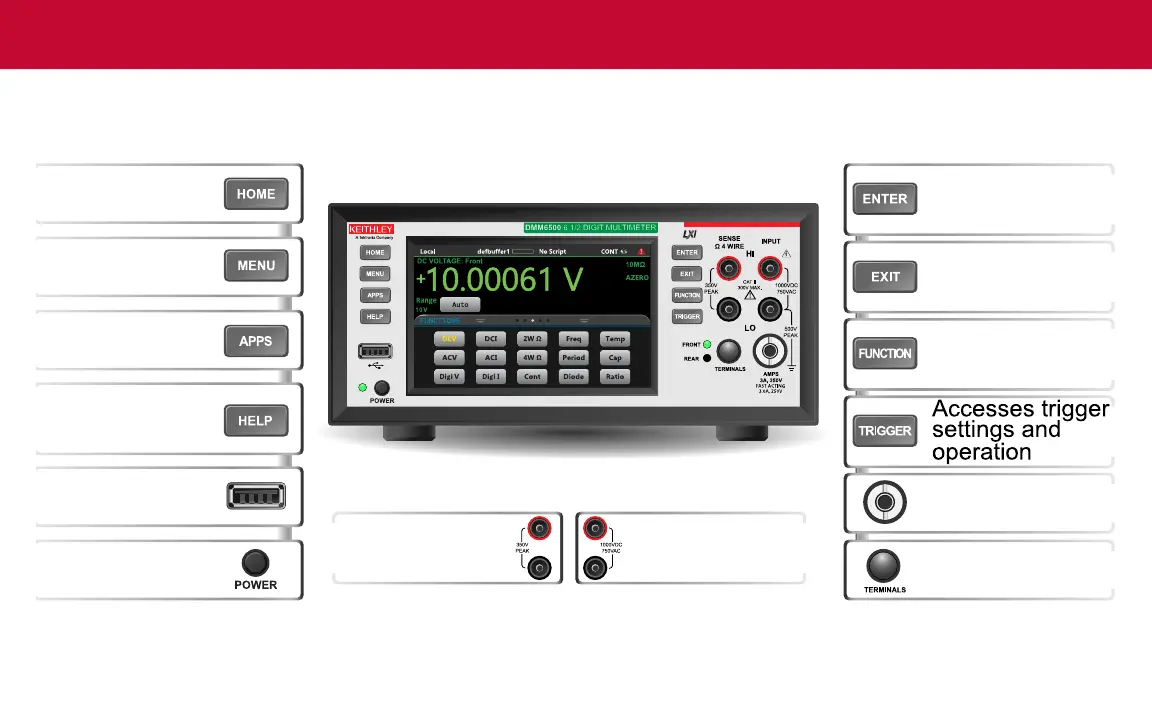

DMM6500 6 1/2 DIGIT MULTIMETER
Sense HI and
LO terminals
Input HI and
LO terminals
Selects
highlighted
choice
Returns to
previous screen
Selects
measurement
function
AMPS 3A, 250V
Activates front
or rear terminals
Displays the
home screen
Opens the
main menu
Opens the
apps manager
Opens the
help text for
selected item
USB flash
drive port
Turns instrument
on or off

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
