Keithley DMM6500 Quick Start Guide

Test
For this example, you can make the connections with the
Model 1757 Standard Test Lead Kit.
To make connections:
1. Make sure the front panel POWER switch is o󰀨.
2. Connect the red lead to the INPUT HI connection.
3. Connect the black lead to the INPUT LO connection.
Verify measurement operation
The following steps provide a quick way to verify that the
instrument is operating correctly.
To verify measurement operation:
1. Turn the instrument on.
2. On the front panel, press the HOME key.
3. On the Functions swipe screen, select DCV.
4. Short the connections.
The voltage measurements appear in the DC
VOLTAGE area of the home screen and should read
approximately 0 V.

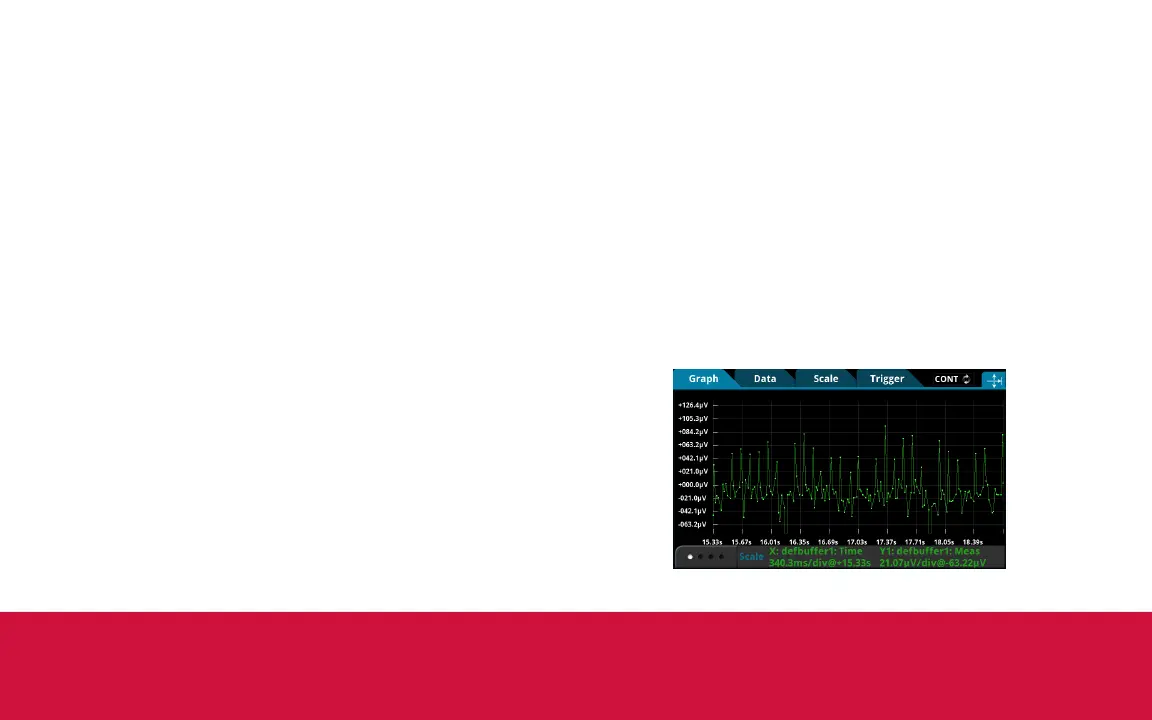

To view measurements on the graph screen:
1. Press the MENU key.
2. Under Views, select Graph.
You can adjust the graph settings using the options in the
Data and Scale tabs.

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
