Series 2600 System SourceMeters User’s Manual Front Panel Operation 1-17
Return to In this section: 2600S-900-01 Rev. A / May 2006

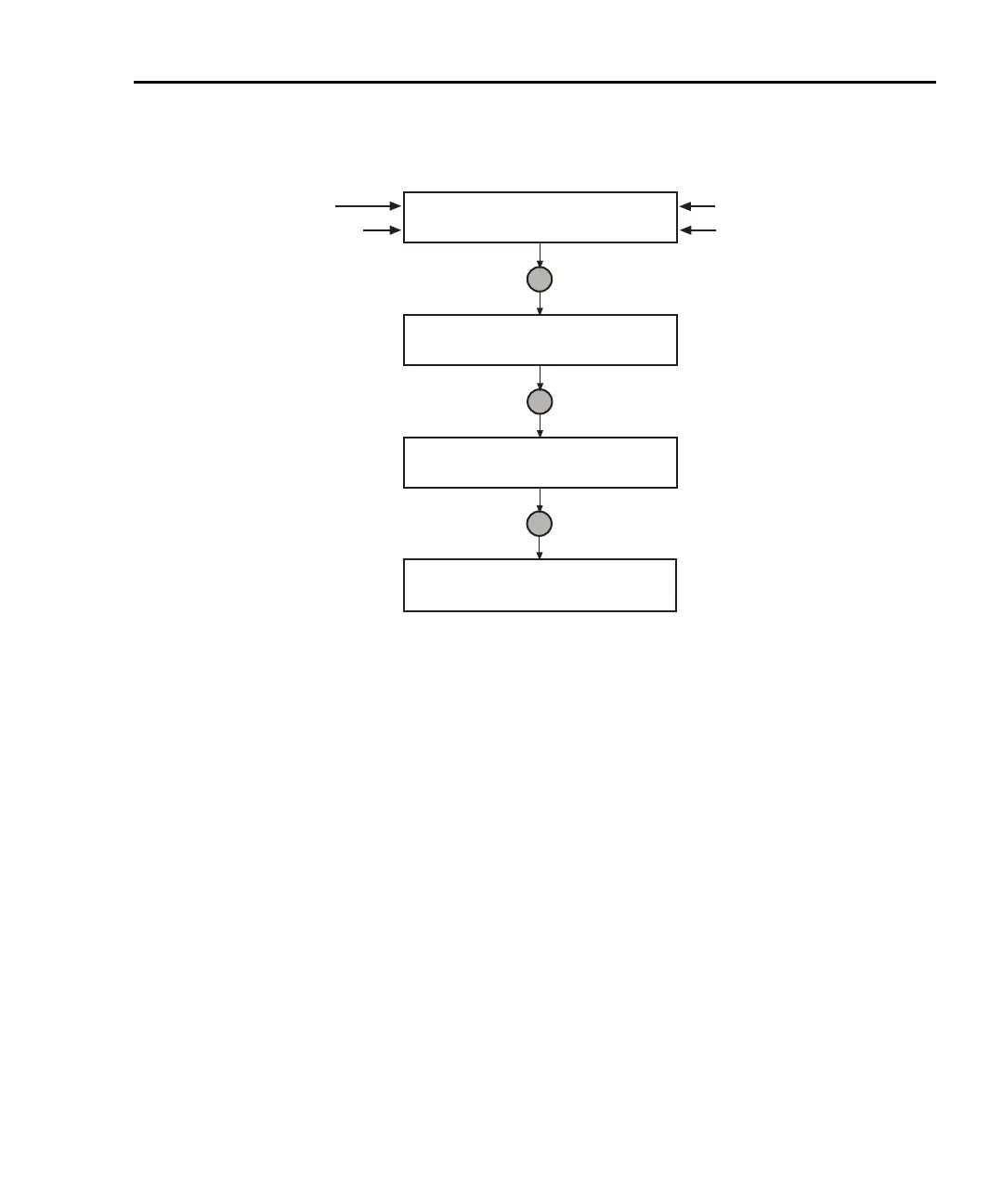

Figure 1-6
Buffer display format
1.00000 mA #0000001
SrcA1:+10.0000 V @00000000.001s
Use Rotary Knob
Use Rotary Knob
Use Rotary Knob
Buffer Location Number
Timestamp (seconds)
Reading
Source Value
1.00000 mA #0000002
SrcA1:+10.0000 V @00000000.002s
1.00000 mA #0000003
SrcA1:+10.0000 V @00000000.003s
1.00000 mA #0000004
SrcA1:+10.0000 V @00000000.004s
Note: Source values and timestamps
will be displayed only if enabled when
buffer is configured.
(SrcA1=
Channel A,
Buffer 1)
