3.2.2 Wiring of KLS-S Controller
3.2.2.1 Standard wiring of KLS-S controller

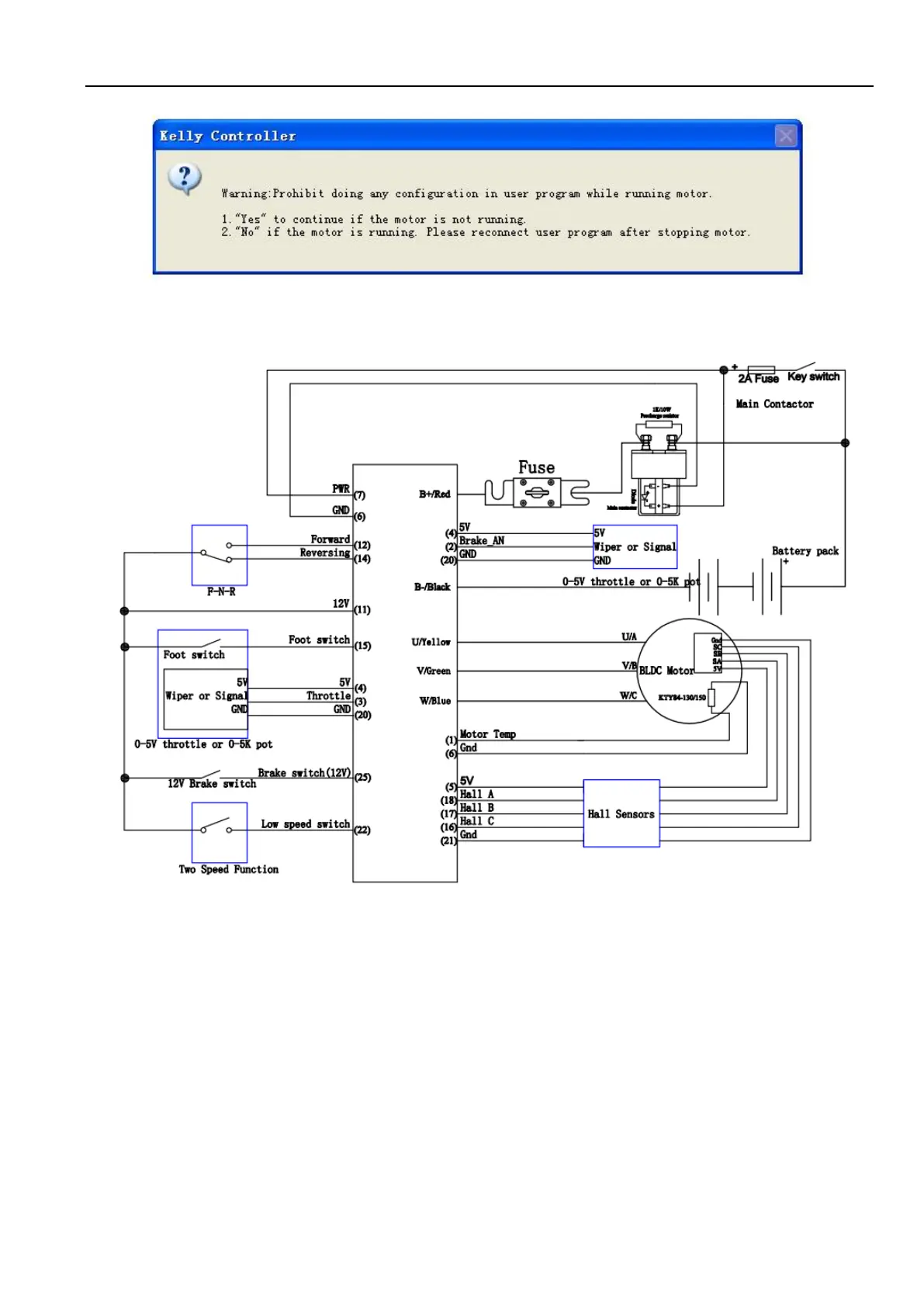

Figure 5: KLS-S controller standard wiring(F-N-R control)
(Battery voltage can be used for controller supply)
