Kelly Ebike Brushless DC Motor Controller User’s Manual V 3.3
Page 5
•Supply Current, PWR, 150mA.
•Configurable battery voltage range, B+. Max operating range: 18V to 1.25*Nominal.
•Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).
•Analog Brake and Throttle Input: 0-5 Volts. Producing 0-5V signal with 3-wire pot.
•Full Power Operating Temperature Range: 0ﹾＣ to 50ﹾＣ (controller case temperature).
•Operating Temperature Range: -30ﹾＣ to 90ﹾＣ,100ﹾＣ shutdown(controller case temperature).
•Peak Phase Current, 30 seconds: 100-350A, depending on the model.
•Continuous Phase Current Limit: 50A-150A, depending on the model.
•Maximum Battery Current: Configurable
2.4 Models

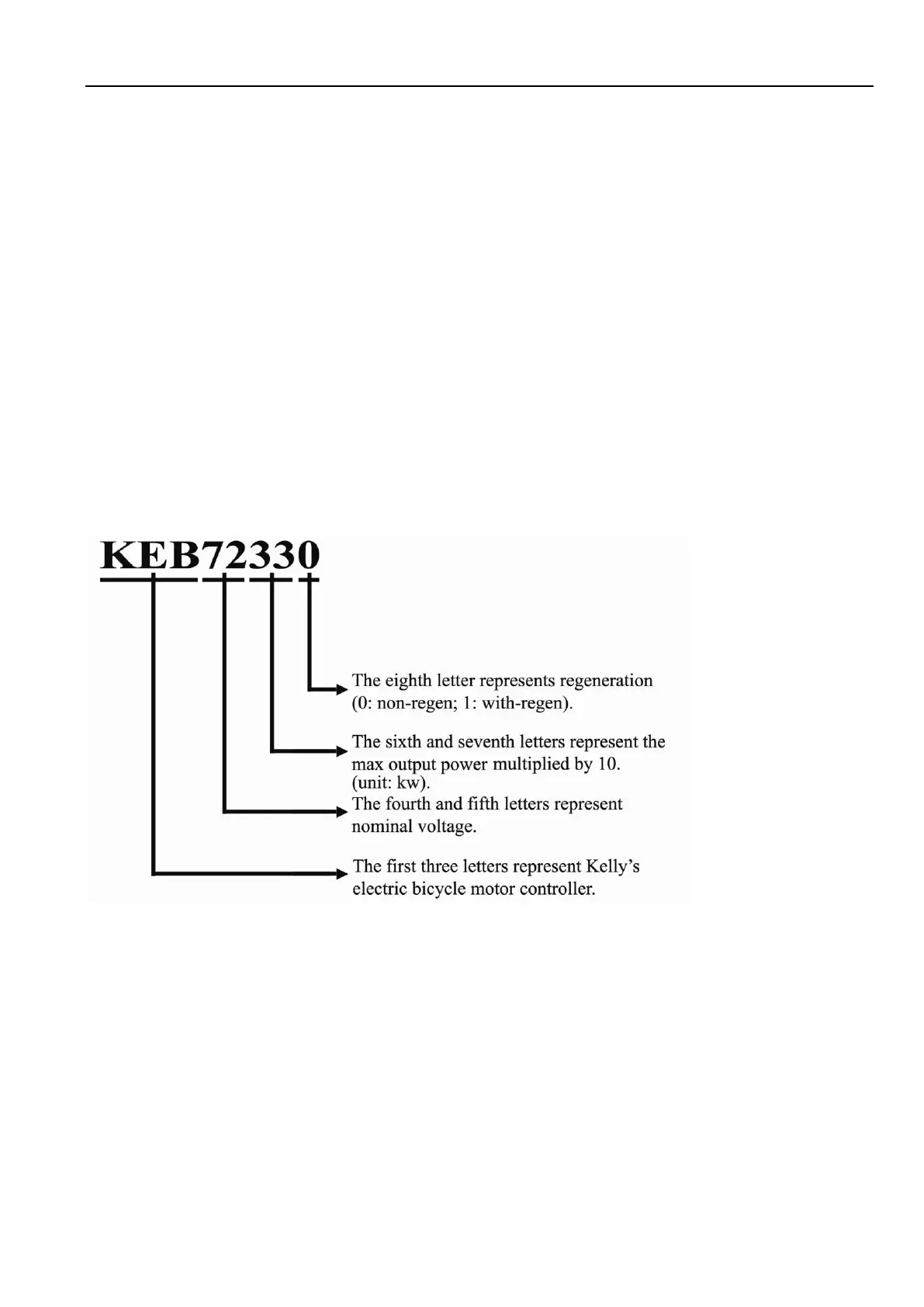

The naming regulations of the Kelly KEB motor controller model:
