KellyFullBridgePermanentMagnetMotorDcControllerUser’sManual V1.4
9
3.2.2StandardWiringofKPM-KDMotorController

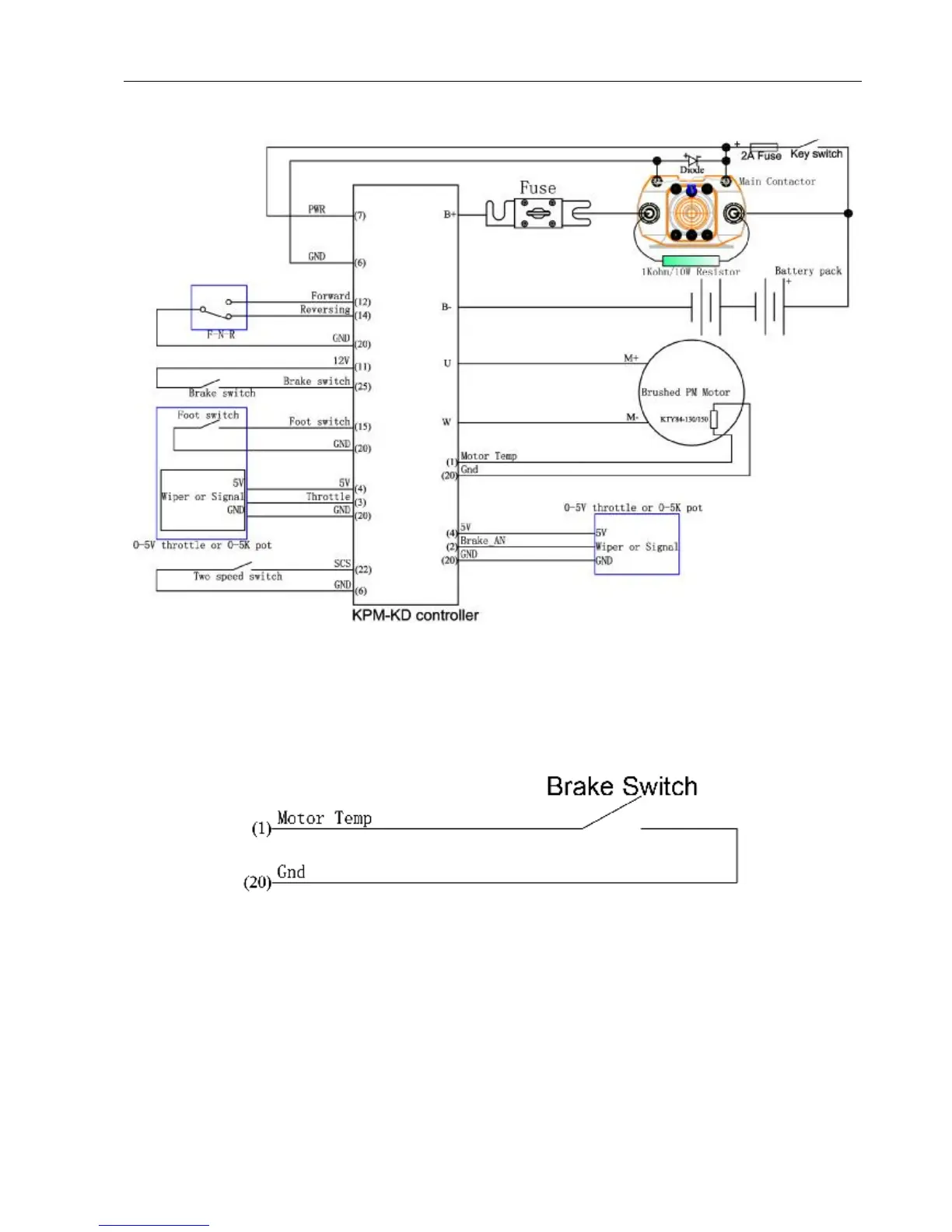

Figure3:KPMmotorcontrollerstandardwiring
3.2.2.1Thewiringdiagramforlowlevelbrakeswitchfunction
ThePin1=Tempcanbeusedaslowlevelbrakeswitchalso.
3.2.3CommunicationPort
A4pinconnectortoRS232converterisprovidedtocommunicatewithhostcomputerfor
calibrationandconfiguration.
