KellyFullBridgePermanentMagnetMotorDcControllerUser’sManual V1.4
6

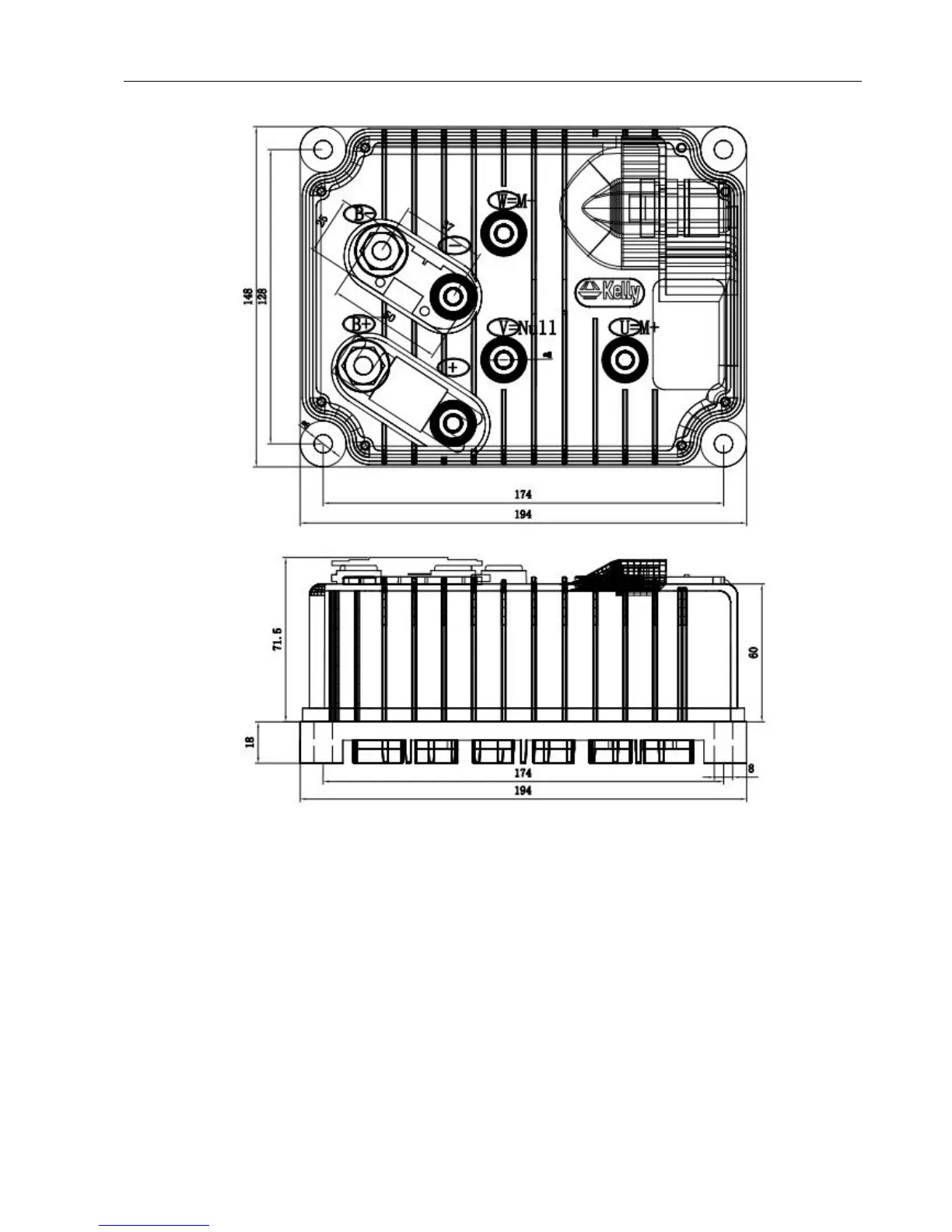

Figure1: mountingholes’ dimensions(dimensionsinmillimeters)
3.2Connections
B+:Batterypositive(M8)
B-:Batterynegative(M8)
U=M+:armaturepositive(M8)
V=Null
W=M-:armaturenegative(M8)
