KellyFullBridgePermanentMagnetMotorDcControllerUser’sManual V1.4
7

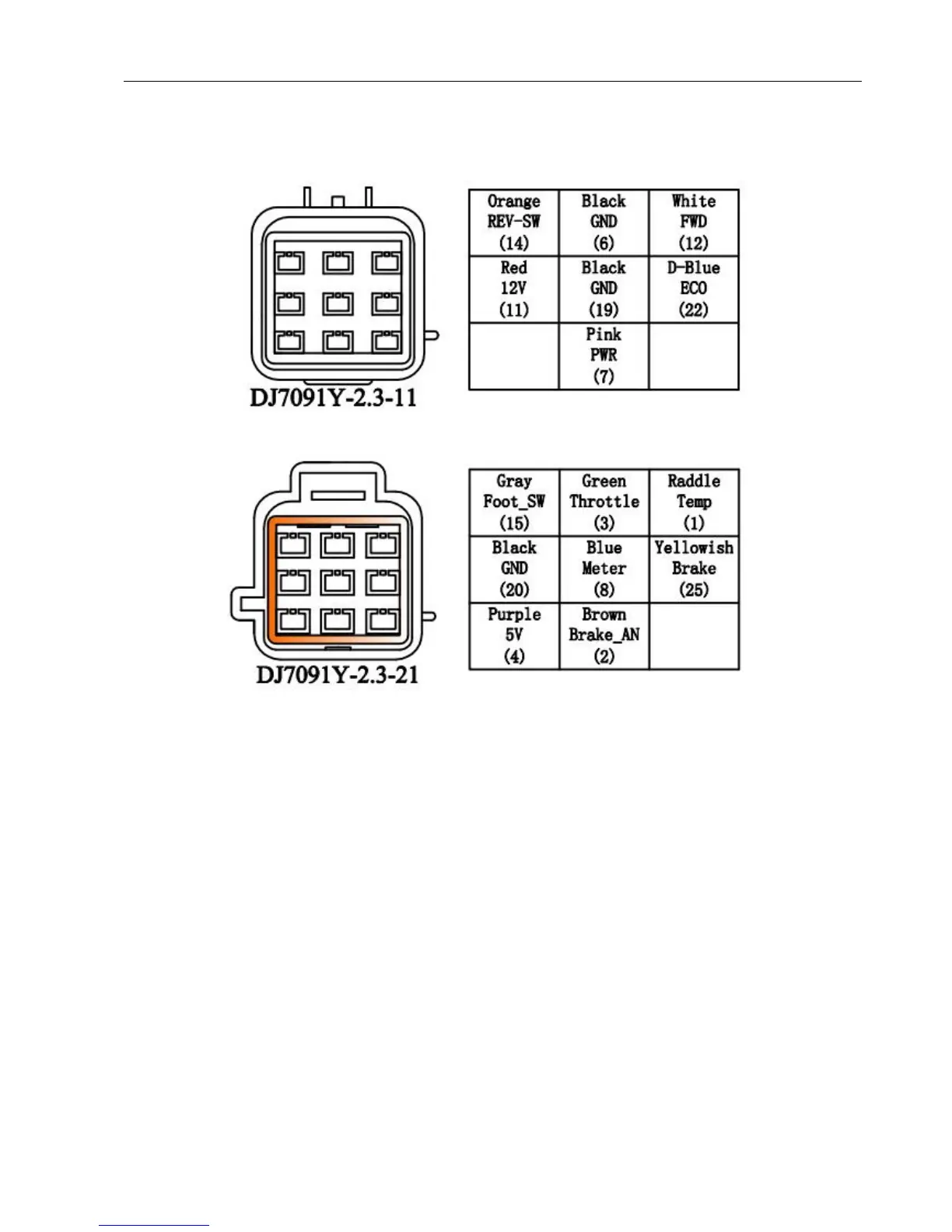

PinDefinitioninwaterproofconnectorDJ7091Y-2.3-11/21:
Figure2:Pindefinitioninwaterproofconnectors
(14)REV_SW:Reverseswitchinput. Orange
(6)GND:Signalreturnorpowersupplyreturn. Black
(12)FWD:Forwardswitch White
(11)12V:12VSourceRed
(19)GND:Signalreturn. Black
(22)ECO:TwoShiftSpeedControl.DarkBlue
(7)PWR:Controllerpowersupply(input). Pink
(15)Micro_SW:Throttleswitchinput. Gray
(3)Throttle:Throttleanaloginput,0-5V. Green
(1)Temp:Motortemperaturesensororlowlevelbrakeswitch. Raddle.
(20)GND:Signalreturn. Black
(8)Meter:Currentmeter,<200mA DarkGray
(25)12Vbrakeswitch.Yellowish
(4)5V:5Vsupplyoutput,<40mA. Purple
(2)Brake_AN
：
BrakevariableregenorBoostfunction. Brown
