2.5 Connecting cables
NOTE! Always check before use that the mains cable, earth return cable and its clamp,
interconnection cable and shielding gas hose are in a serviceable condition. Ensure that connectors
are correctly fastened. Lose connectors can impair welding performance and damage connectors.
2.5.1 Water-cooled system: FastMig X 450 + MXP + FastCool 10
1.
4.
8.
10.
2.
3.
9.
5.
6.
11.
7.
V
V

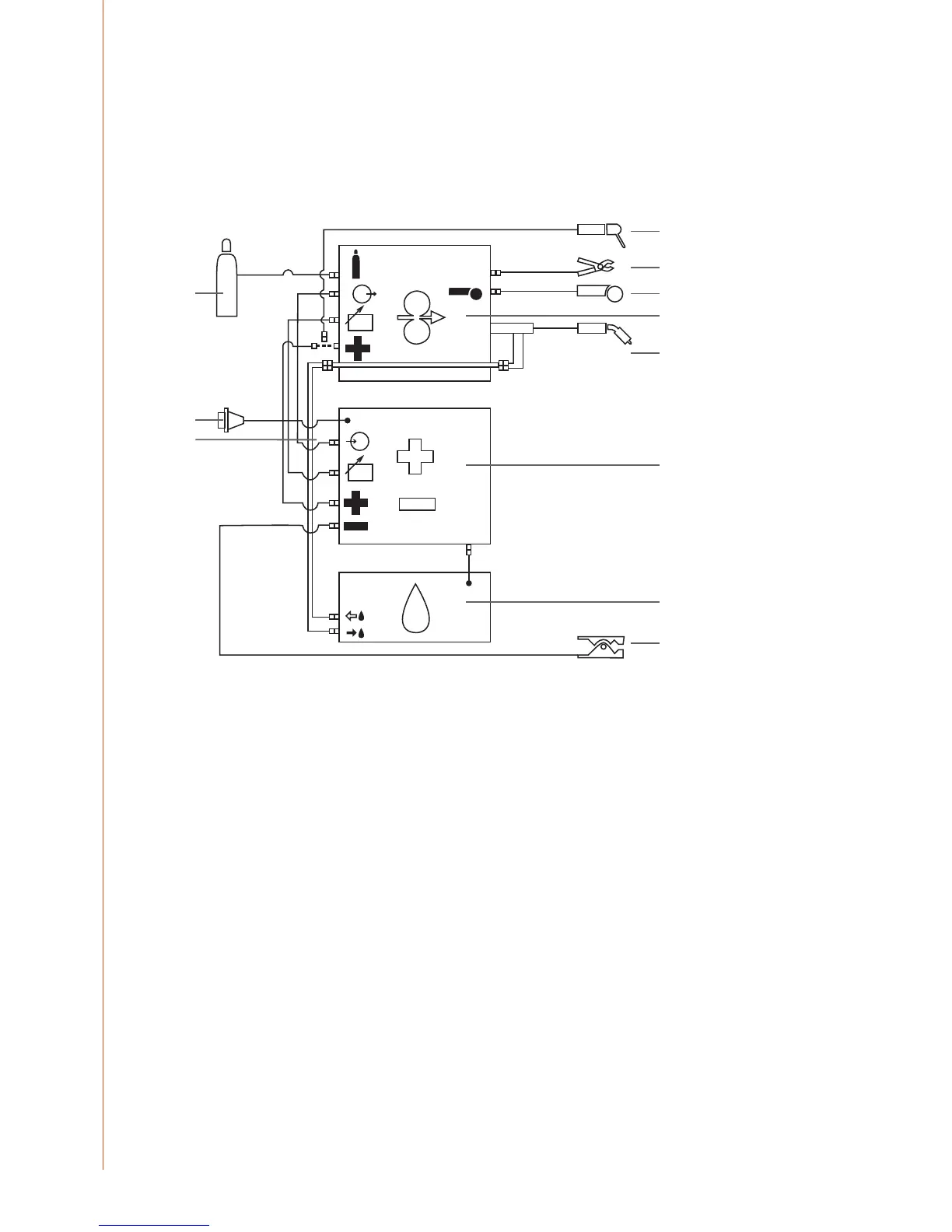

1. Wire feed unit
2. FastMig X 450 power source
3. FastCool cooling unit and power connection
4. Gas supply
5. MMA electrode holder
6. Remote control device
7. Water-cooled welding gun
8. Power cable
9. Earth return cable and clamp
10. Measurement cable (from power source to wire feeder)
11. Voltage sensing cable (from wire feeder to work piece)
FastMig X 450
6
