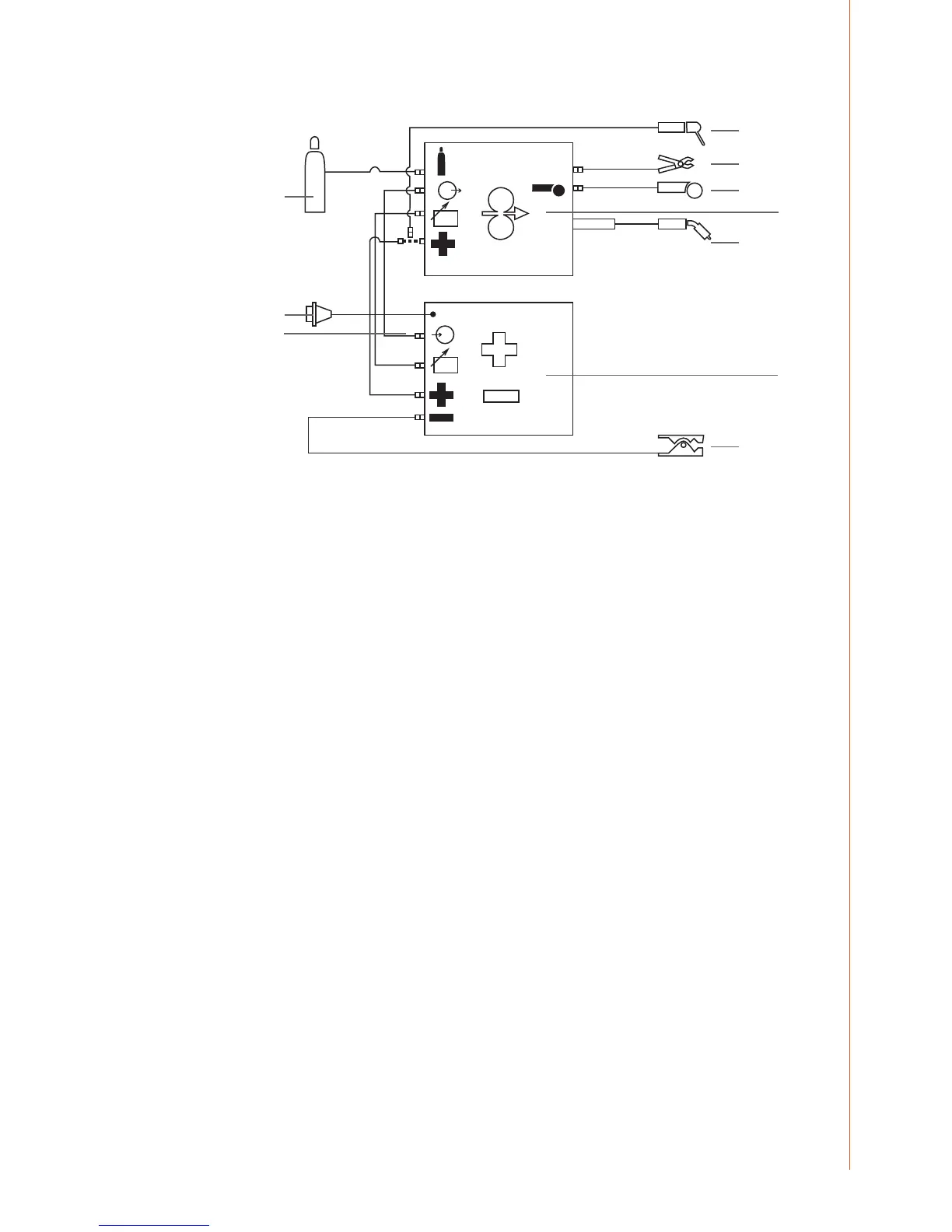

2.5.2 Air-cooled system: FastMig X 450 + MXP
1.
4.
5.
10.
6.
8.
2.
3.
7.
9.
V
V
1. Wire feed unit
2. FastMig X 450 power source
3. Gas supply
4. MMA electrode holder
5. Remote control device
6. Air-cooled welding gun
7. Power cable
8. Earth return cable and clamp
9. Measurement cable (from power source to wire feeder)
10. Voltage sensing cable (from wire feeder to work piece)
