2.9 Installing and replacing wire guide tubes
The wire feed mechanism includes two wire guide tubes. Replace them when the filler wire diameter or material
changes. Select the wire guide tubes according to the tables in "Wire feeder consumables" on page69.
When replacing the outlet guide tube, the welding gun must be detached.

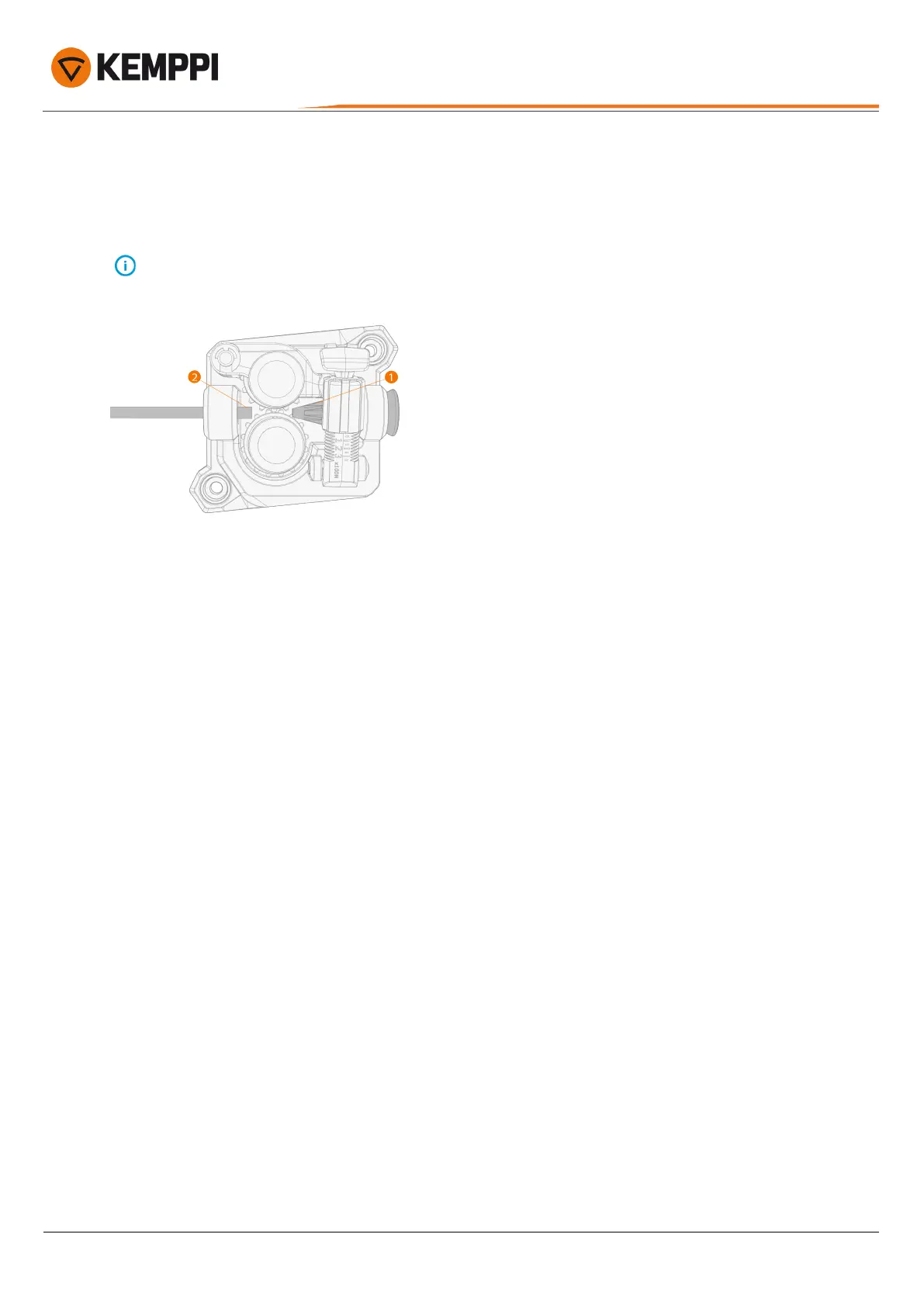

1. Inlet guide tube
2. Outlet guide tube
To replace the wire guide tubes:
1. Release the pressure handle and remove the filler wire from the system.
2. Pull out the inlet guide tube (1) and insert a new one in its place.
3. Push out the outlet guide tube (2) and insert a new one in its place.
4. Close the pressure arm.
