Master M 205, 323
Operating manual - EN
1. Shielding gas hose connector
2. Power switch
3. Mains cable
4. Rear locking interface
>> For locking on top of the cooling unit or on the cart.

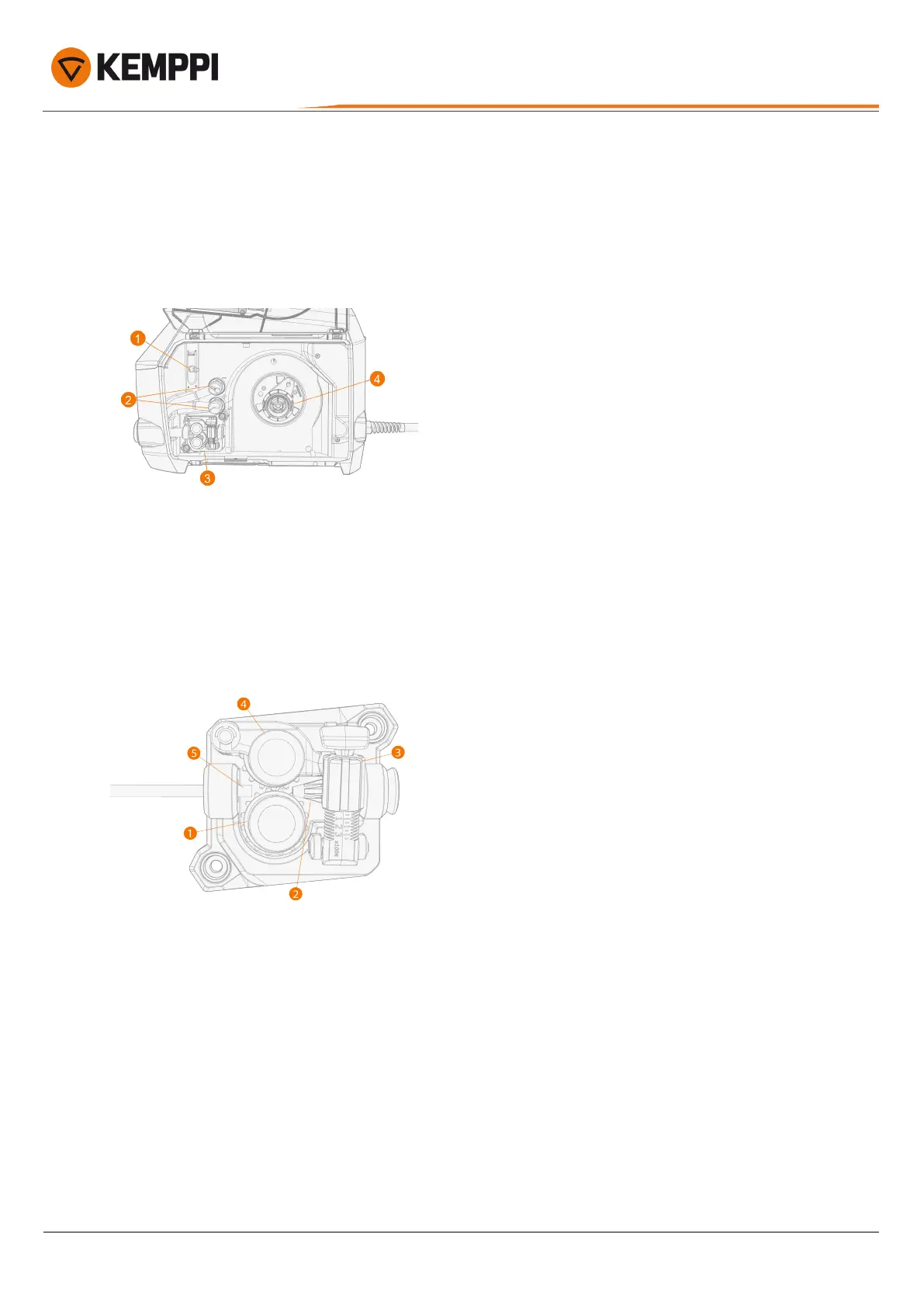

Inside wire feed cabinet
1. Gas regulating valve for measuring and adjusting gas flow (Master M 323 only)
>> For setting the gas flow rate in the device lower than the gas flow rate from the gas supply
2. Polarity terminals
3. Wire feed mechanism (refer to "Wire feed mechanism" below)
4. Wire spool hub.
1.2.1 Wire feed mechanism
1. Drive roll and drive roll mounting cap
2. Inlet guide tube
3. Pressure handle
4. Pressure roll and pressure roll mounting pin
5. Outlet guide tube.
For replacing the feed rolls, refer to "Installing and replacing feed rolls" on page26.
For replacing the wire guide tubes, refer to "Installing and replacing wire guide tubes" on page28.
