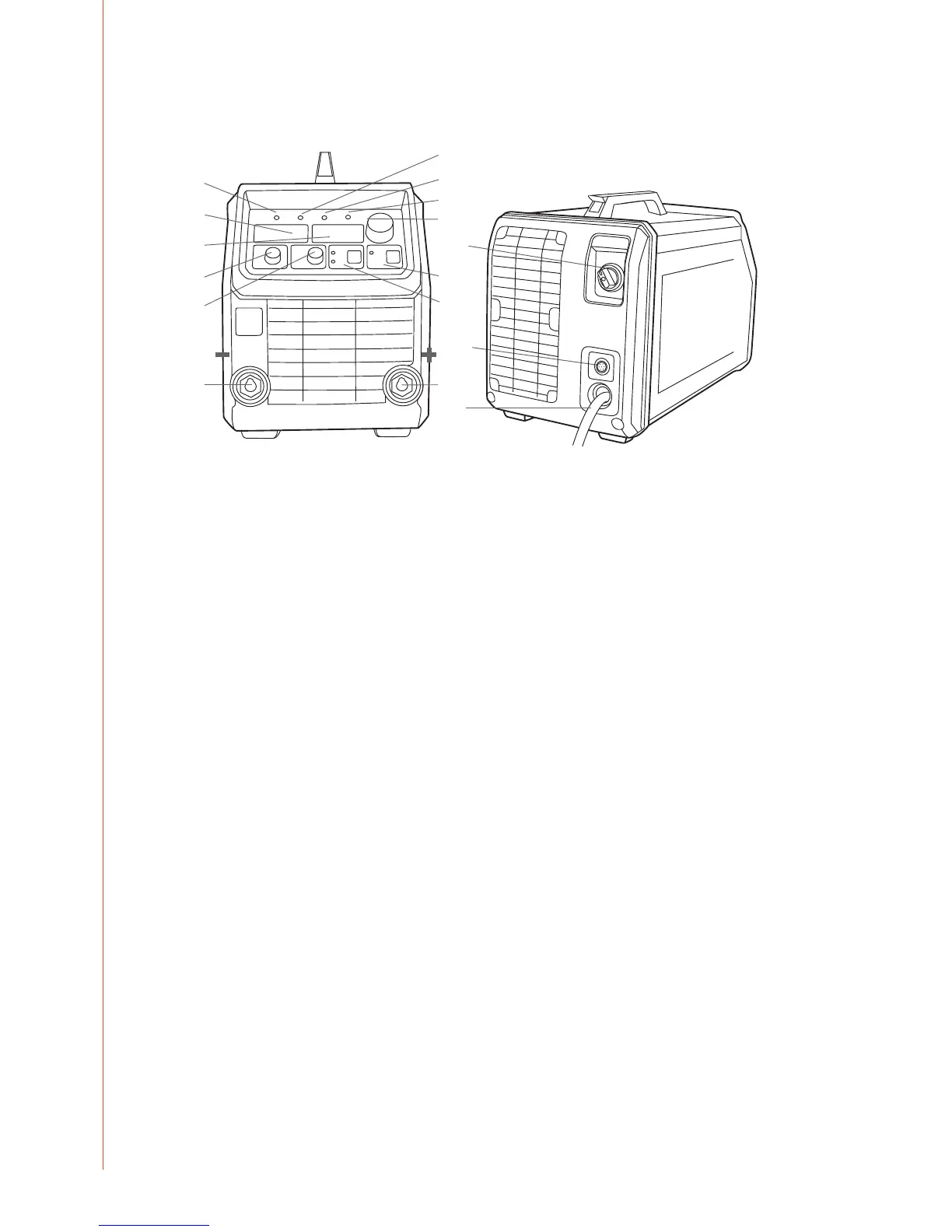

1.3 Machine introduction
Master S 400 and 500
1.
5.
7. 9.
12.
6.
8.
16.
10.
4.
11.
13.
14.
15.
2.
3.
1. Power on pilot lamp
2. Overheating pilot lamp
3. CV mode pilot lamp
4. VRD ON pilot lamp
5. Amperage meter display
6. Voltage meter display
7. ArcForce
8. HotStart
9. Remote Control
10. Welding Mode
11. Welding current adjustment knob
12. Negative (-) pole connection socket
13. Positive (+) pole connection socket
14. Main switch (ON/OFF)
15. Mains power cable
16. Remote control connector
Display cover comes standard with Master S 400 and 500. It protects the panel form sparks,
dust and scratches.
