MasterTig 235ACDC, 325DC, 335ACDC, 425DC
Operating manual - EN

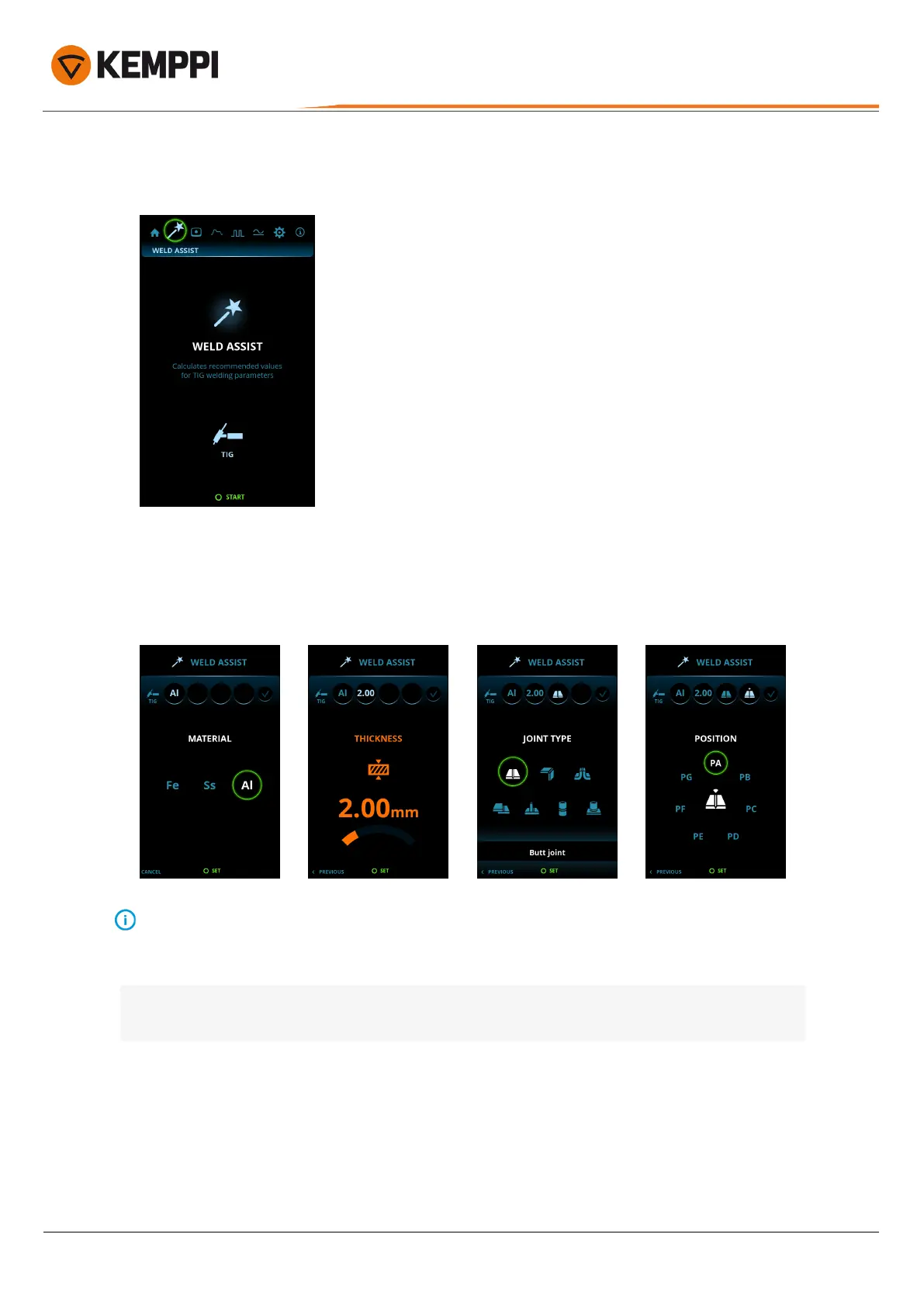

Using Weld Assist with TIG welding
1. Go to the Weld Assist view and select 'Start' with the control knob button (1).
2. Select:
>> The material you are about to weld: Fe (mild steel) / Ss (stainless steel) / Al (aluminum).
>> The welded material’s thickness (0.5 ... 10 mm).
>> The welding joint type: butt joint / corner joint / edge joint / lap joint / fillet joint / tube joint / tube+plate joint.
>> The welding position: PA / PB / PC / PD / PE / PF / PG.
With MasterTig DC power sources, the aluminum (Al) selection is not available as a welded material.
3. Confirm the Weld Assist’s recommendation for welding settings by selecting 'Apply'.
Tip: You can go back step by step in Weld Assist by pressing the left function button (2). Selecting Cancel with
the right function button (3), you can cancel Weld Assist recommendations and return to the beginning.
© Kemppi
38
1920900 / 2052
