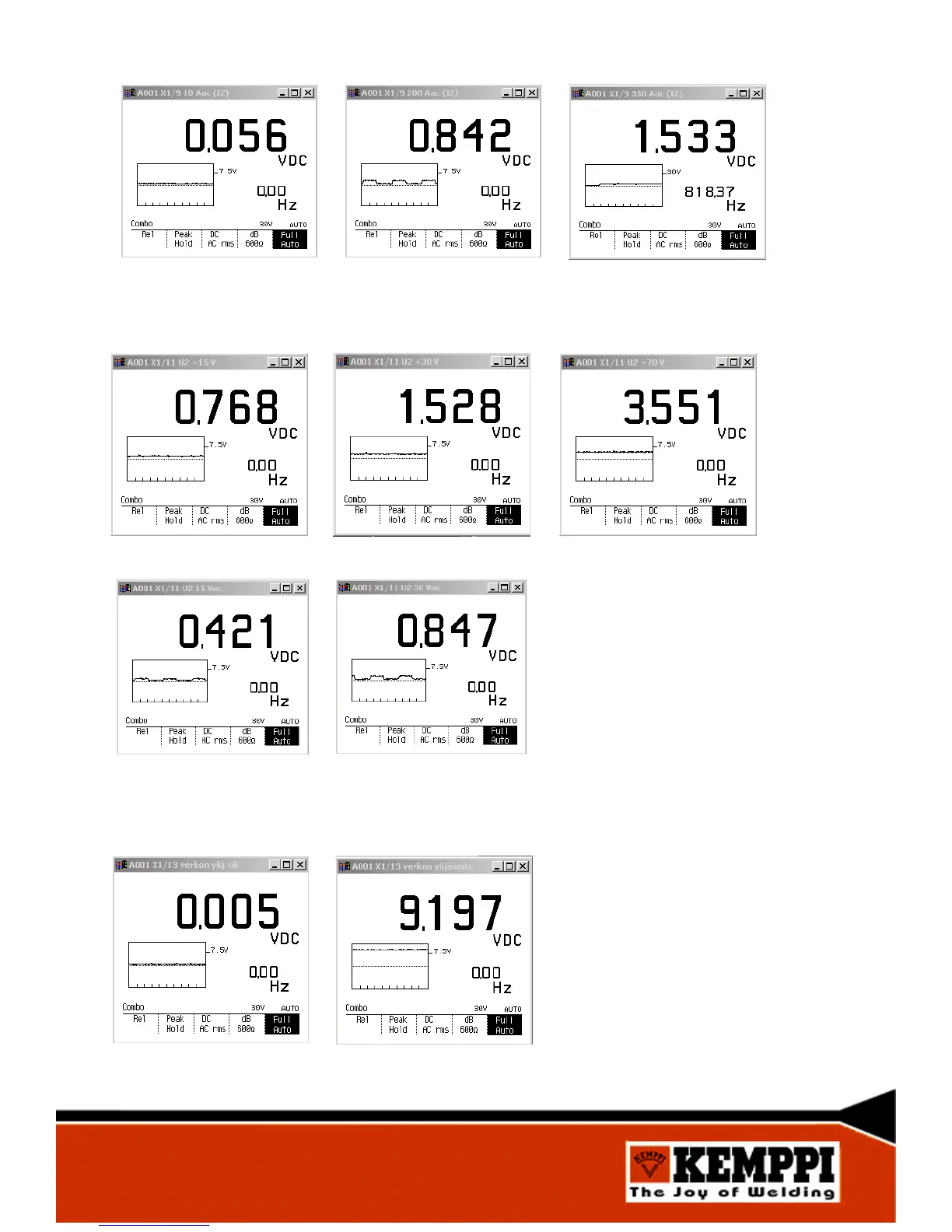

AC 10 A, MMA AC 200 A, MMA
AC 350 A, MMA
Info of welding current (DC+ and AC pos. half-cycles), voltage on X1/9
+ 15 V, MMA + 30 V, MMA + 70 V, MMA
Info of welding current (DC+ and AC pos. half-cycles), voltage on X1/11
15 Vac, MMA
30 Vac, MMA
Net voltage OK
Net overvoltage
Net overvoltage watch, voltage on connector X1/13
40
