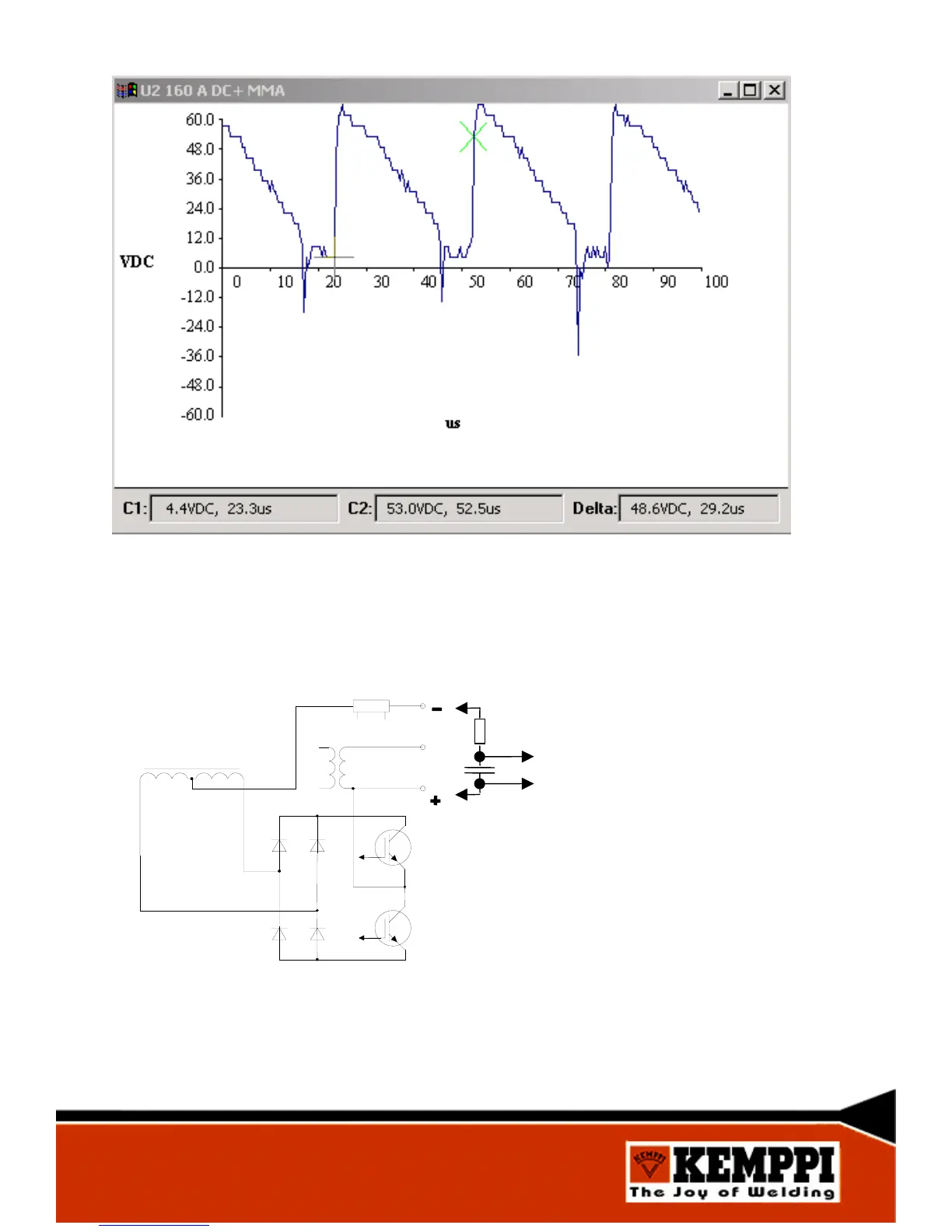

Voltage after the diode cards
After the diode card 160 A
TIG
U
2
10 kΩ
22 nF
Secondary voltage U
2
using a low-pass filter
Mastertig 2000 AC/DC
65
