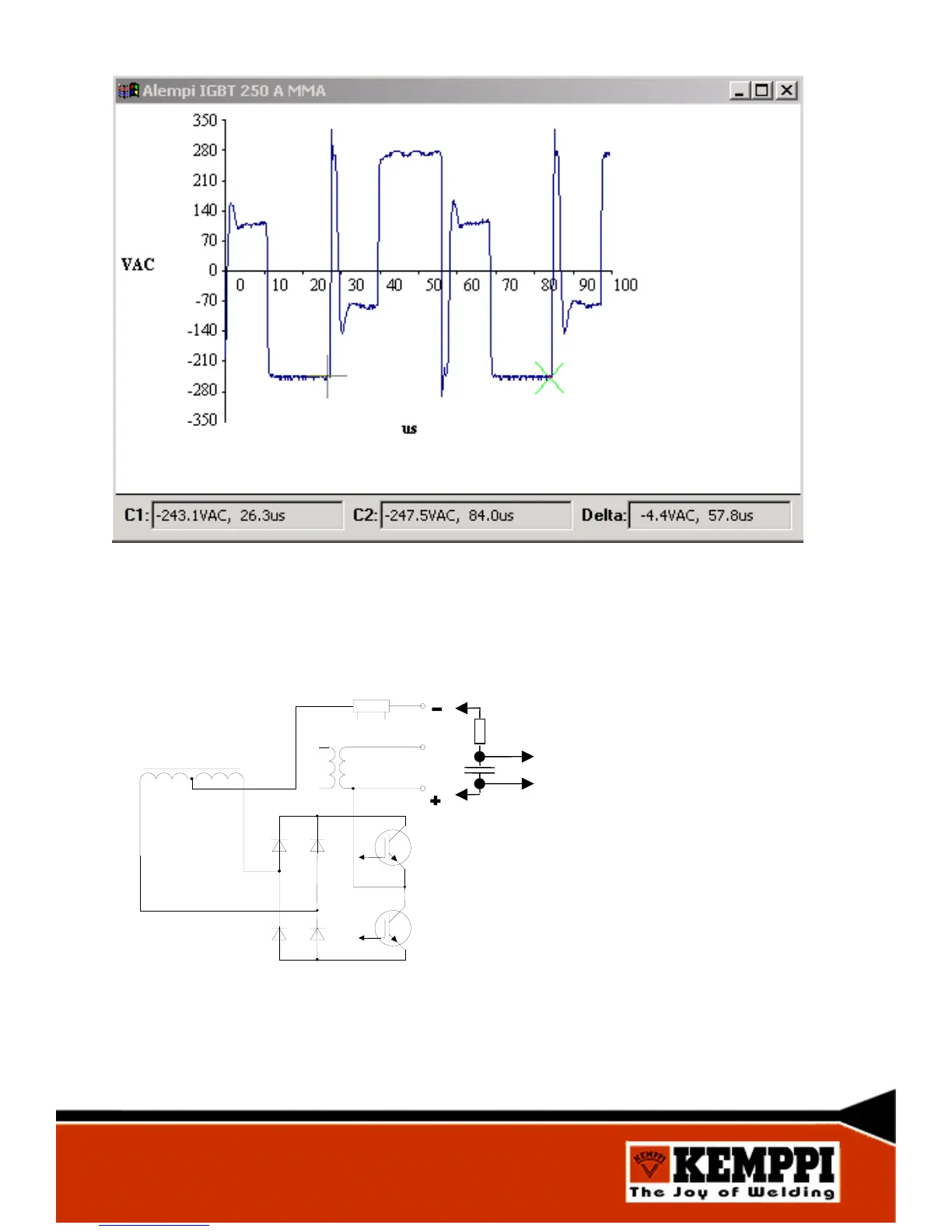

Voltage over the lower IGBT
Voltage over the lower IGBT 250 A
TIG
U
2
10 kΩ
22 nF
Secondary voltage U
2
using a low-pass filter
Mastertig 2500 AC/DC
73
