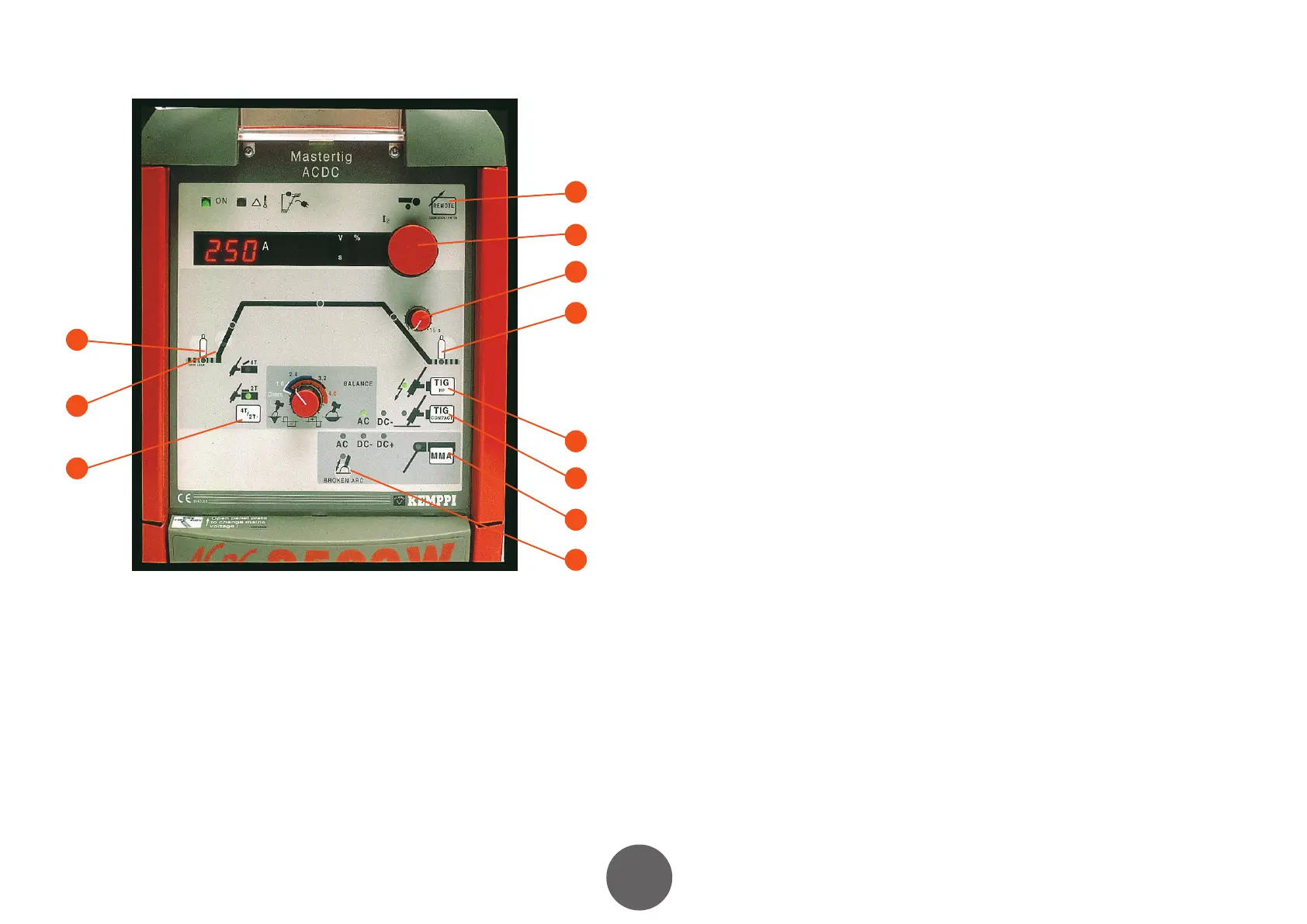

1. Selection switches for TIG welding: TIG HF = spark TIG and TIG CONTACT = contact
TIG
2.
3. Adjustment of post-gas time 0 ... 100 s
4. Adjustment potentiometer of the down-slope time of the welding current 0 ... 15 s
5. Current adjustment knob I2, used also to adjust the values of the parameters with keys.
6. Selection of local / remote control REMOTE and at the same time the key for code locking
CODE LOCK/ENTER
7.
8.
9.
10.
11.
12. Adjustment of the pre-gas time, and at the same time the key for code locking CODE
LOCK.
13. Adjustment of the up-slope time of the welding current 0 ... 5 s
14. Selection of fusion spot welding and adjustment of time, SPOT WELD 0 ... 10 s
15.
16.
17.
18.
19. Selection key for broken-arc method BROKEN ARC.
20.
21. Selection key of MMA welding MMA
22. Adjustment potentiometer of the form of the AC TIG arc BALANCE -70 ... +70 %
