22
MasterTig ACDC 3500W© Kemppi Oy 2021 R01
OPERATING MANUAL

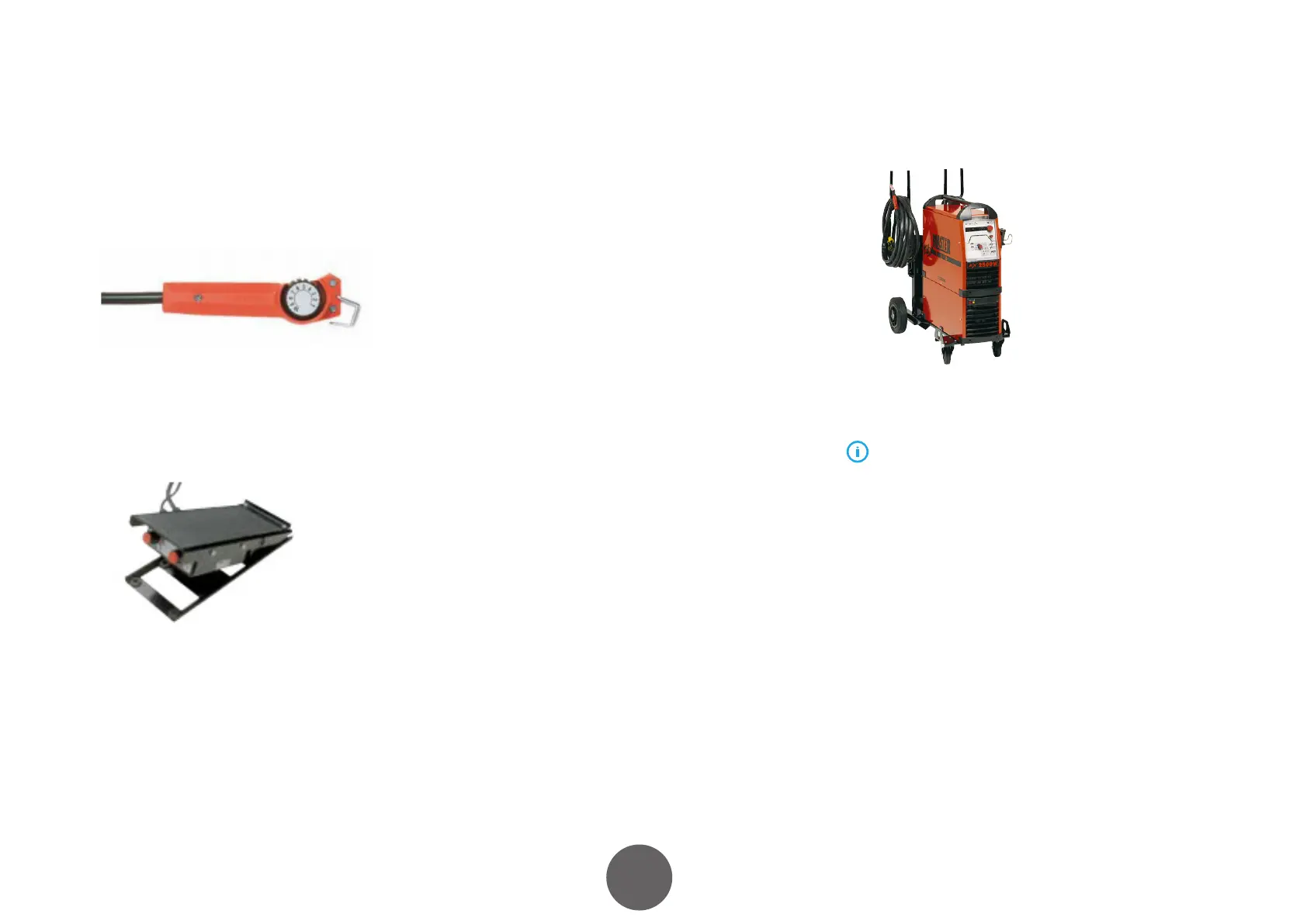

6. ACCESSORIES
6.1 Remote control units
C 100C Control of MMA / TIG welding current, memory
scale 1 - 10.
C 100F Foot pedal control unit for TIG welding
• start function
• adjustment of the welding current with pedal
movements
• limitation of the welding-current range with min
and max potentiometers
6.1.1 Connecting the foot pedal unit:
The foot pedal unit has two connections, which are
connected to the remote control and start connections in the
rear of the power source. When using the foot pedal unit, the
maximum current output of the machine is ca. 30 %
below its maximum output unless the machine is
calibrated for the foot pedal unit.
6.1.2 Calibration of the machine for the foot pedal unit:
1. Turn the machine o.
2. Press the REMOTE key and at the same time turn the
machine on; the display will show
the text rEn 01.
3. Turn the current adjustment knob so that the display
will show rEn 02.
(01=C 100C, 02=C 100F)
4. Press the REMOTE key so that the setting is saved in
the memory.
6.2 Wheel barrows and transport chassises
T 22 (transport unit)
Lifting ears on both sides (total 4 pcs)
Note! Do not lift the welding machine and the
transport unit with a gas bottle.
7. EXTRA FUNCTIONS
