Front of machine
1. Function panel
2. Remote control connector
3. TIG torch control connector
4. Shield gas and current connector for
TIG torch
5. (+) connector for electrode holder
6. (–) connector for earth cable
Markings for (+/–) poles on the
machine front are embossed.
Rear of machine
1. Mains switch
2. Snap connector for gas

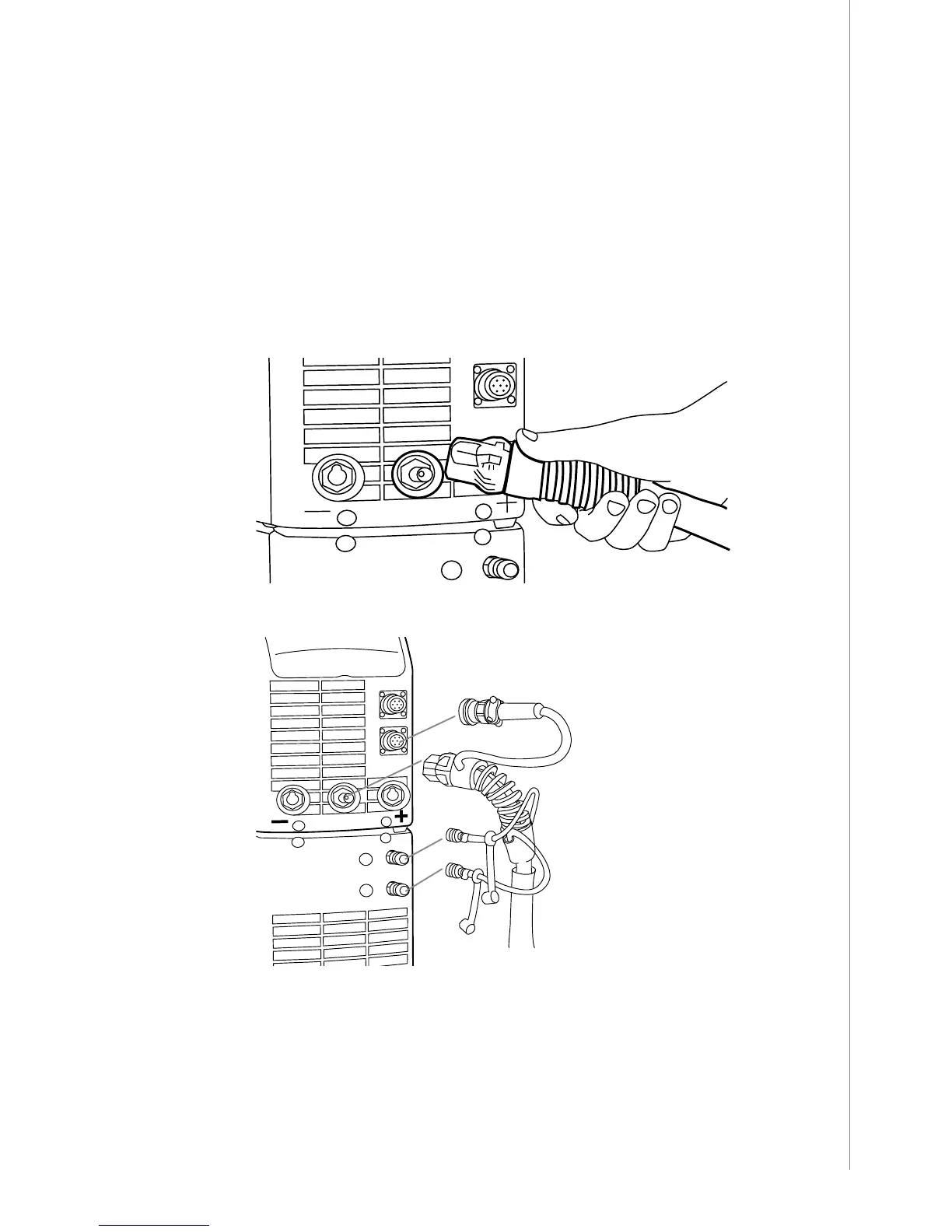

Installing gas-cooled torch
Installing water-cooled torch
Connect the red water hose to the upper connector and blue one to the lower connector.
5
MasterTig MLS 3000, 3003 ACDC / © Kemppi Oy / 1112
