EN

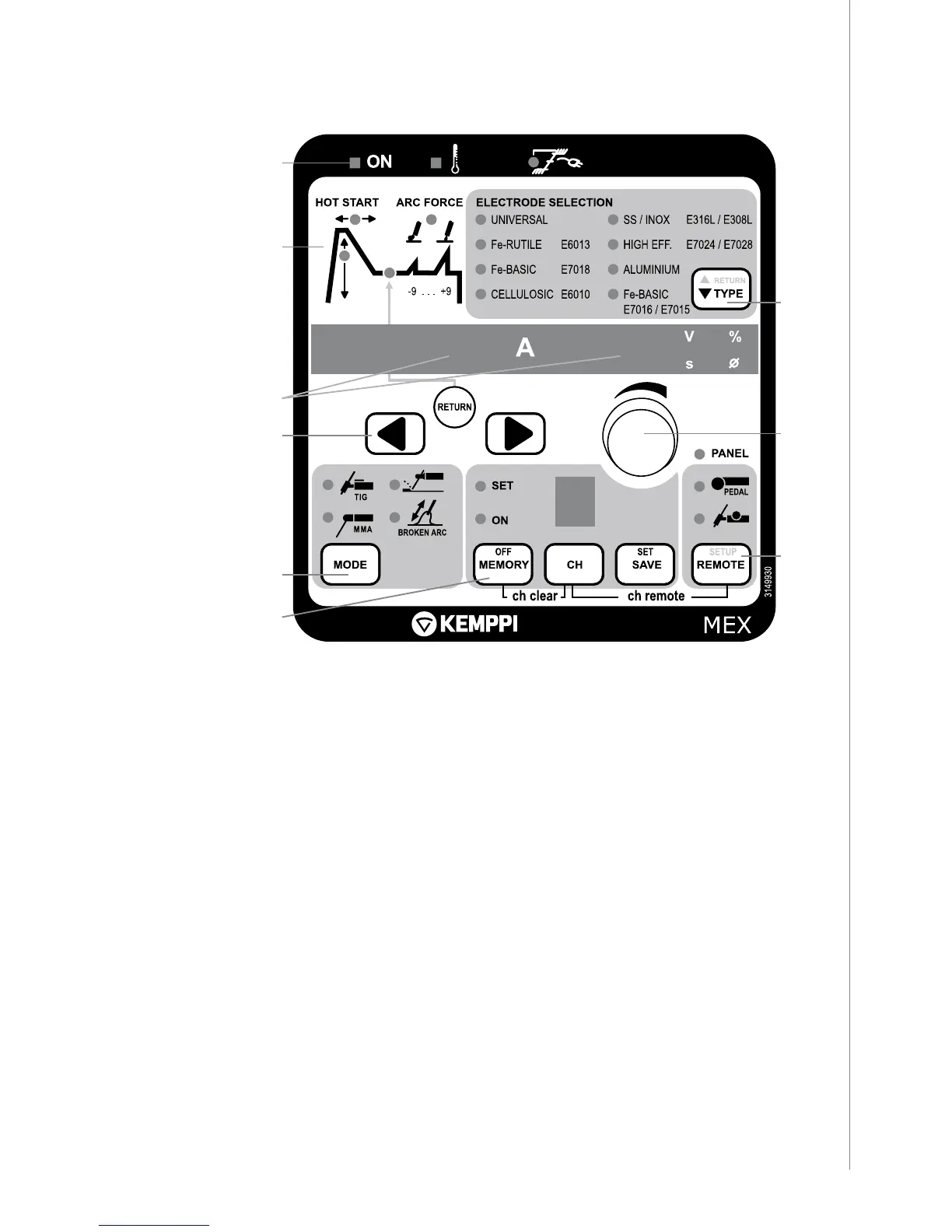

MMA welding panel MEX
1.
2.
6.
5.
7.
3.
4.
8.
9.
MEX panel is available separately. The functions of MEX panel are described in the operating
manual delivered with the panel.
1. Indicator lights: Main switch, overheating, wrong mains voltage
2. MODE button for welding method selection: MMA, contact TIG, carbon arc gouging, broken
arc
3. Selection of electrode type
4. Potentiometer for regulation of welding current and other parameters
5. Displays of welding current and other parameters (A, V, s, mm)
6. Selection of welding parameter to be regulated (arrow button to the left / to the right,
focusing (RETURN))
7. Figure indicating selection of welding parameter: HOT START, A, ARC FORCE
• Hot start regulation (HOT START)
• Welding current (A)
• Arc force control dynamics (ARC FORCE)
8. Selection of remote control / SETUP function
9. Memory functions
11
Master, MasterTig, MasterCool 10 / © Kemppi Oy / 1112
