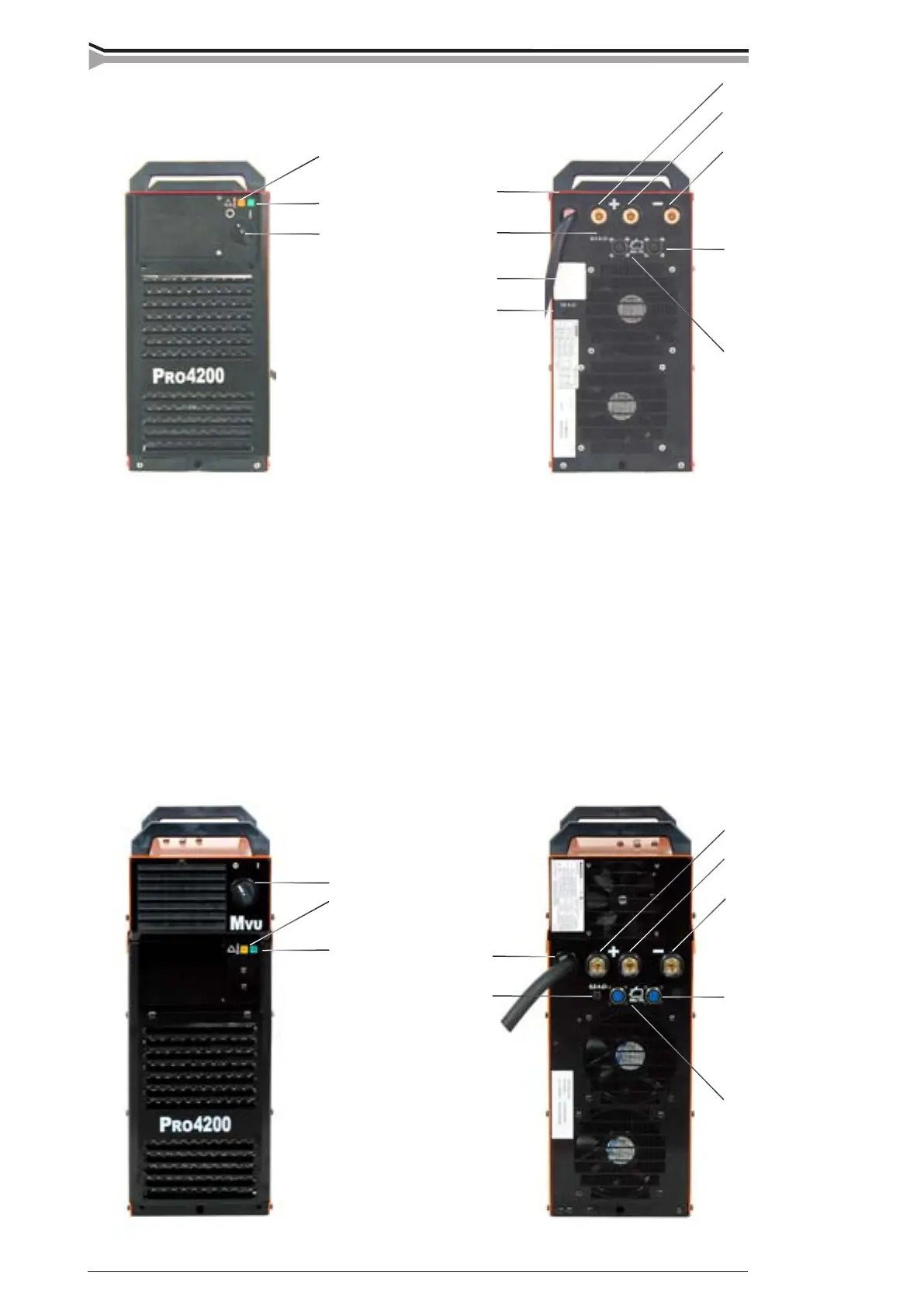

1.2.1. Operation control and connectors
F11 Fuse for connetion for control table 6,3 A delayed
H11 Signal lamp I/O
H12 Warning lamp for thermal protection
S11 Main switch I/O
X11, Welding connection parallel
X12
X13 Earth connection
X14, Connection for control cable parallel
X15
01 Inlet of mains cable
02 Inspection cover for control panel PL, PX Accessories
X16 Socket outlet Fuse 230 V, 250 VA
F12 Fuse for socket outlet 1,0 A delayed
pro evolutIon
pro evolutIon mvu
