2. InstallatIon
2.1. sItIng the machIne

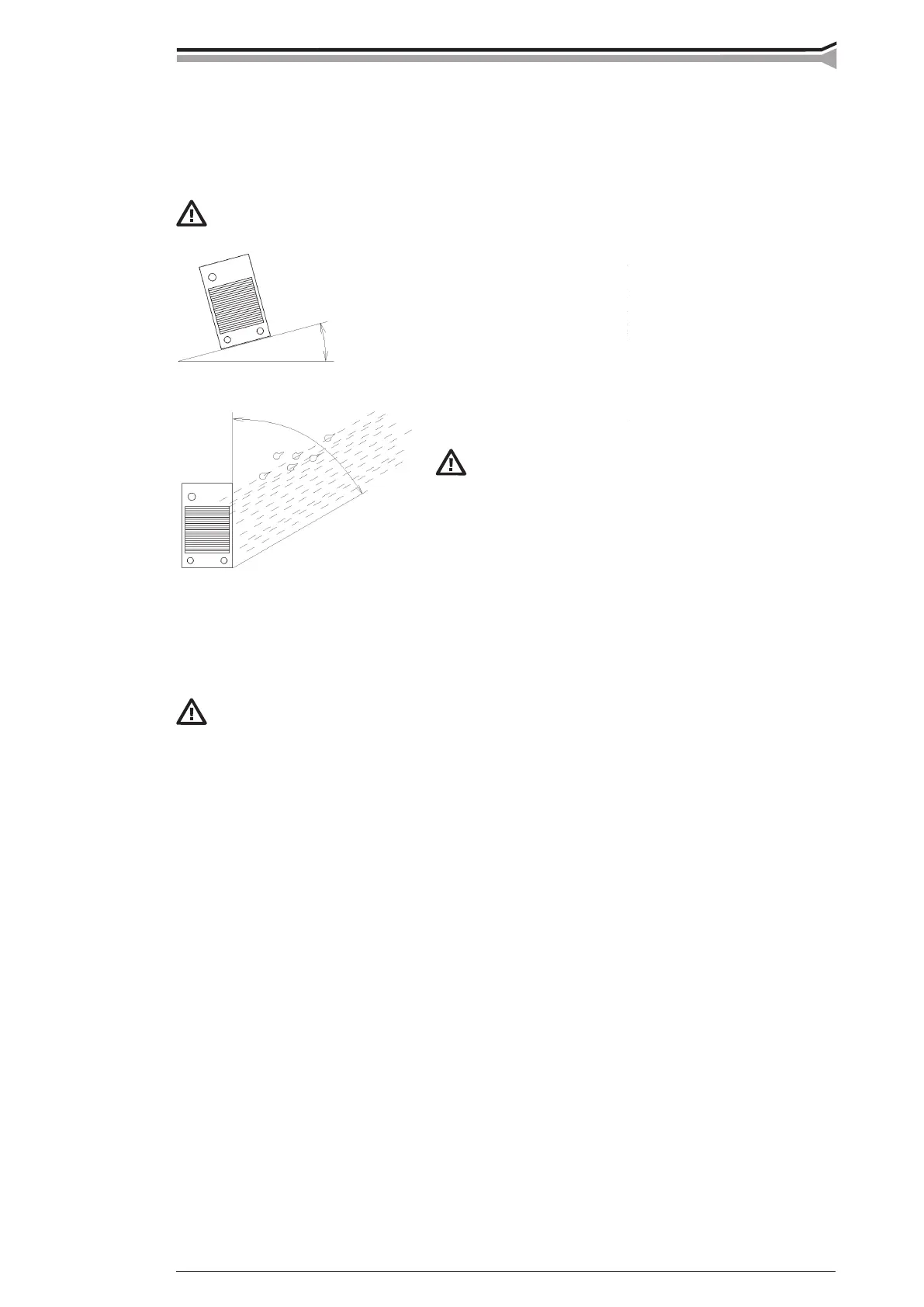

Site the machine on a stationary, horizontal, dry base in a position that does NOT
 allowdust,dirtormetalparticlestoenterthemachinescoolingairow.
- Preferably site the machine somewhat higher above the
oor level.
- Ensure that the front as well as the rear of the machine
there is at least 20 cm free distance to allow good
circulation of the cooling air through the machine.
- Protect the machine against heavy rain and in hot
circumstances against direct sunshine. Ensure the free
circulation of the cooling air.
Degree of protection of machine IP23
allows at its maximum the water spray coming
 in60ºangletohitmachine’soutercovering.
2.2. mountIng the control panels pl and pX
 Mountingofpanelshouldonlybecarriedoutbycompetentelectrician.
 Attention!Disconnectplugofmachinefrommainssocketandwaitforapprox.2min
 beforeremovingcoverplate.
- On the front face of machine there is a cover plate where the control panel is mounted.
Without a panel the machine is controlled either from remote control unit or Promig
or Protig unit.
- Mount PL or PX panel according to mounting instructions delivered with them.
2.2.1. Connection to the mains supply
Kemppi Pro Evolution power sources are delivered equipped with 5 m mains cable without plug.
If local electricity regulations of operating country are stating otherwise, the mains cable should be
replaced in conformity with the local regulations.
Connection of the mains cable, mounting and change of the plug should only be carried out by a
competent electrician.
Remove the machine’s right side plate to enable the mounting of a mains cable.
See to that the machine is positioned away from the line of
particle spray, created by grinding tools etc.
rain water
