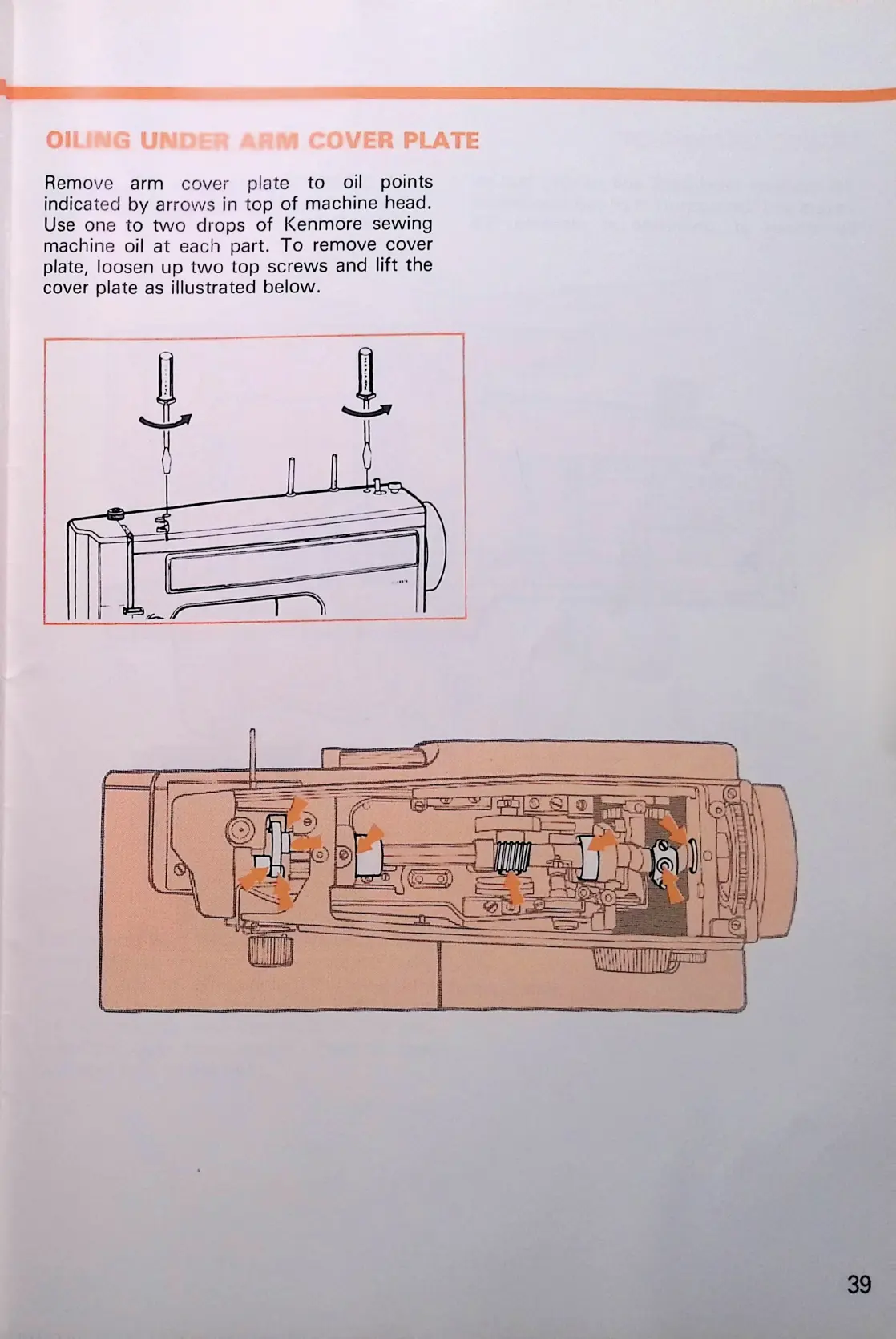

Kenmore 1350 - Oiling

Remove arm cover plate to oil points
indicated by arrows in top of machine head.
Use one to two drops of Kenmore sewing
machine oil at each part. To remove cover
plate, loosen up two top screws and lift the
cover plate as illustrated below.
39
