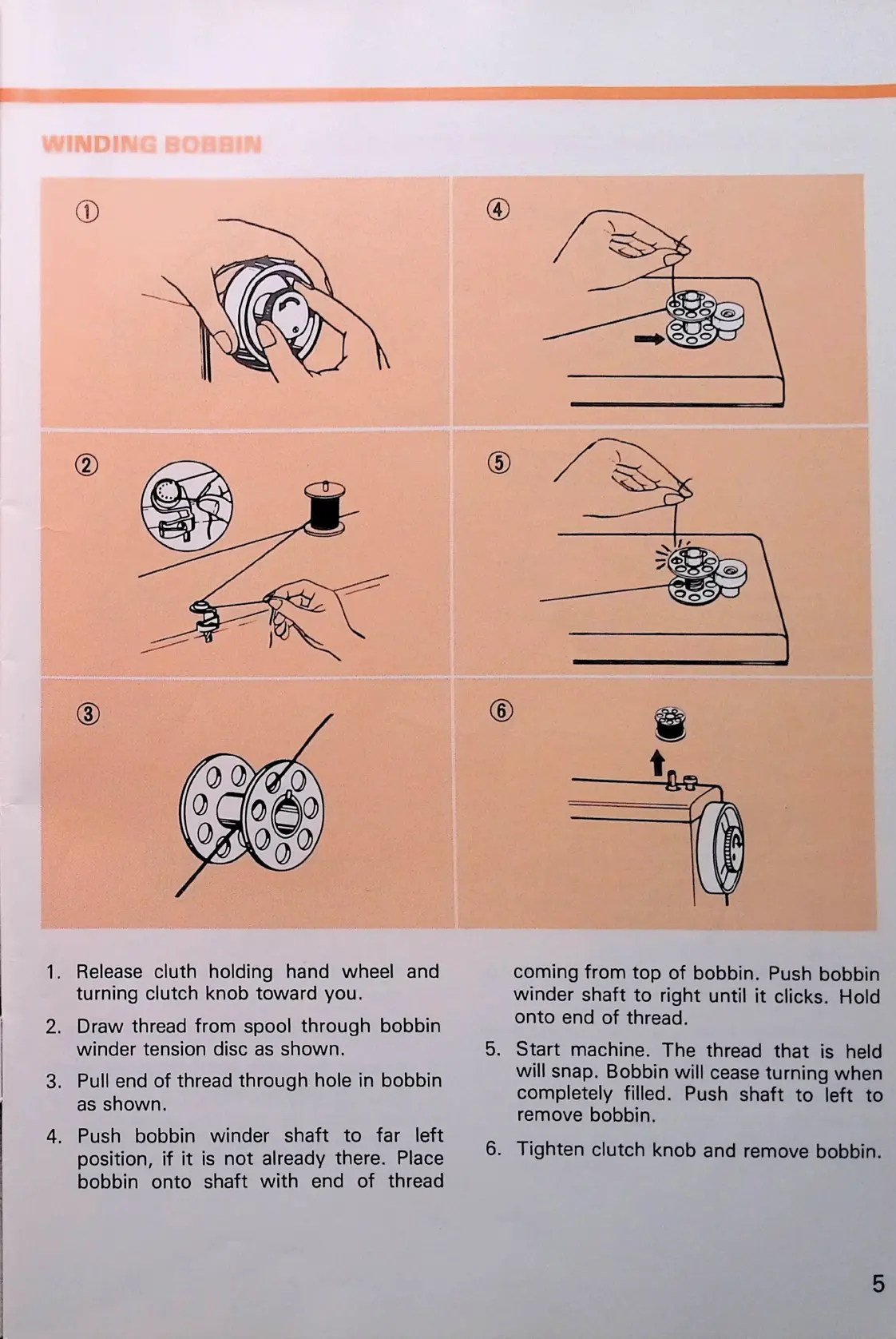

1.
Release
cluth
holding
hand
wheel
and
turning
clutch
knob
toward
you.
2.
Draw
thread
from
spool
through
bobbin
winder
tension
disc
as
shown.
3.
Pull
end
of
thread
through
hole
in
bobbin
as
shown.
4.
Push
bobbin
winder
shaft
to
far
left
position,
if
it
is
not
already
there.
Place
bobbin
onto
shaft
with
end
of
thread
coming
from
top
of
bobbin.
Push
bobbin
winder
shaft
to
right
until
it
clicks.
Hold
onto
end
of
thread.
5.
Start
machine.
The
thread
that
is
held
will
snap.
Bobbin
will
cease
turning
when
completely
filled.
Push
shaft
to
left
to
remove
bobbin.
6.
Tighten
clutch
knob
and
remove
bobbin.
5
