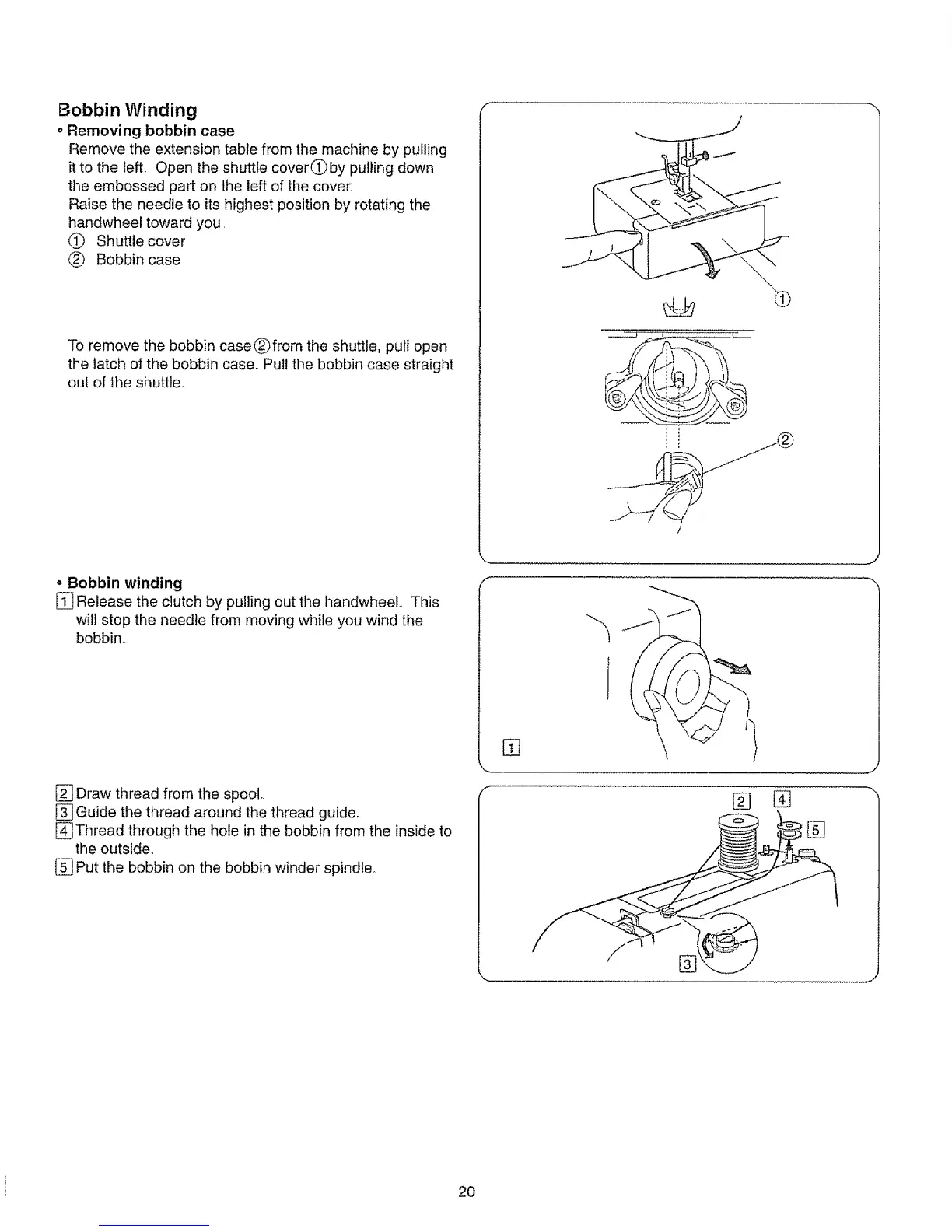

Bobbin Winding
Removing bobbin case
Remove the extension table from the machine by pulling
it to the left, Open the shuttle cover(_by pulling down
the embossed part on the left of the cover
Raise the needle to its highest position by rotating the
handwheel toward you,
(_) Shuttle cover
(_) Bobbin case
To remove the bobbin case (_) from the shuttle, pull open
the latch of the bobbin case., Pull the bobbin case straight
out of the shuttle°
• Bobbin winding
[] Release the clutch by pulling out the handwheeL This
wilt stop the needle from moving while you wind the
bobbin.,
[_ Draw thread from the spool,
[_[]Guide the thread around the thread guider
[_Thread through the hole in the bobbin from the inside to
the outside.
[] Put the bobbin on the bobbin winder spindle,.
f
[]
/
O
J
[] [] -,
%
[]
2O
