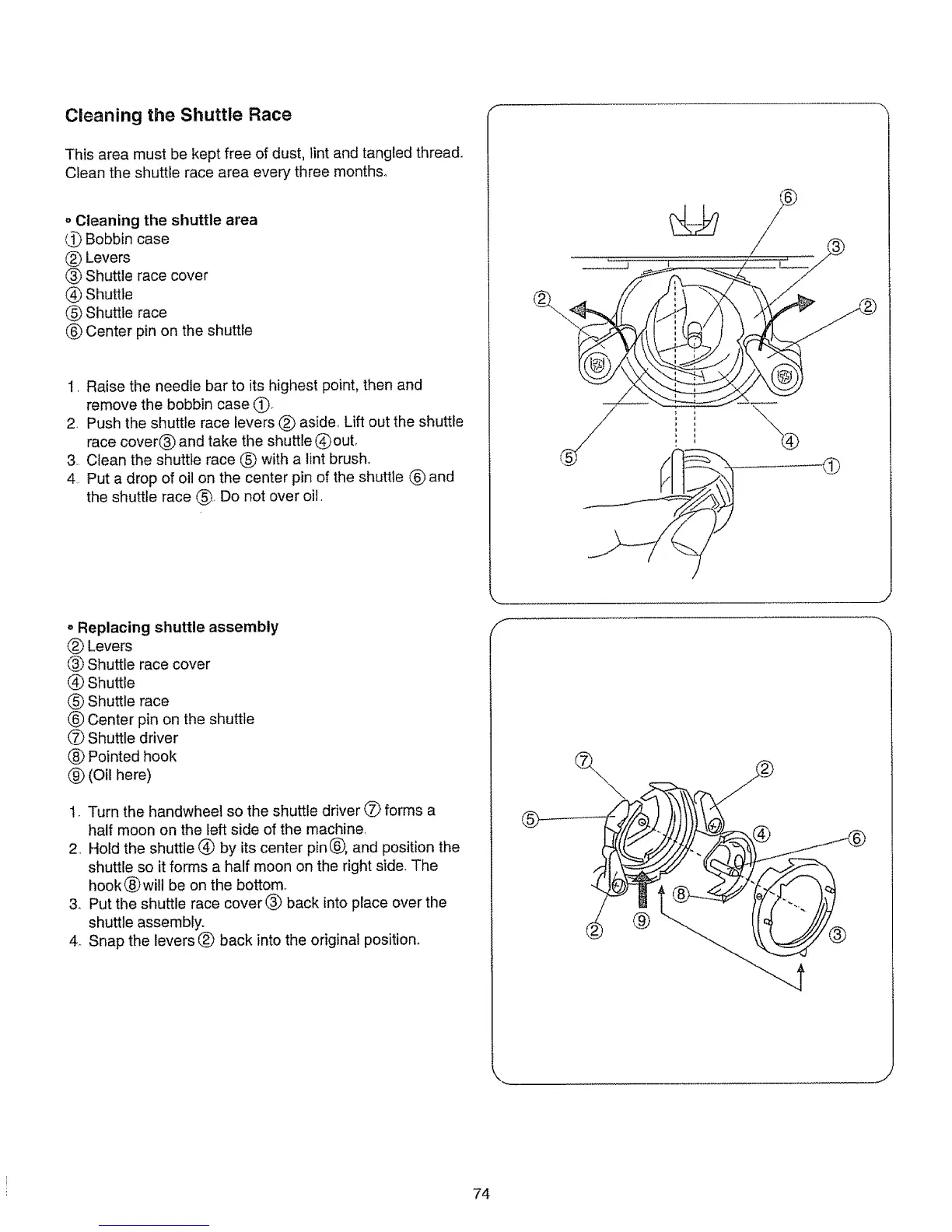

Kenmore 385.15212 - Cleaning the Shuttle Race; Cleaning the Shuttle Area; Replacing Shuttle Assembly

Cleaning the Shuttle Race
This area must be kept free of dust, lint and tangted thread,
Clean the shuttle race area every three months+
o Cleaning the shuttle area
_1_Bobbin case
(_ Levers
(_) Shuttle race cover
@ Shuttle
(_ Shuttle race
(_) Center pin on the shuttle
1 Raise the needle bar to its highest point, then and
remove the bobbin case (_+
2 Push the shuttle race levers (_ aside+ Lift out the shuttle
race cover(_) and take the shuttte (_out,
3 Clean the shuttle race (_ with a lint brush+
4 Put a drop of oil on the center pin of the shuttle (_ and
the shuttle race (_)+Do not over oil
o Replacing shuttle assembly
(_ Levers
Shuttle race cover
(_ Shuttle
(_) Shuttle race
(_) Center pin on the shuttle
(_ Shuttle driver
(_ Pointed hook
(_ (Oil here)
1, Turn the handwheel so the shuttle driver (_ forms a
half moon on the left side of the machine
2 Hold the shuttle (_ by its center pin(_, and position the
shuttle so it forms a half moon on the right side, The
hook(_will be on the bottom.
3. Put the shuttle race cover (_ back into place over the
shuttle assembly.
4+ Snap the levers (_) back into the original position+
