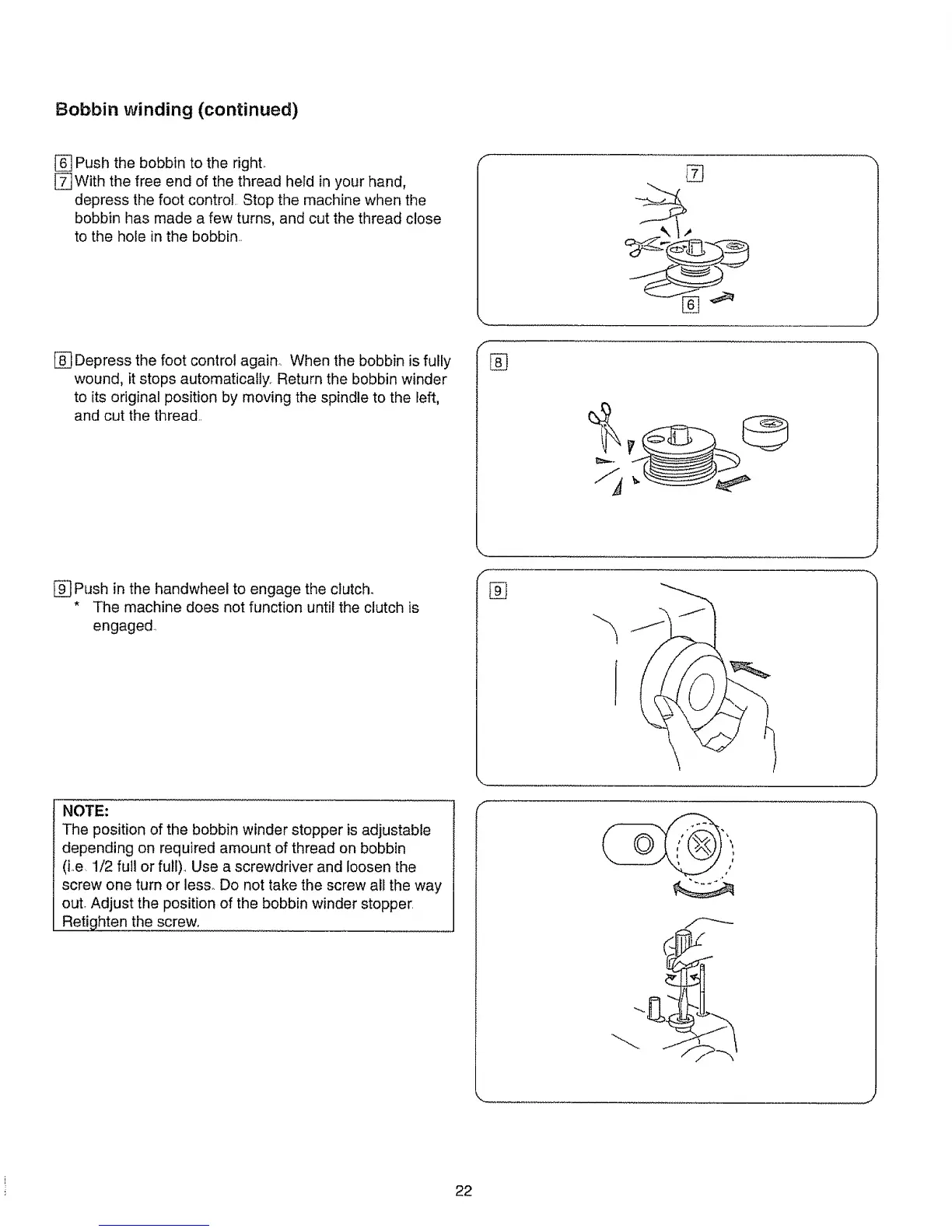

Bobbin winding (continued)
[] Push the bobbin to the right.
[] With the free end of the thread held in your hand,
depress the foot control. Stop the machine when the
bobbin has made a few turns, and cut the thread close
to the hole in the bobbin..
[] Depress the foot control again. When the bobbin is fully
wound, it stops automatically_. Return the bobbin winder
to its original position by moving the spindle to the left,
and cut the thread..
f
[]
[]
J
[] Push in the handwheel to engage the ctutch_
* The machine does not function until the clutch is
engaged.
NOTE:
The position of the bobbin winder stopper is adjustable
depending on required amount of thread on bobbin
(Le. 1/2 full or full).. Use a screwdriver and loosen the
screw one turn or less. Do not take the screw all the way
out. Adjust the position of the bobbin winder stopper.
Retighten the screw.
f
[]
f
J
22
