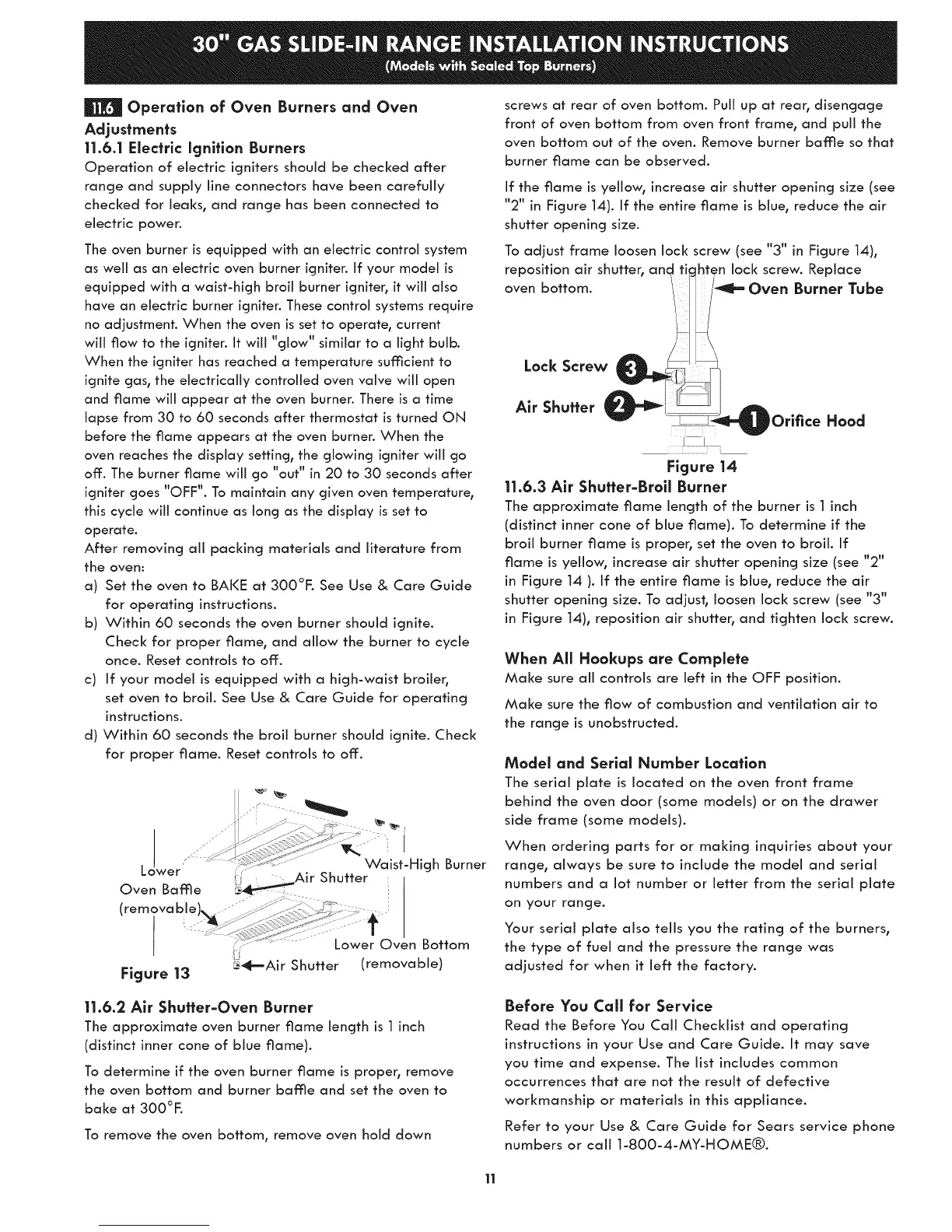

Operation of Oven Burners and Oven
Adjustments
11.6.1 Electrlc ignition Burners
Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks, and range has been connected to
electric powen
The oven burner is equipped with an electric control system
as well as an electric oven burner ignJten If your model is
equipped with a waist-high broil burner igniter, it will also
have an electric burner igniter. These control systems require
no adjustment. When the oven is set to operate, current
will flow to the igniter. It will "glow" similar to a light bulb.
When the igniter has reached a temperature sumcient to
ignite gas, the electrically controlled oven valve will open
and flame will appear at the oven burner. There is a time
lapse from 30 to 60 seconds after thermostat is turned ON
before the flame appears at the oven burner. When the
oven reaches the display setting, the glowing igniter will go
off. The burner flame will go "out" in 20 to 30 seconds after
igniter goes "OFF". To maintain any given oven temperature,
this cycle will continue as long as the display is set to
operate.
After removing all packing materials and literature from
the oven:
a) Set the oven to BAKE at 300°F. See Use & Care Guide
for operating instructions.
b) Within 60 seconds the oven burner should ignite.
Check for proper flame, and allow the burner to cycle
once. Reset controls to off.
c) If your model is equipped with a high-waist broiler,
set oven to broil. See Use & Care Guide for operating
instructions.
d) Within 60 seconds the broil burner should ignite. Check
for proper flame. Reset controls to off.
k!wer _
Oven Baffle
(remivable
Figure 13
//
Waist-High Burner
_.5._._Ai r Shutter
Lower Oven Bottom
_;_-"Ai r Shutter (removable)
screws at rear of oven bottom. Pull up at rear, disengage
front of oven bottom from oven front frame, and pull the
oven bottom out of the oven. Remove burner baffle so that
burner flame can be observed.
If the flame is yellow, increase air shutter opening size (see
"2" in Figure 14). If the entire flame is blue, reduce the air
shutter opening size.
To adjust frame loosen loci< screw (see "3" in Figure 14),
reposition air shutter, anc_ fi ._nloci< screw. Replace
oven bottom. Burner Tube
Lock Screw
Air Shutter
tOrifice Hood
Figure 14
11.6.3 Air Shutter=Broil Burner
The approximate flame length of the burner is 1 inch
(distinct inner cone of blue flame). To determine if the
broil burner flame is proper, set the oven to broil. If
flame is yellow, increase air shutter opening size (see "2"
in Figure 14 ). If the entire flame is blue, reduce the air
shutter opening size. To adjush loosen lock screw (see "3"
in Figure 14), reposition air shutter, and tighten lock screw.
When All Hookups are Complete
Make sure all controls are left in the OFF position.
Make sure the flow of combustion and ventilation air to
the range is unobstructed.
Model and Serlal Number Location
The serial plate is located on the oven front frame
behind the oven door (some models) or on the drawer
side frame (some models).
When ordering parts for or making inquiries about your
range, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your range.
Your serial plate also tells you the rating of the burners,
the type of fuel and the pressure the range was
adjusted for when it left the factory.
11.6.2 Air Shutter=Oven Burner
The approximate oven burner flame length is 1 inch
(distinct inner cone of blue flame).
To determine if the oven burner flame is proper, remove
the oven bottom and burner baffle and set the oven to
bake at 300°1:.
To remove the oven bottom, remove oven hold down
Before You Call for Service
Read the Before You Call Checklist and operating
instructions in your Use and Care Guide. It may save
you time and expense. The list includes common
occurrences that are not the result of defective
workmanship or materials in this appliance.
Refer to your Use & Care Guide for Sears service phone
numbers or call 1-800-4-MY-HOME®.
11
