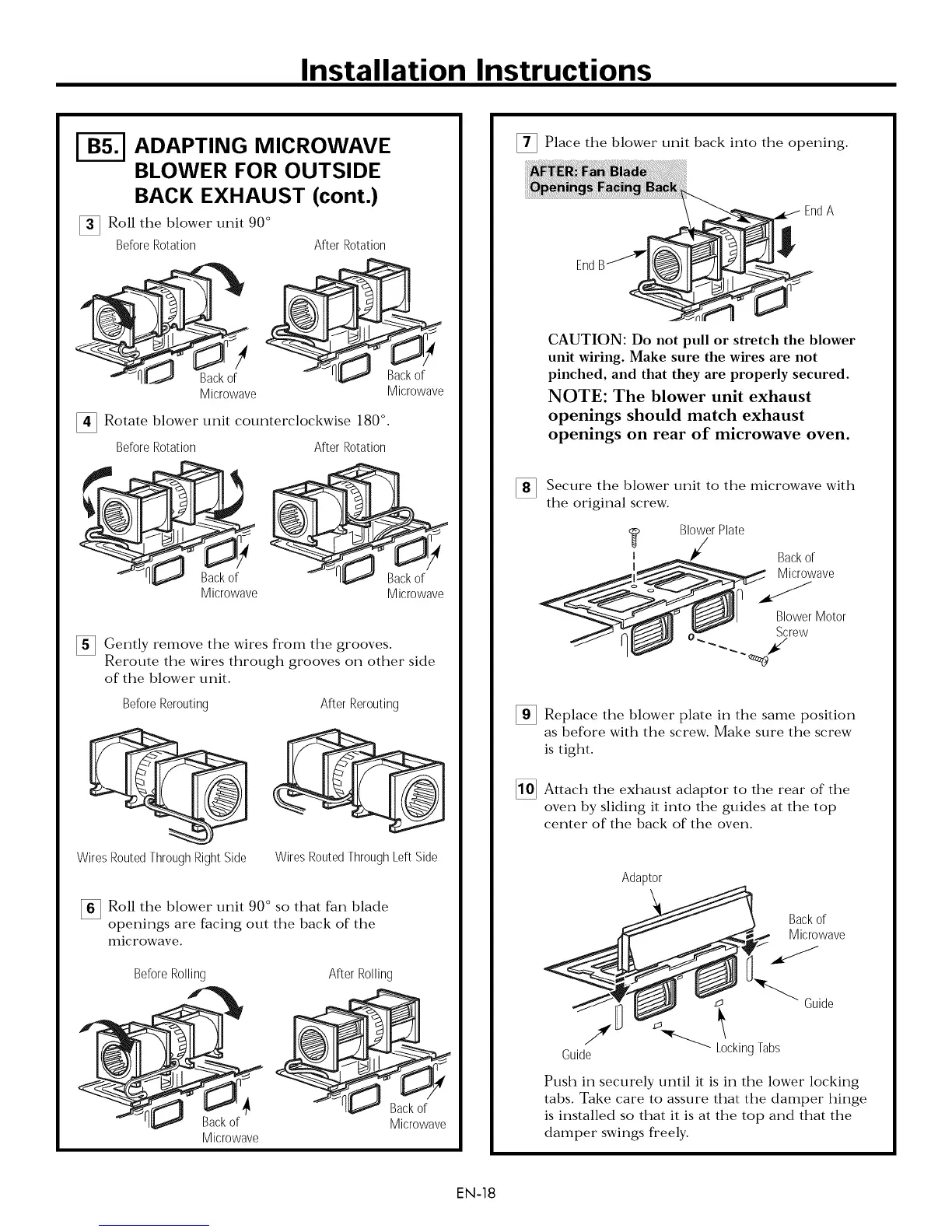

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
[] Roll the blower" unit 90 °
Before Rotation After Rotation
Microwave
Backof
Microwave
Rotate blower unit counterclockwise 180 ° .
Before Rotation
Back of
Microwave
After Rotation
Microwave
[]Gently remove the wires from the
grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed ThroughRight Side Wires Routed Through Left Side
_6_ Roll the blower unit 90 ° so that fan blade
openings are facing out the back of the
microwave.
Before Rolling
Microwave
After Rolling
Back of
Microwave
[]Place the blower unit back into the opening.
EndA
End
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched, and that they are properly secured.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
[ ecure the blower unit to the microwave with
the original screw.
_, Blower Plate
I _ Back of
,11_ Microwave
Blower Motor
Screw
[]Replace the blower in theplate
same
position
as before with the screw. Make sure the screw
is tight.
[]Attach the exhaust the of theadaptor
to Fear
oven by sliding it into the guides at the top
center of the back of the oven.
Adaptor
Backof
Microwave
o
Locking Tabs
Guide
Guide
Push in securely until it is in the lower locking
tabs. Take care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely.
EN-18
