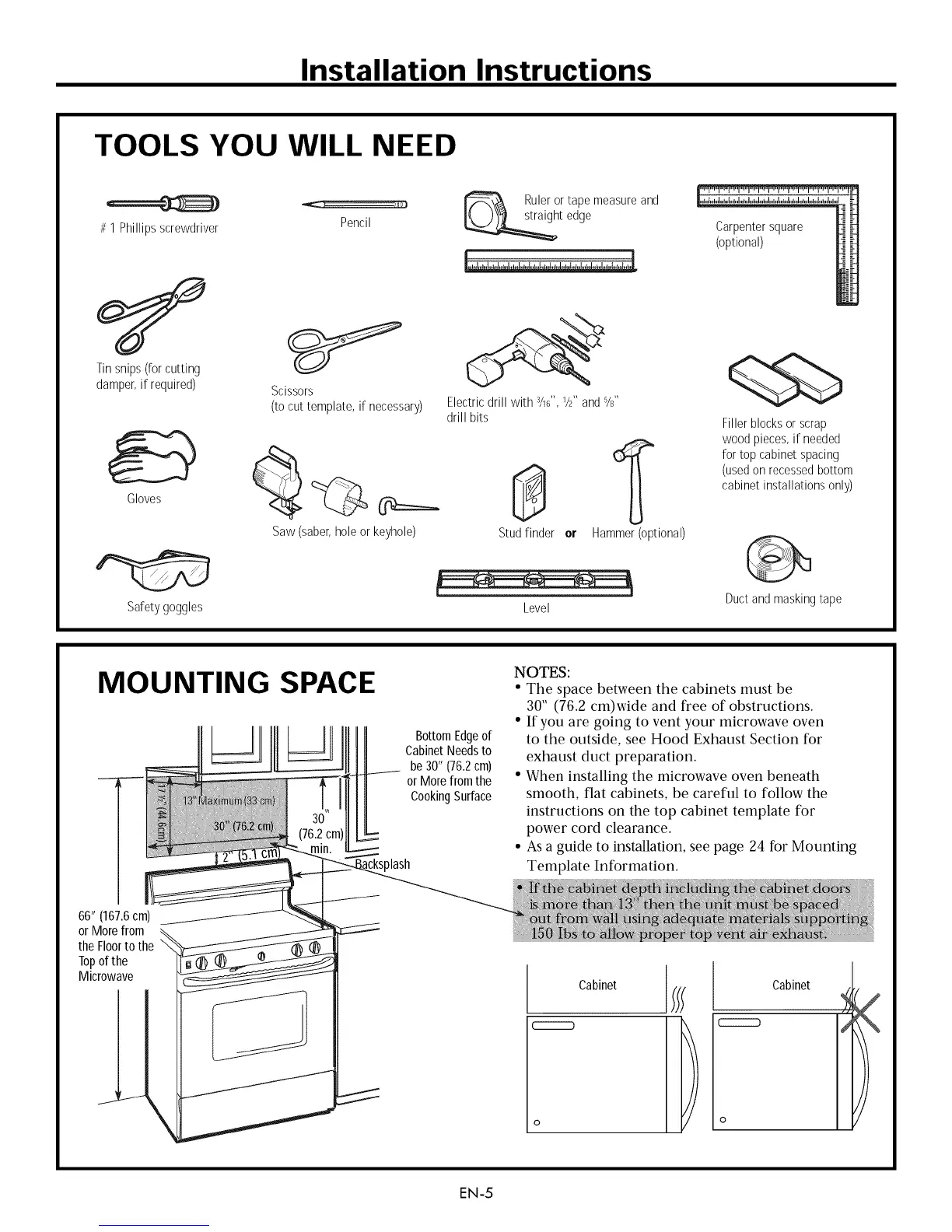

Installation Instructions
TOOLS YOU WILL NEED
# 1 Phillipsscrewdriver
f
Tinsnips(forcutting
damper,if required)
Gloves
Safetygoggles
Pencil
Scissors
(to cut template,if necessary)
din:=
Saw (saber,holeor keyhole)
Ruleror tapemeasureand
t edge
Electricdrill with s/16",1/2"and%"
drill bits
Studfinder or Hammer(optional)
Level
Carpentersquare
(optional)
Fillerblocksor scrap
woodpieces,if needed
for top cabinetspacing
(usedonrecessedbottom
cabinetinstallationsonly)
Ductandmaskingtape
MOUNTING SPACE
J
3O
_12cm)
mlrl.
BottomEdgeof
CabinetNeedsto
be30"(76.2cm)
or Morefromthe
CookingSurface
)lash
NOTES:
• The space between the cabinets must be
30" (76.2 cm)wide and free of obstructions.
• If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
• As a guide to installation, see page 24 for Mounting
Template Information.
66" (167.6cm)
or Morefrom
the Floorto the
Topof the
Microwave
x
Cabinet Cabinet
EN-5
