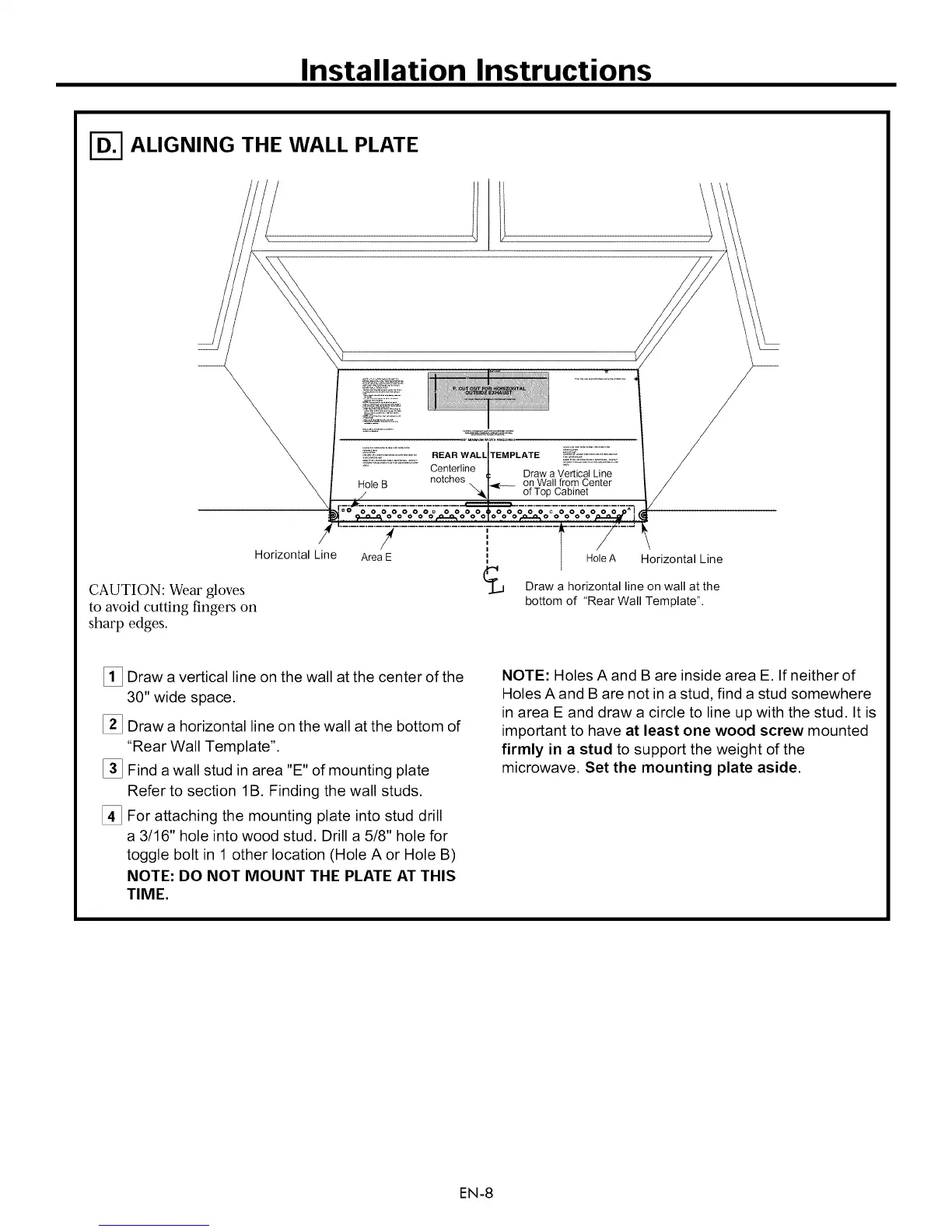

Installation Instructions
ALIGNING THE WALL PLATE
Centerline Draw a Vertical Line
Hole B notches on Wall from Center
of Top Cabinet
Horizontal Line
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
!
Area E
HoleA Horizontal Line
Draw a horizontal line on wall at the
bottom of "Rear Wall Template".
_!_ Draw a vertical line on the wall at the center of the
30" wide space.
L_JDraw a horizontal line on the wall at the bottom of
"Rear Wall Template".
[_ Find a wall stud in area "E" of mounting plate
Refer to section lB. Finding the wall studs.
For attaching the mounting plate into stud drill
a 3/16" hole into wood stud. Drill a 5/8" hole for
toggle bolt in 1 other location (Hole A or Hole B)
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
NOTE: Holes A and B are inside area E. If neither of
Holes A and B are not in a stud, find a stud somewhere
in area E and draw a circle to line up with the stud. It is
important to have at least one wood screw mounted
firmly in a stud to support the weight of the
microwave. Set the mounting plate aside.
EN-8
