Identifying Status Information
Monitor the touch-panel-display, LED activity and sounder operation to determine status conditions of the
Taktis Fire Control Panel.
A
B C D

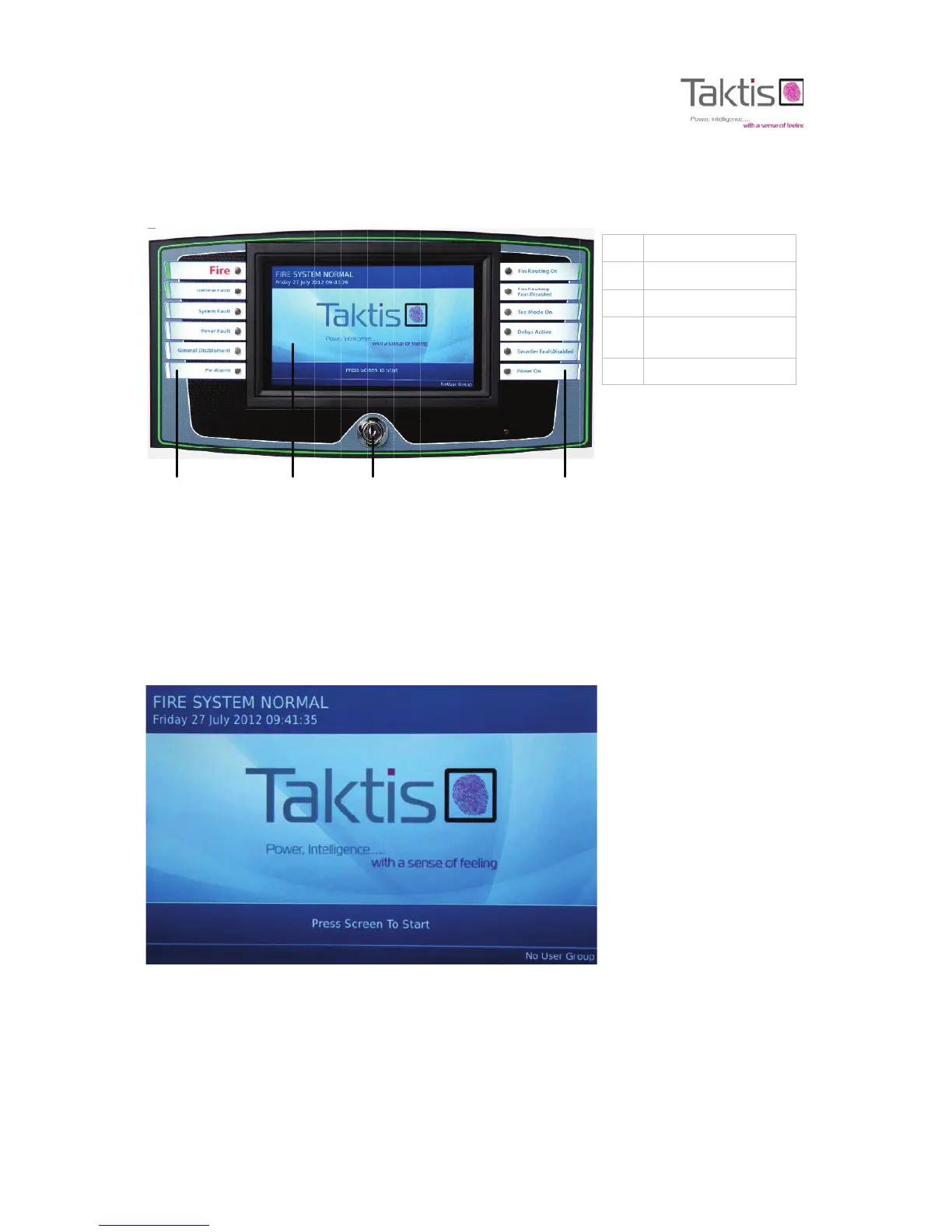

Status information of the Taktis Fire Control Panel can include the Fire System Normal condition, Evacuate,
Fire, Alert, Tech Alarm, Security and Fault condition. Status information is reported by LED indicators as well
as by the internal buzzer and the touch-panel-display of the fire control panel.
Fire System Normal
The Fire System Normal condition is visible on the touch-panel-display when there are no active events
reported to the Taktis Fire Control Panel.
Key Description
A
Left LED Indicators
B
Touch-Panel-Display
C
Access Control
Keyswitch
D
Right LED Indicators
