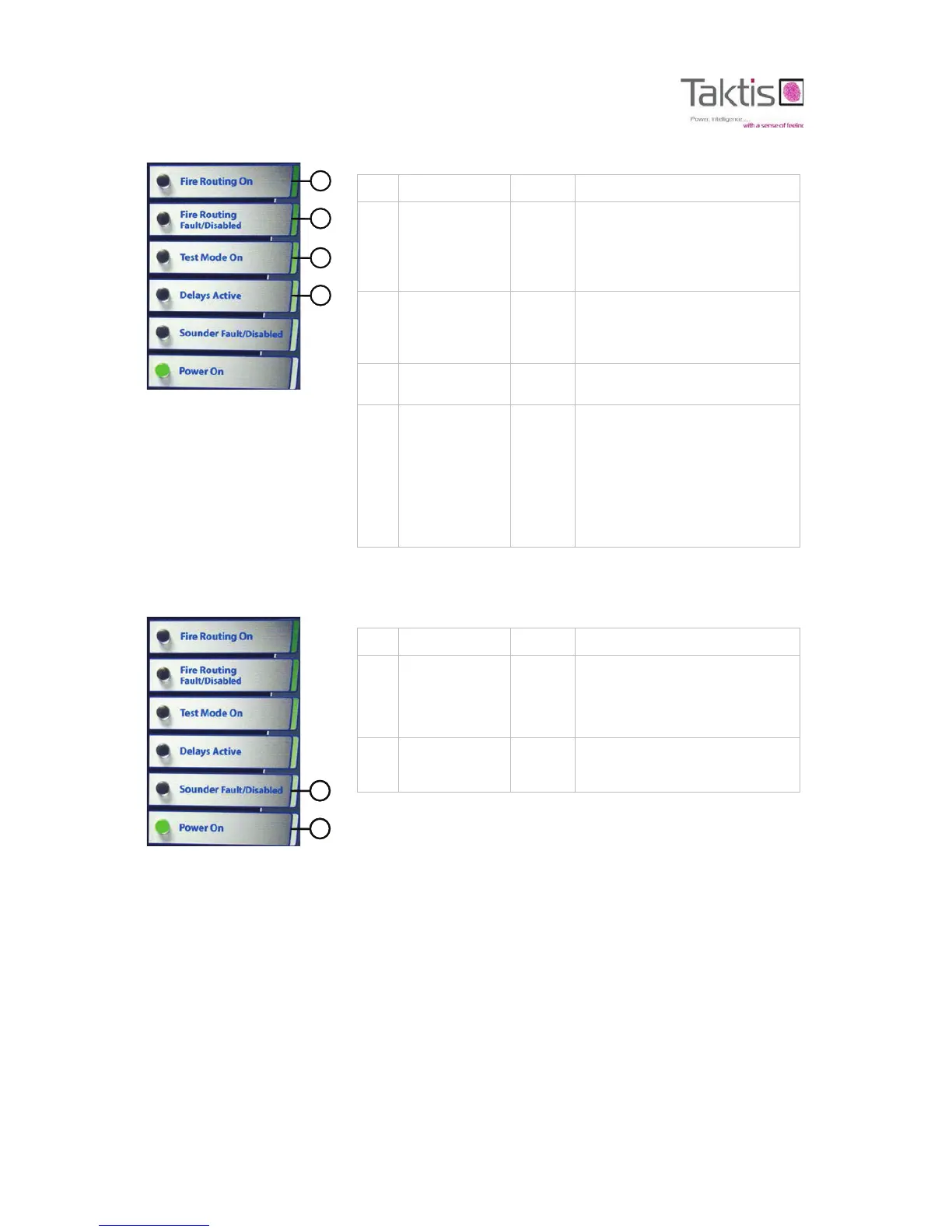

Key LED Colour Description
A
Fire Routing On Amber Signals have been sent to remote fire
alarm transmission equipment or a
confirmation signal has been
returned from the remote alarm
signal transmission equipment.
B
Fire Routing
Fault / Disabled
Amber Outputs to remote fire alarm
transmission equipment have been
disabled or a fault condition exists in
the transmission path.
C
Test Mode On Amber One or more zones have been
selected to Test Mode.
D
Delays Active Amber Sounders are delayed during a fire
condition. The Delay Active LED is
flashing and the internal buzzer is
sounding. Press Alarm Silence to
mute and extend the Delay Active
condition. Sounders operate after the
“Delay Active” period if Alarm Silence
is not pressed.
Key LED Colour Description
E
Sounder
Fault/Disabled
Amber This LED lights continuously when a
sounding device or circuit is disabled
and flashes when there is a fault on
one or more sounders.
F
Power On Green Power is being supplied to the
fire control panel.
