Example Fire Condition
A fire condition is reported to the Taktis Fire Control Panel at Zone 12 in the Front Lobby. The internal buzzer
of the fire control panel is sounding and a Fire in Zone window is displayed on the touch-panel-display.
External sounders connected to the fire control panel are activated indicating a fire condition. LED indicators
are illuminated on the fascia to identify a fire condition.
LED Indicators

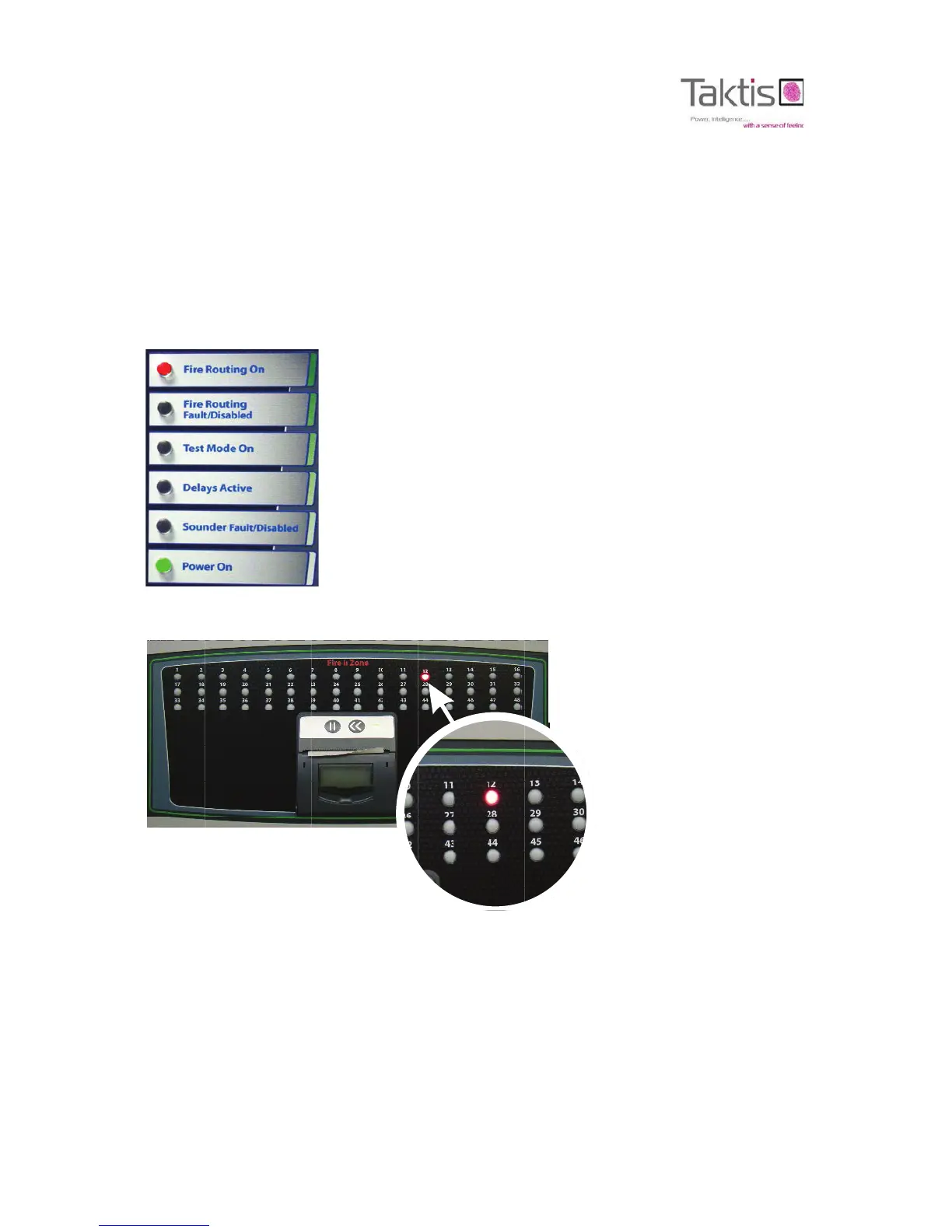

LED indicators for Zone 12, Fire Routing On and Power On are illuminated on the fascia.
LED indicators are lit continuously for Fire Routing On and Power On:
The LED indicator for Zone 12 is flashing:
]
